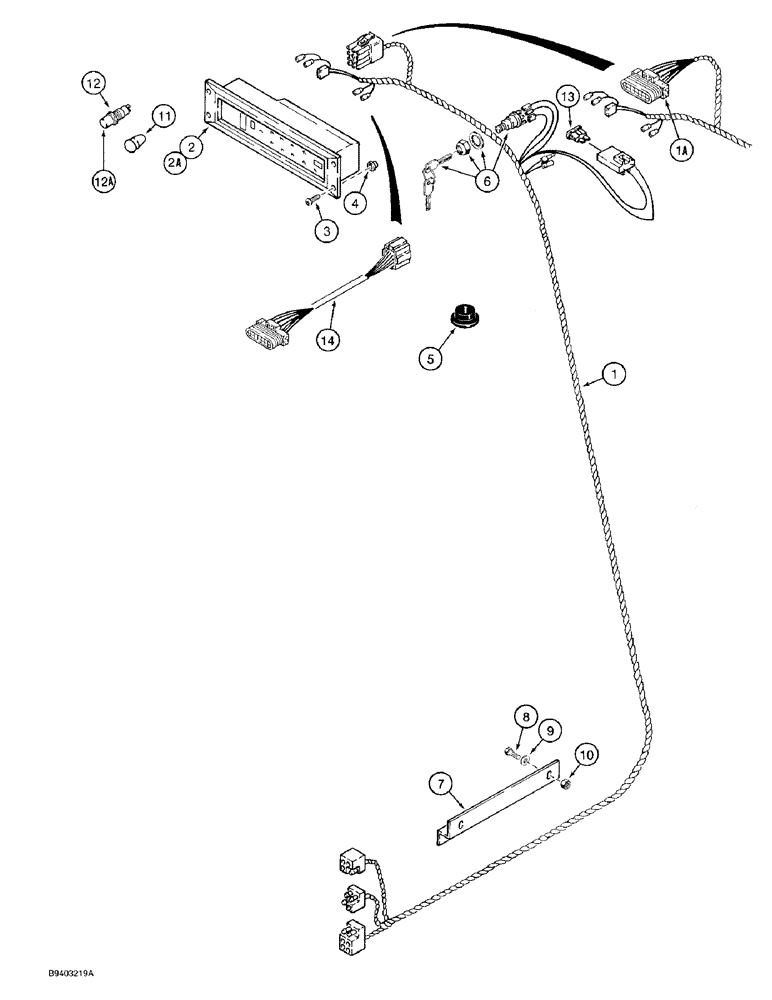

Запчасти Case IH 1825 (4-16) - FRONT HARNESS AND INSTRUMENT CLUSTER, PRIOR TO P.I.N. JAF0096778 (04) - ELECTRICAL SYSTEMS

1

D136819

HARNESS

- front, Serial Range: -JAF0075034

1шт.

1a

H439158

HARNESS

- front, Serial Range: JAF0075034-JAF0096777

1шт.

2

D139479

PANEL, INSTRUMENTS

CLUSTER - instrument, no longer available, order Ref. 2A instrument cluster and Ref. 14 adapter harness for service

1шт.

2a

H438453

PANEL, INSTRUMENTS

CLUSTER - instrument

1шт.

3

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

- machine, pan head Phillips, No. 10 NF x 1 inch

4шт.

4

D122634

ISOLATOR,12.7mm OD x 14.1mm L

RETAINER - mounting screw

4шт.

5

D93716

PLUG,73.mm ID x 88.9mm OD

- 3 inch (76 mm) diameter, plastic

2шт.

6

3107556R92

SWITCH ASSY

SWITCH - ignition, includes two keys, washer and nut, was K203992

1шт.

7

D136931

ANGLE

COVER - front harness

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

2шт.

11

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch, used on gasoline models

1шт.

12

H603852

LIGHT

LAMP - warning, glow plug, used on diesel models, Includes: Ref. 12A

1шт.

12a

114323A1

LENS

E - lamp, red

1шт.

13

A149802

FUSE

- 20 amp

1шт.

14

H439038

HARNESS

- adapter (used with D136819 harness)

1шт.
