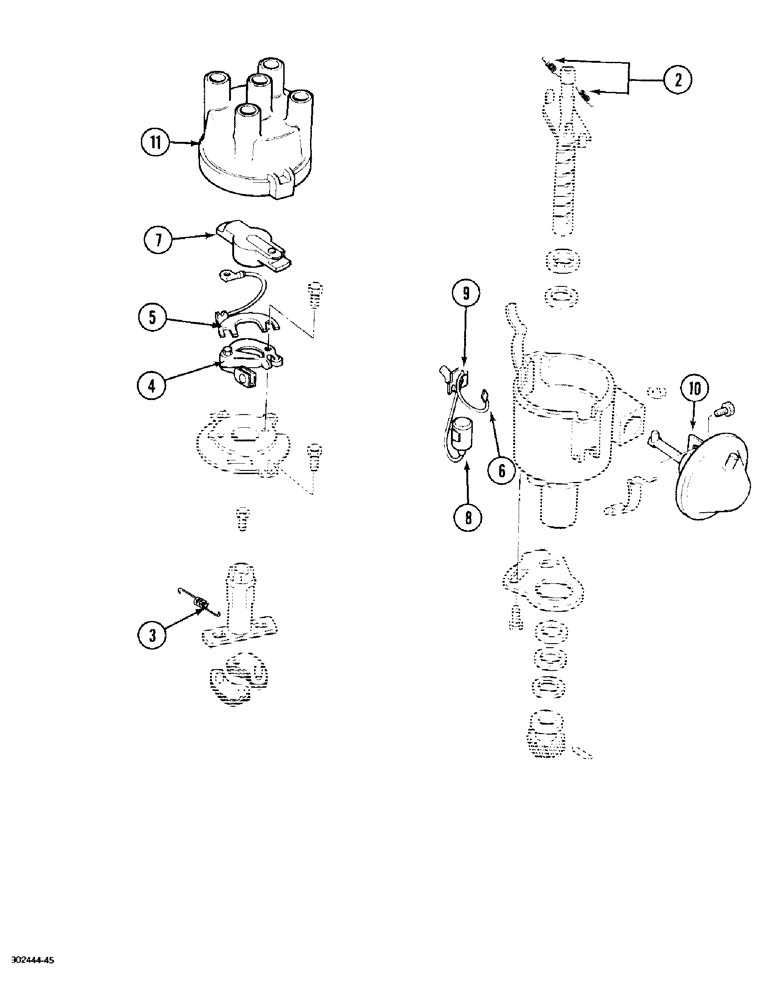

Запчасти Case IH 1825 (4-10) - DISTRIBUTOR, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1972268C1

DISTRIBUTOR

ASSEMBLY - engine, Includes: Ref. 2 - 11

1шт.

2

1972395C1

SPRING

- weight

2шт.

3

1972397C1

SPRING

- hair

1шт.

4

1972269C1

POINT

- breaker

1шт.

5

1959641C1

CABLE RETAINER

HOLDER - distributor

1шт.

6

1959642C1

ELECTRICAL WIRE

LEAD - wire

1шт.

7

1972271C1

ROTOR

- distributor

1шт.

Dealer may have the older part numbers for Ref. 7 and 11 (rotor and cap). These two items should be replaced as a set. An old rotor will not work with a new cap and a new rotor will not work with an old cap. 1/27/98 by DSH of TSG

1шт.

8

1972272C1

CONDENSER

- distributor

1шт.

9

1959643C1

TERMINAL CONNECTOR

TERMINAL - distributor

1шт.

10

1972273C1

UNIT

VACUUM - distributor advance

1шт.

11

1972274C1

CAP

- distributor

1шт.

Dealer may have the older part numbers for Ref. 7 and 11 (rotor and cap). These two items should be replaced as a set. An old rotor will not work with a new cap and a new rotor will not work with an old cap. 1/27/98 by DSH of TSG

1шт.
