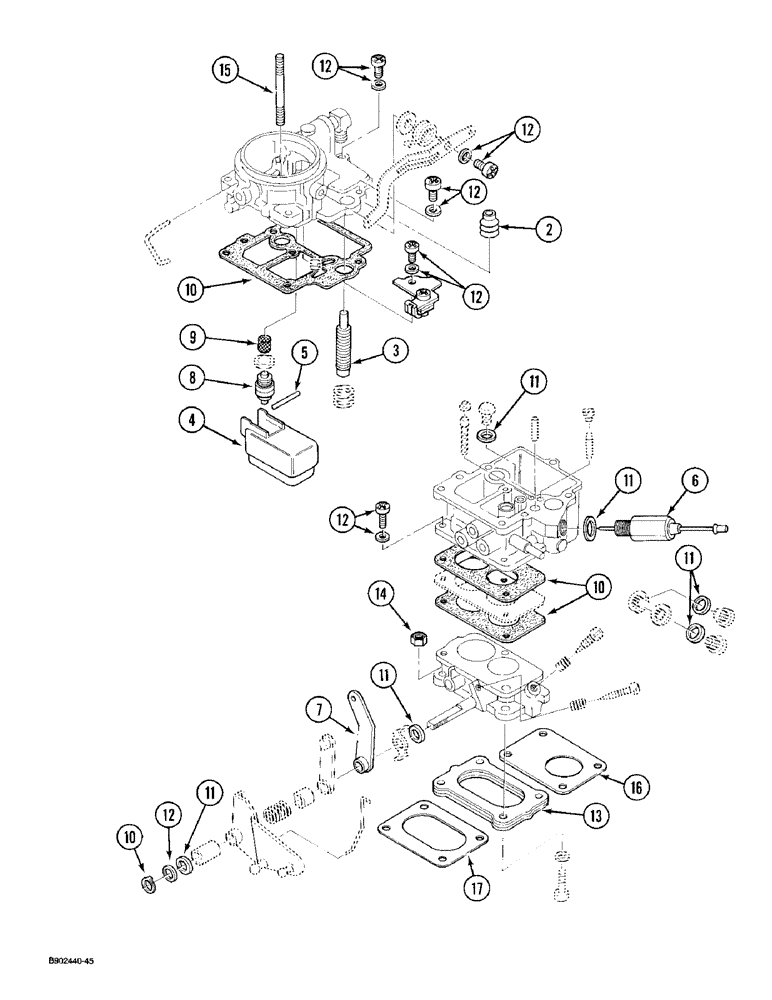

Запчасти Case IH 1825 (3-26) - CARBURETOR, GASOLINE MODELS (03) - FUEL SYSTEM

1972251C1

CARBURETOR

ASSEMBLY - engine, Includes: Ref. 2 - 12

1шт.

2

1972252C1

COVER

- pump

1шт.

3

1972253C1

PISTON

- pump

1шт.

4

1960021C1

FLOAT

- carburetor

1шт.

5

1960022C1

SHAFT

- float

1шт.

6

1972254C1

VALVE

- anti-diesel solenoid

1шт.

7

1960024C1

LEVER

- throttle

1шт.

8

1972255C1

VALVE

- needle

1шт.

9

1972256C1

FILTER

- fuel

1шт.

10

1972257C1

GASKET KIT

- gasket

1шт.

11

1972258C1

KIT

- screw and washer

1шт.

12

1960025C1

KIT

- screw and washer

1шт.

13

1960033C1

GASKET

- carburetor

1шт.

14

1960034C1

NUT

- carburetor mounting stud

4шт.

15

1960035C1

STUD

- air cleaner

1шт.

16

1960036C1

LARGE PLATE

PLATE - orifice

1шт.

17

1960037C1

MANIFOLD GASKET

- orifice, Serial Range: plate-manifold

1шт.
