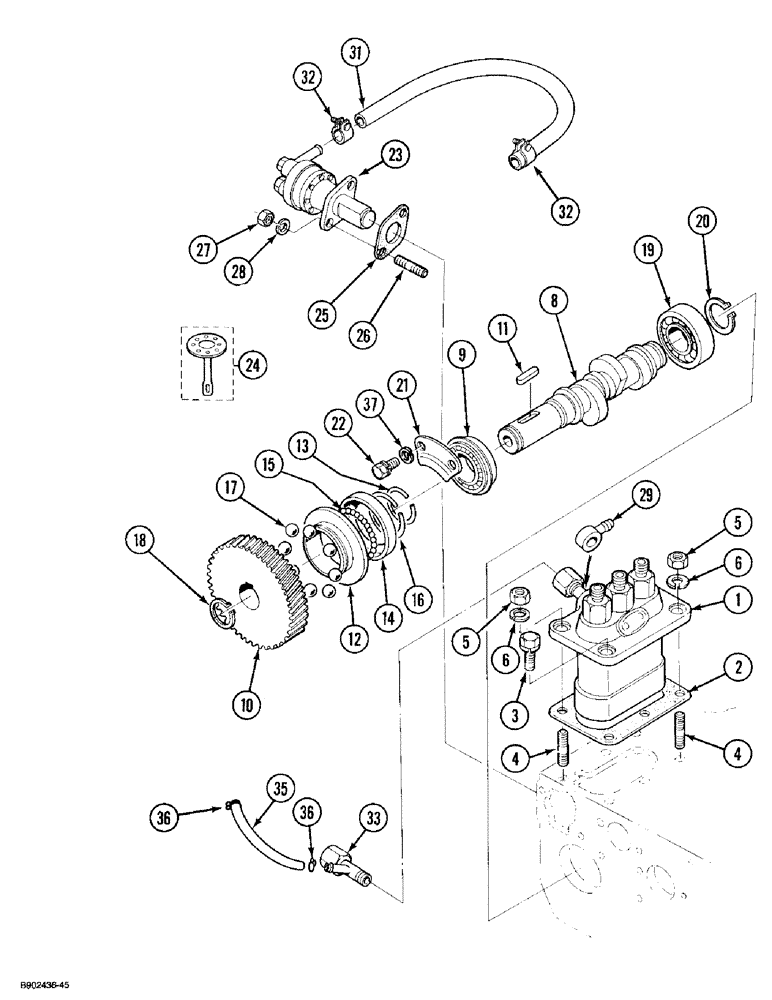

Запчасти Case IH 1825 (3-16) - INJECTION PUMP DRIVE, DIESEL MODELS (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
1959449C1
PUMP
ASSEMBLY - injection, see Fig. 3-20
1шт.
2
1959453C1
SHIM
ASSEMBLY - injection pump, Includes: Ref. 2
1шт.
2
1959454C1
SHIM
- injection pump
2шт.
2
1959455C1
SHIM
- injection pump
3шт.
3
1959456C1
BOLT
- with lock washer, injection pump mounting
4шт.
4
1959265C1
STUD
- 10 mm
2шт.
6
1959171C1
SPRING WASHER
- lock
2шт.
1959469C1
CAMSHAFT
ASSEMBLY - fuel pump drive, Includes: Ref. 8 - 18
1шт.
8
1959470C1
CAMSHAFT
- fuel pump drive
1шт.
9
1959460C1
BALL BEARING
BEARING - ball
1шт.
10
1959471C1
GEAR
- injection pump
1шт.
11
1959462C1
KEY
- feather
1шт.
12
1959463C1
SLEEVE
- governor
1шт.
13
1959464C1
RING, SNAP
RING - retaining, governor sleeve
1шт.
14
1959472C1
CASE
HOUSING - governor ball
1шт.
15
1959466C1
BALL
- small, governor
30шт.
16
1959467C1
RING, SNAP
RING - retaining, governor ball housing
1шт.
17
1959468C1
BALL
- large, governor
8шт.
18
1959308C1
RING, SNAP
RING - snap, external
1шт.
19
1959473C1
BALL BEARING
BEARING - ball
1шт.
20
1959474C1
RING, SNAP
RING - snap, external
1шт.
21
1959475C1
PLATE
- fuel camshaft stop
1шт.
22
1959477C1
BOLT
- with lock washer, stop plate
2шт.
23
1981640C1
PUMP
ASSEMBLY - fuel, Includes: Ref. 24
1шт.
24
1959479C1
DIAPHRAGM
- fuel pump
1шт.
25
1981641C1
GASKET
- fuel pump
1шт.
26
1959481C1
STUD
- fuel pump mounting
2шт.
27
1959205C1
NUT
- stud, 6 mm, fuel pump
2шт.
28
1959206C1
SPRING WASHER
- lock
2шт.
29
1959483C1
FITTING
JOINT - eye
1шт.
1959484C1
PIPE,8 mm ID, 13 mm OD, 190 mm Length
TUBE ASSEMBLY - fuel, Includes: Ref. 31 and 32
1шт.
31
NSS
NOT SOLD SEPARAT
TUBE - fuel
1шт.
32
1959486C1
CLIP
CLAMP - tube, includes hardware
2шт.
33
1959487C1
HEATED GLASS
VALVE - jet start
1шт.
1959488C1
PIPE
TUBE ASSEMBLY - jet start, Includes: Ref. 35 and 36
1шт.
35
NSS
NOT SOLD SEPARAT
TUBE - jet start
1шт.
36
1959490C1
CLAMP
- tube
2шт.
37
1959206C1
SPRING WASHER
- lock
2шт.
Выбрано товаров: 39
