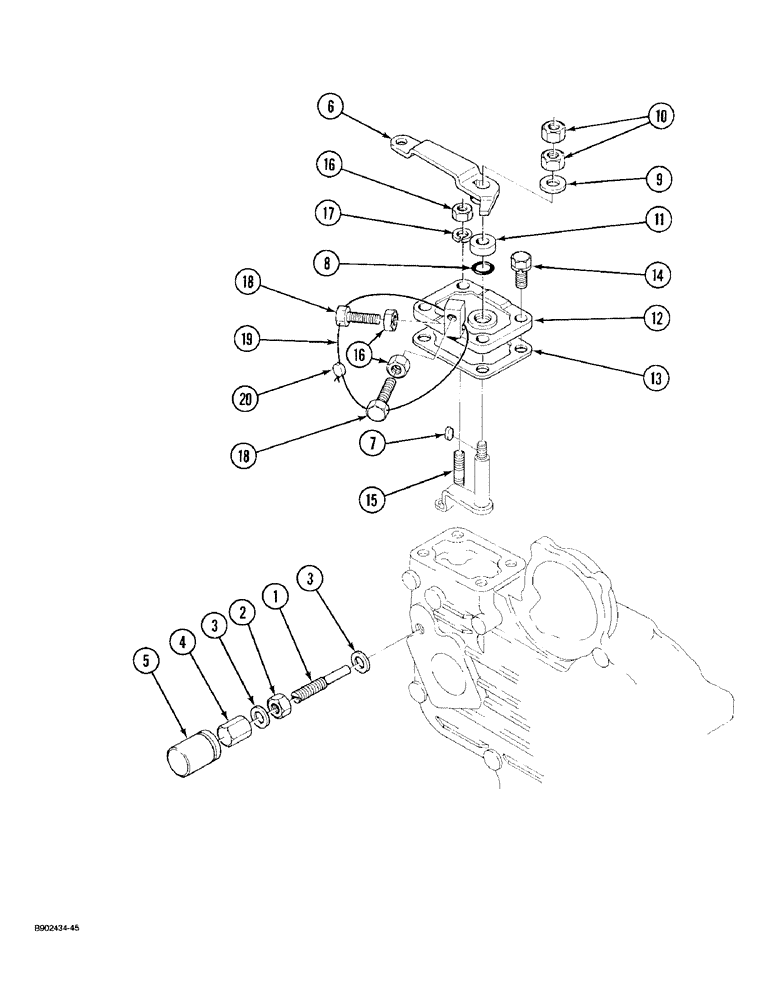

Запчасти Case IH 1825 (3-12) - SPEED CONTROL ASSEMBLY, DIESEL MODELS (03) - FUEL SYSTEM

1

1959401C1

BOLT,M6 x 55mm

- adjusting, 6 x 55 mm

1шт.

2

1959402C1

NUT

- bolt adjusting, 6 mm

1шт.

3

1959403C1

GASKET

- 6 x 10 x 1 mm

2шт.

4

1959404C1

NUT

- cap, 6 mm

1шт.

5

1959405C1

BUSHING

CAP - adjusting nut

1шт.

6

1959406C1

LEVER

- speed control

1шт.

7

1959407C1

KEY

- feather

1шт.

8

1959408C1

O-RING

- plate

1шт.

9

1959409C1

WASHER

- flat, speed control lever

1шт.

10

1959410C1

NUT

- speed control lever

2шт.

11

1959411C1

PLATE

- friction

1шт.

12

1959412C1

PLATE

- speed control

1шт.

13

1981632C1

GASKET

- control plate

1шт.

14

1959215C1

BOLT

- speed control plate

3шт.

15

1959204C1

STUD

- speed control plate

1шт.

16

1959205C1

NUT

- 6 mm

3шт.

17

1959206C1

SPRING WASHER

- lock

1шт.

18

1959339C1

PIN

BOLT - spring return stop, 6 x 30 mm

2шт.

19

NSS

NOT SOLD SEPARAT

WIRE - bolt

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - wire

1шт.
