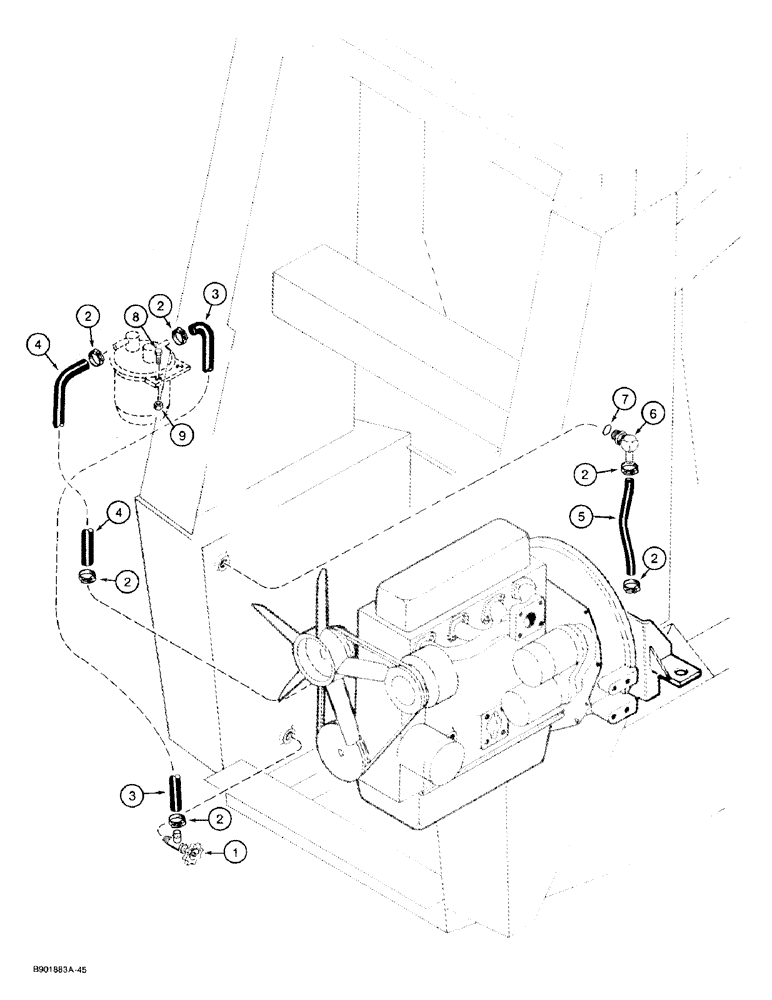

Запчасти Case IH 1825 (3-02) - FUEL FILTER MOUNTING AND FUEL LINES TO ENGINE, DIESEL MODELS (03) - FUEL SYSTEM

1

A154051

COCK, DRAIN

VALVE - fuel shutoff, was H434805

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

6шт.

3

D136265

HOSE,9.5 mm ID x 350.00 mm, SAE 30R7

Reservoir to Fuel Filter, Cut from 1338159C1 Bulk Hose, See Below 9.5 mm ID x 350.00 mm, SAE 30R7

1шт.

4

D136266

HOSE,9.5 mm ID x 450.00 mm, SAE 30R7

Fuel Filter to Engine, Cut from 1338159C1 Bulk Hose, See Below 9.5 mm ID x 450.00 mm, SAE 30R7

1шт.

5

H438360

FUEL HOSE,6.40 mm ID x 650.0 mm, SAE 30R7

Fuel return, Cut from 427683C2 bulk hose, See below 6.40 mm ID x 650.0 mm, SAE 30R7

1шт.

6

217-369

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/2" - 20 Male ORB

ELBOW - 90 deg, 1/4 hose ID x 1/2-20 inch adj O-ring boss, Includes: Ref. 7

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

2шт.

1338159C1

HOSE

- 3/8 (10) x 5/8 inch (16 mm) x 100 ft (16480 mm), bulk

1шт.

427683C2

HYDRAULIC HOSE,6.35 mm ID BULK, SAE 30R6 or SAE 30R7

HOSE - 1/4 (6) x 1/2 inch (13 mm) x 50 ft (8240 mm), bulk

1шт.

7

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
