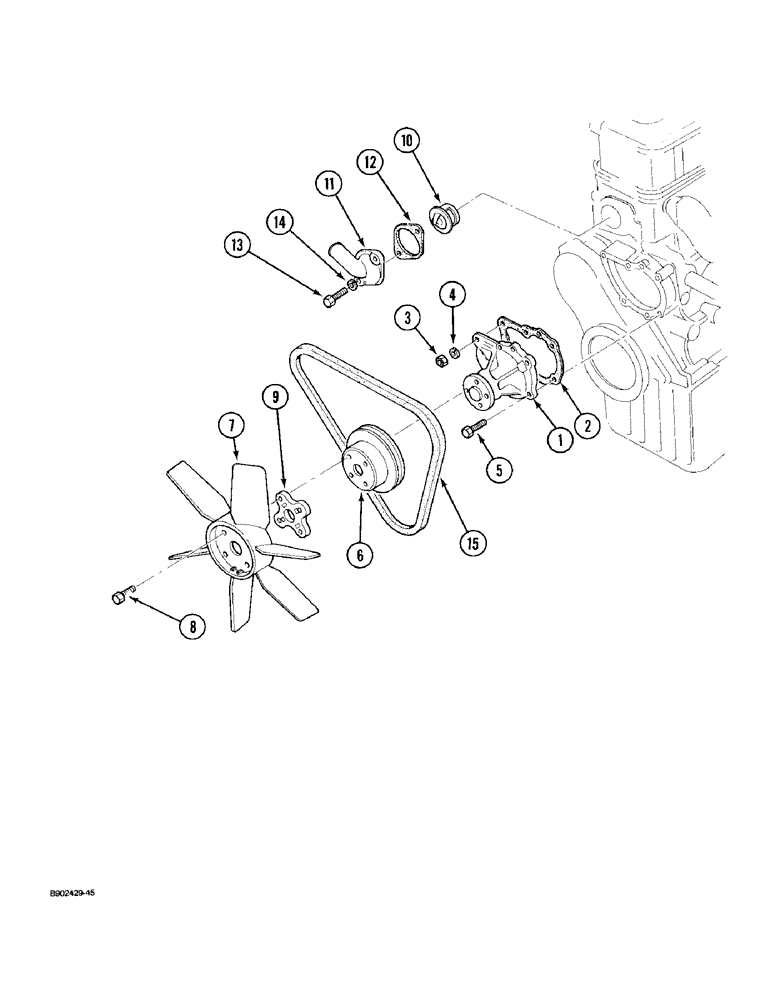

Запчасти Case IH 1825 (2-48) - WATER PUMP, FAN, AND THERMOSTAT, GASOLINE MODELS (02) - ENGINE

1972204C1

PUMP, WATER

PUMP ASSEMBLY - water, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

1972205C1

GASKET

- water pump

1шт.

3

825-1408

NUT,M8, Cl 8

3шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

5шт.

5

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8)

2шт.

6

1972206C1

PULLEY

- fan and water pump

1шт.

7

1972278C1

FAN

- cooling

1шт.

8

1972335C1

BOLT

- fan mounting

4шт.

9

1972208C1

SPACER

- fan

1шт.

10

1972248C1

THERMOSTAT

- engine (82 degrees C)

1шт.

11

1972209C1

OUTLET

- water

1шт.

12

1972210C1

GASKET

- water outlet

1шт.

13

826-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

- hex, 8-1.25 x 30 mm, class 10.9

2шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

15

1972211C1

BELT

Fan

1шт.
