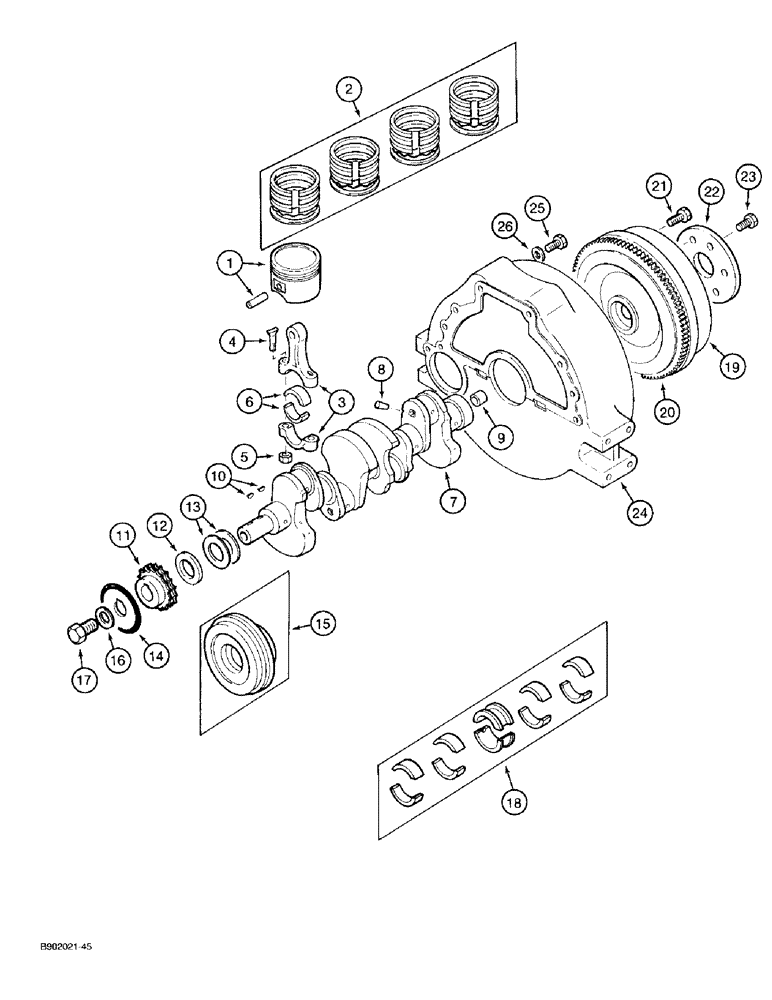

Запчасти Case IH 1825 (2-44) - PISTONS, CRANKSHAFT AND FLYWHEEL, GASOLINE MODELS (02) - ENGINE

1

1972148C1

PISTON

SET - with pin (standard)

4шт.

1

1972300C1

PISTON

SET - with pin (0.5 mm oversize)

4шт.

1

1972301C1

PISTON

SET - with pin (1.0 mm oversize)

4шт.

2

1972149C1

RING, PISTON

RING SET - piston (standard) (for 4 pistons)

1шт.

2

1972302C1

RING

SET - piston (0.5 mm oversize) for 4 pistons

1шт.

2

1972303C1

RING

SET - piston (1.0 mm oversize) for 4 pistons

1шт.

1972233C1

ROD

ASSEMBLY - connecting, Includes: Ref. 3 - 6

4шт.

3

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

4

1972234C1

BOLT

- connecting rod

8шт.

5

1972235C1

NUT

- connecting rod bolt

8шт.

6

1972236C1

BUSHING

- connecting rod (standard)

8шт.

6

1972304C1

BUSHING

- connecting rod (0.08 mm undersize)

8шт.

6

1972305C1

BUSHING

- connecting rod (0.12 mm undersize)

8шт.

6

1972306C1

BUSHING

- connecting rod (0.25 mm undersize)

8шт.

6

1972307C1

BUSHING

- connecting rod (0.50 mm undersize)

8шт.

6

1972308C1

BUSHING

- connecting rod (0.75 mm undersize)

8шт.

7

1972150C1

CRANKSHAFT

- engine

1шт.

8

1972151C1

PLUG

- taper

4шт.

9

1972152C1

BUSHING

- pilot

1шт.

10

1972327C1

KEY

- Woodruff

2шт.

11

1972153C1

PINION

SPROCKET - crankshaft

1шт.

12

1972154C1

WASHER

- crankshaft packing

1шт.

13

1972155C1

BLOCK

SHIM - crankshaft sprocket

1шт.

14

1972156C1

DISC

SLINGER - crankshaft oil

1шт.

15

1972157C1

PULLEY

- crankshaft

1шт.

16

1972158C1

WASHER

- pulley bolt

1шт.

17

1972159C1

BOLT

- crankshaft pulley

1шт.

18

1972160C1

BEARING SET

- crankshaft (standard)

1шт.

18

1972309C1

KIT

BEARING SET - crankshaft (0.02 mm undersize)

1шт.

18

1972310C1

KIT

BEARING SET - crankshaft (0.25 mm undersize)

1шт.

18

1972311C1

BEARING SET

- crankshaft (0.50 mm undersize)

1шт.

18

1972312C1

BEARING SET

- crankshaft (0.75 mm undersize)

1шт.

18

1972313C1

BEARING SET,53.667 mm ID x 68 mm OD x 23 mm

- crankshaft (1.00 mm undersize)

1шт.

1972161C1

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

FLYWHEEL - crankshaft

1шт.

20

1972237C1

PINION

GEAR - ring, flywheel

1шт.

21

1972163C1

BOLT

- flywheel

6шт.

22

1972164C1

ADAPTER

ADAPTOR - flywheel

1шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8-1.25 x 25 mm

6шт.

24

1972165C1

HOUSING

- flywheel

1шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8-1.25 x 25 mm

6шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.
