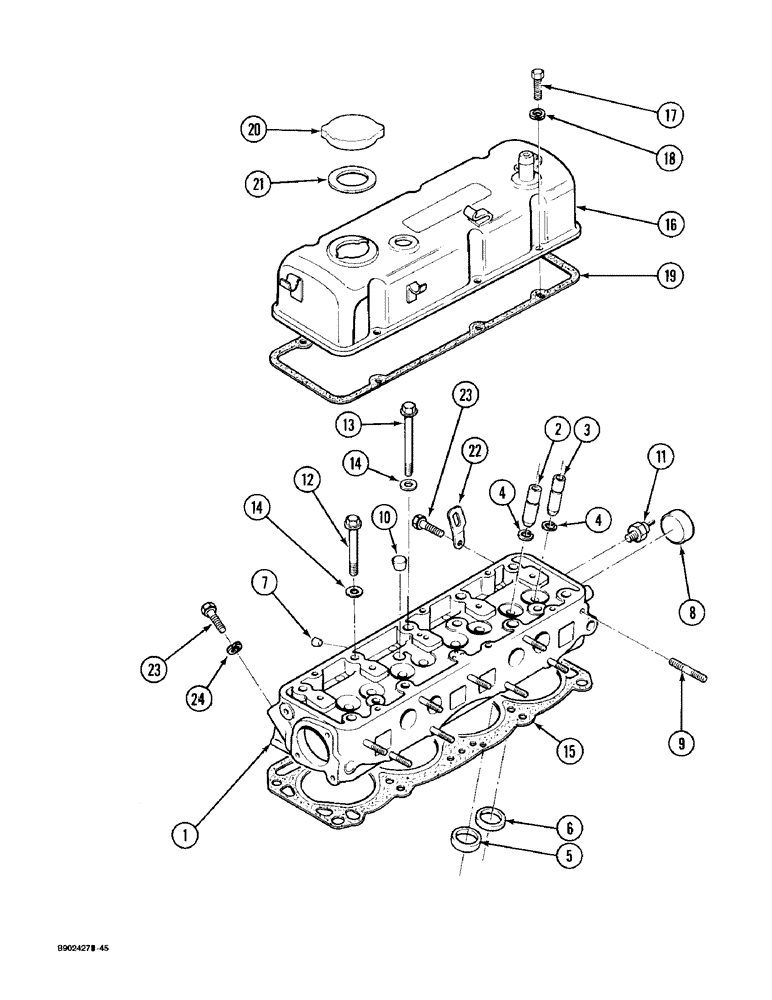

Запчасти Case IH 1825 (2-42) - CYLINDER HEAD AND COVER, GASOLINE MODELS (02) - ENGINE

1

1972122C1

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 2 - 10

1шт.

2

1972123C1

GUIDE

- intake valve

4шт.

2

1972298C1

GUIDE

- intake valve (0.2 mm oversize)

4шт.

3

1972124C1

GUIDE

- exhaust valve

4шт.

3

1972299C1

GUIDE

- exhaust valve (0.2 mm oversize)

4шт.

4

1972125C1

SEALING RING

RING - snap, valve guide

8шт.

5

1972126C1

INSERT

- intake valve

4шт.

5

1972296C1

INSERT

- intake valve (0.5 mm oversize)

4шт.

6

1972127C1

INSERT

- exhaust valve

4шт.

6

1972297C1

INSERT

- exhaust valve (0.5 mm oversize)

4шт.

7

1972330C1

PLUG

- taper

1шт.

8

1972231C1

PLUG

- welch

1шт.

9

1972323C1

STUD

- manifold

9шт.

10

1972128C1

PLUG

- cylinder head, blind

4шт.

11

1972129C1

IGNITION SWITCH

SWITCH - thermostat

1шт.

12

1972130C1

BOLT

- cylinder head

9шт.

13

1972131C1

BOLT

- cylinder head to oil gallery

1шт.

14

1972132C1

WASHER

- cylinder head bolt

10шт.

15

1972133C1

CYLINDER HEAD GASKET

- cylinder head

1шт.

16

1972134C1

COVER

- cylinder head

1шт.

17

31006R1

SCREW,Cross Pan Hd, M6 x 16

- cylinder head cover, 6 x 16 mm

6шт.

18

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

19

1972137C1

GASKET

- cylinder head cover

1шт.

20

1972135C1

PLUG

CAP - oil filler, Includes: Ref. 21

1шт.

21

1972136C1

GASKET

- oil filler cap

1шт.

22

1972138C1

BRACKET

- engine lift, rear

1шт.

23

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

- hex, 8 x 16 mm

2шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.
