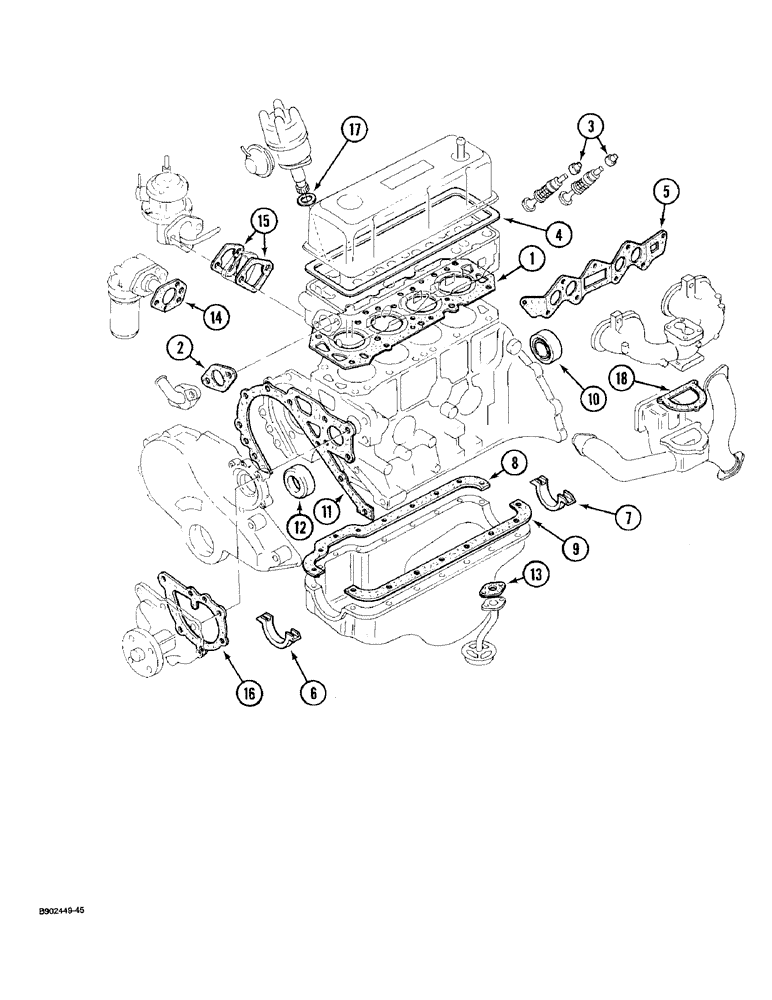

Запчасти Case IH 1825 (2-40) - ENGINE GASKET KIT, GASOLINE MODELS (02) - ENGINE

1972288C1

GASKET KIT

- gasket, engine repair, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

GASKET - cylinder head

1шт.

Part of cylinder head gasket kit P/N 1972289C1.

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - joint, water outlet

1шт.

Part of cylinder head gasket kit P/N 1972289C1.

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - valve oil

8шт.

Part of cylinder head gasket kit P/N 1972289C1.

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - cylinder head cover

1шт.

Part of cylinder head gasket kit P/N 1972289C1.

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - manifold

1шт.

Part of cylinder head gasket kit P/N 1972289C1.

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - oil pan front

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil pan rear

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - oil pan, right-hand

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - oil pan, left-hand

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - timing chain cover

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - oil strainer

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET - oil pump to cylinder block

1шт.

15

NSS

NOT SOLD SEPARAT

GASKET - fuel pump

2шт.

16

NSS

NOT SOLD SEPARAT

GASKET - water pump

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - support distributor

1шт.

18

NSS

NOT SOLD SEPARAT

GASKET - stove

2шт.

1972289C1

GASKET KIT

- cylinder head gaskets, Includes: Ref. 1 - 5

1шт.
