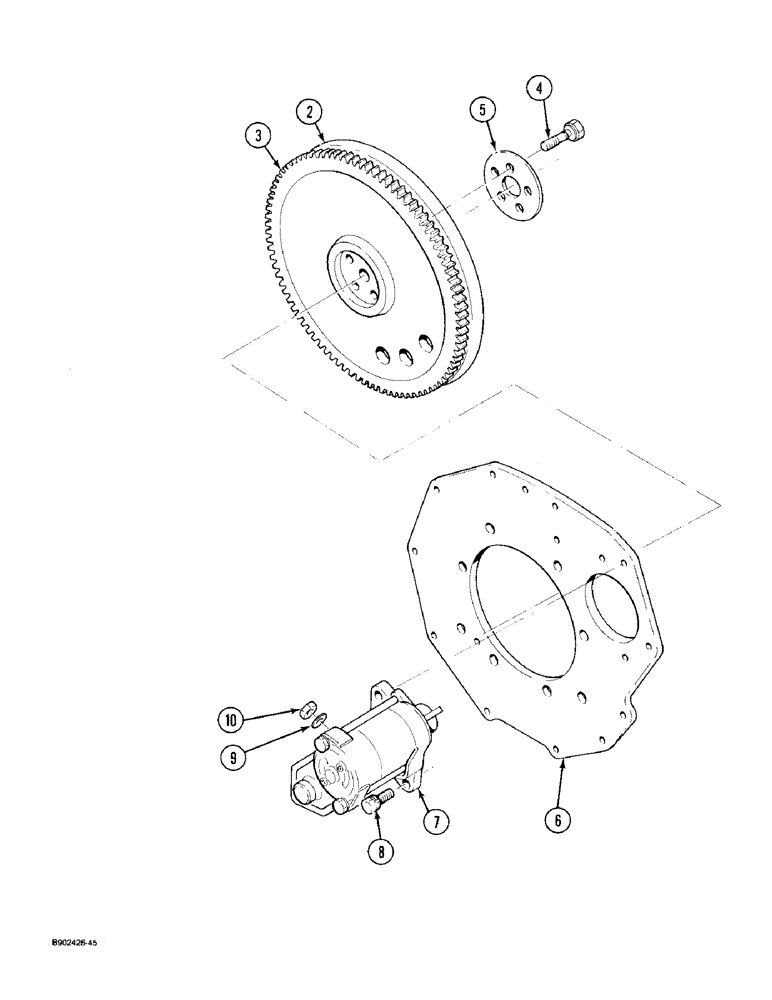

Запчасти Case IH 1825 (2-36) - FLYWHEEL AND STARTER MOTOR, DIESEL MODELS (02) - ENGINE

1959371C1

FLYWHEEL

ASSEMBLY - crankshaft, used prior to engine S/N 771651, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

FLYWHEEL - order flywheel assembly 1959371C1

1шт.

3

1959370C1

GEAR

- ring

1шт.

112566A1

FLYWHEEL

ASSEMBLY - crankshaft, complete, used with engine S/N 771651 and after

1шт.

4

1959374C1

BOLT

- flywheel

5шт.

5

1959377C1

WASHER

- flywheel

1шт.

6

1959378C1

PLATE

- flywheel cover

1шт.

7

1959380C1

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Fig. 4-06

1шт.

8

1959382C1

BOLT

- starter motor mounting

2шт.

9

1959171C1

SPRING WASHER

- flat

1шт.

10

1959269C1

NUT

- 10 mm

1шт.
