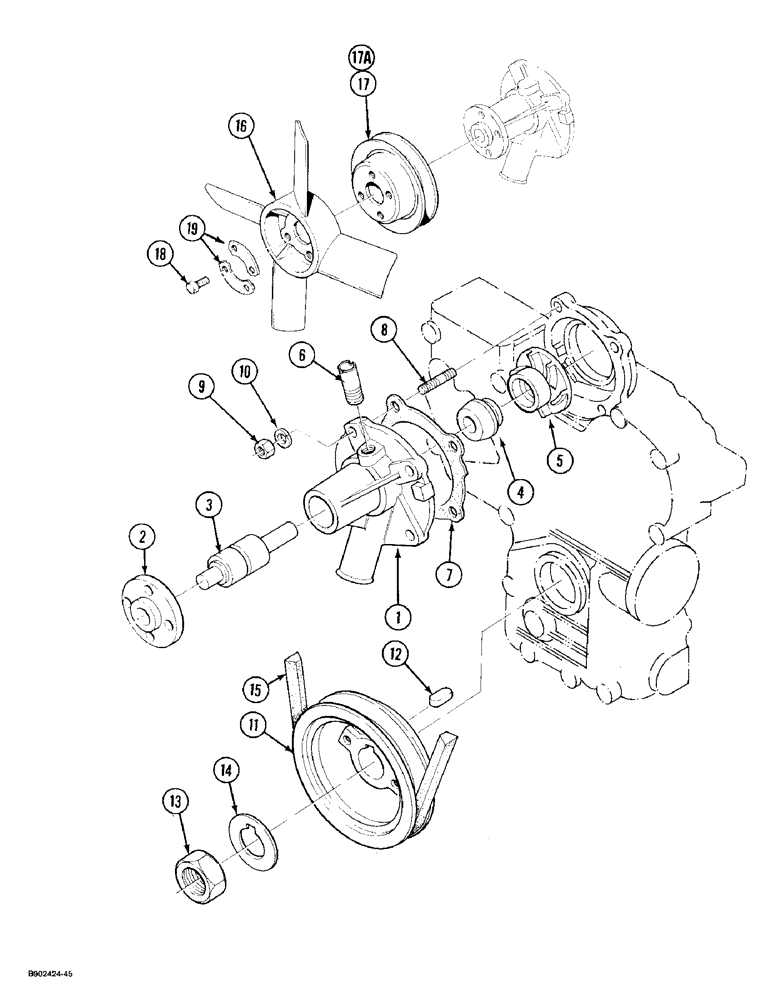

Запчасти Case IH 1825 (2-32) - WATER PUMP, DIESEL MODELS (02) - ENGINE

1

1959498C1

PUMP

ASSEMBLY - water, used before engine S/N 771651, Includes: Ref. 2 - 5

1шт.

2

1959500C1

FLANGE

- water pump

1шт.

3

1959501C1

BEARING ASSY

BEARING - water pump

1шт.

4

1959502C1

SEAL

- mechanical

1шт.

5

1959503C1

IMPELLER

- water pump

1шт.

1

110949A1

PUMP, WATER

PUMP ASSEMBLY - water, used with engine S/N 771651 and after, not shown, Includes: Ref. 2 - 5

1шт.

2

110950A1

FLANGE

- water pump

1шт.

3

110951A1

BEARING

- water pump

1шт.

4

110952A1

SEAL

- mechanical

1шт.

5

110953A1

FAN

IMPELLER - water pump

1шт.

5a

1959216C1

BOLT

- water pump, used with 110949A1 pump, not shown

4шт.

6

1959434C1

PIPE,6.5 mm ID, 10.5 mm OD, 27 mm Length

- water return, used with 1959498C1 pump

1шт.

6a

110954A1

TUBE ASSY.

PIPE - water return, used with 110949A1 pump, not shown

1шт.

7

1981635C1

GASKET

- water pump

1шт.

8

1959506C1

STUD

- water pump

4шт.

9

1959205C1

NUT

- cover stud, 6 mm

4шт.

10

1959206C1

SPRING WASHER

- lock

4шт.

11

1959508C1

PULLEY

- fan drive

1шт.

12

1959306C1

KEY

- feather

1шт.

13

1959509C1

NUT,Hex, M20 x 5, RH

- crankshaft 20 mm

1шт.

14

1959511C1

WASHER

- crankshaft

1шт.

15

1959510C1

BELT

Fan

1шт.

16

A173837

FAN

- water pump

1шт.

17

1959513C1

PULLEY

- fan, used with 1959498C1 pump

1шт.

17a

110955A1

PULLEY

- fan, used with 110949A1 pump, not shown

1шт.

18

1959476C1

BOLT

- fan

4шт.

19

1959514C1

WASHER

PLATE - fan

2шт.
