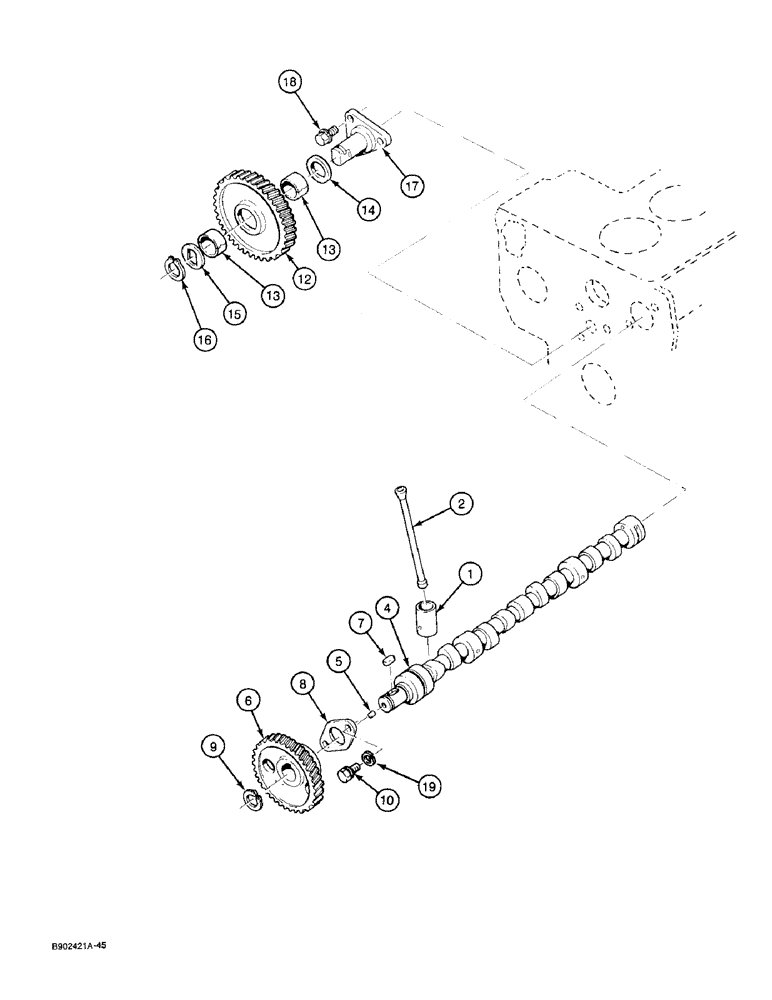

Запчасти Case IH 1825 (2-26) - CAMSHAFT, DIESEL MODELS (02) - ENGINE

1

1959299C1

BUSHING

TAPPET - push rod

8шт.

2

1959300C1

PUSH ROD

ROD - push

8шт.

1959309C1

CAMSHAFT

ASSEMBLY - engine, Includes: Ref. 4 - 9

1шт.

4

1959310C1

CAM

SHAFT - engine, Includes: Ref. 5

1шт.

5

1959304C1

PLUG

- blind

2шт.

6

1959305C1

GEAR

- camshaft

1шт.

7

1959306C1

KEY

- feather

1шт.

8

1959307C1

PLATE

- camshaft

1шт.

9

1959308C1

RING, SNAP

RING - snap, external

1шт.

10

1959344C1

BOLT

- camshaft plate

2шт.

1959312C1

GEAR

ASSEMBLY - idler, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - idler, order gear assembly 1959312C1

1шт.

13

1959314C1

BUSHING

- idler gear

2шт.

14

1959315C1

COLLAR

- idler gear, No. 1 cylinder

1шт.

15

1959316C1

COLLAR

- idler gear, No. 2 cylinder

1шт.

16

1959317C1

RING, SNAP

RING - snap, external

1шт.

17

1959318C1

SHAFT

- idler gear

1шт.

18

1959319C1

BOLT

- idler gear shaft

3шт.

19

1959206C1

SPRING WASHER

- lock

2шт.
