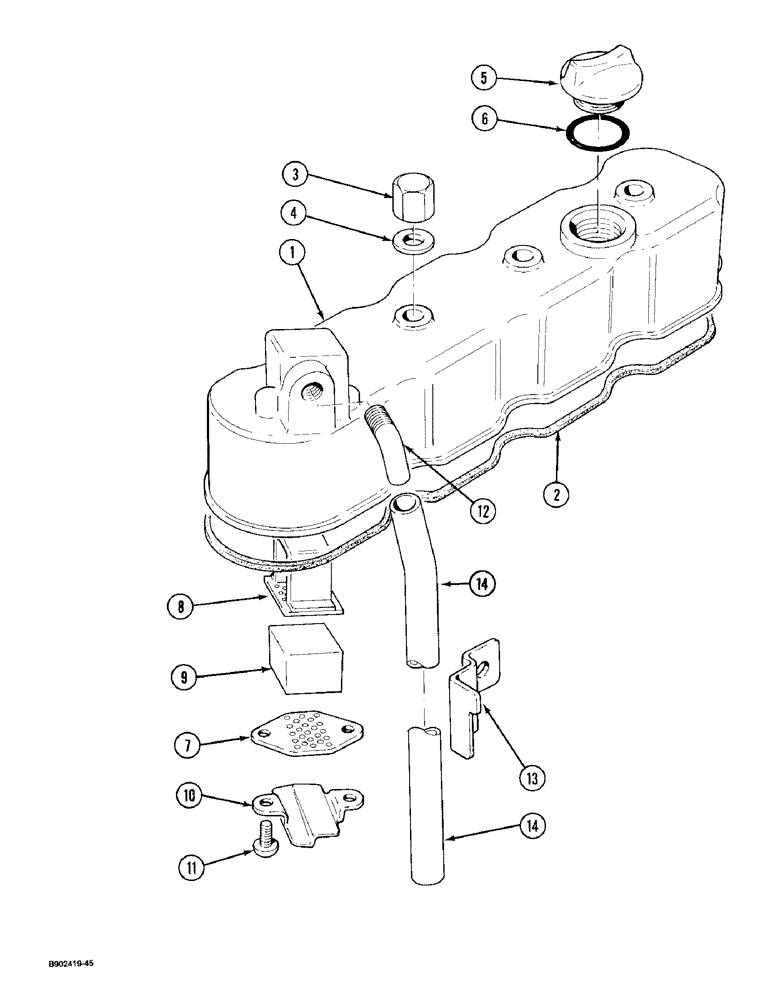

Запчасти Case IH 1825 (2-22) - CYLINDER HEAD COVER, DIESEL MODELS (02) - ENGINE

1

1959230C1

COVER

- cylinder head

1шт.

2

1959232C1

GASKET

- cylinder head cover

1шт.

3

1959233C1

NUT

- cap

4шт.

4

1959234C1

WASHER

GASKET - nut

4шт.

5

1959238C1

CAP

- oil filler

1шт.

6

1959239C1

O-RING

- oil filler cap

1шт.

7

1959240C1

PLATE

- breather element, lower

1шт.

8

1959246C1

PLATE

- breather element, upper

1шт.

9

1959247C1

FILTER, ELEMENT

ELEMENT - breather

1шт.

10

1959248C1

SHIELD

- breather

1шт.

11

1959249C1

SCREW

- breather

2шт.

12

1959250C1

JOINING ELEMENT

ELBOW - breather tube

1шт.

13

1959251C1

CLAMP

- breather tube

1шт.

14

1959253C1

PIPE,12 mm ID, 16 mm OD, 490 mm Length

TUBE - breather

1шт.
