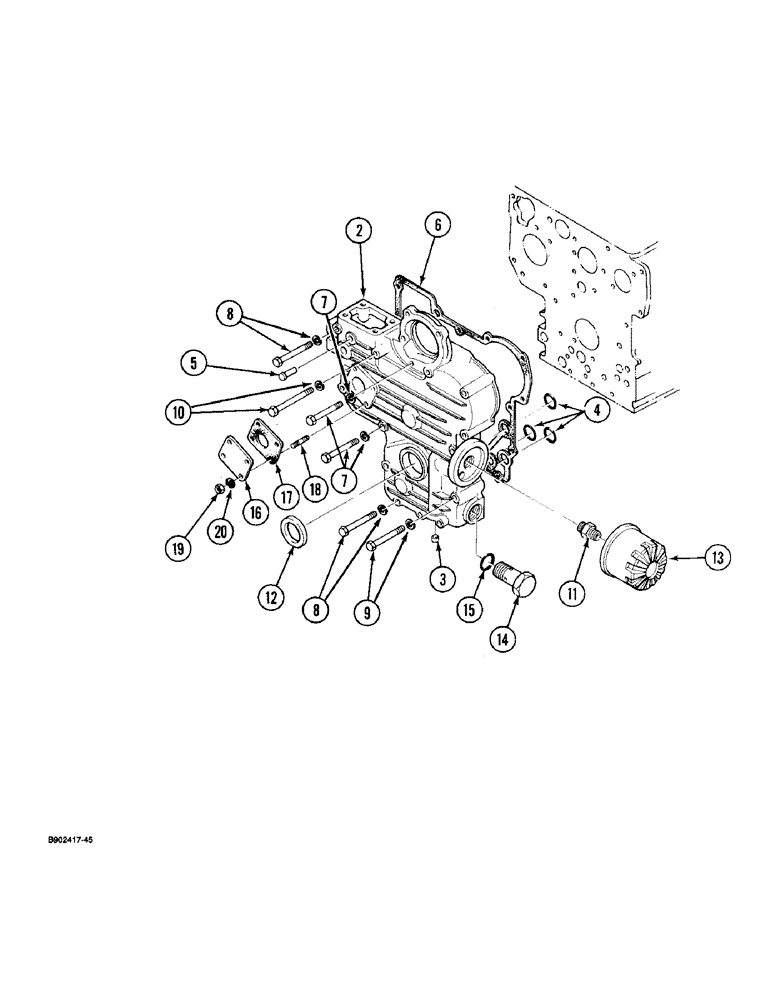

Запчасти Case IH 1825 (2-18) - FRONT GEAR COVER, DIESEL MODELS (02) - ENGINE

1959186C1

COVER

ASSEMBLY - gear, front, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - gear, order cover assembly 1959186C1

1шт.

3

1959188C2

PLUG

- cover, WAS 1959188C1

2шт.

4

1959189C1

O-RING

- cover

3шт.

5

1959190C1

PIN

- start spring

1шт.

6

1981625C1

GASKET

- gear cover

1шт.

7

1959192C1

BOLT

- with lock washer

6шт.

8

1959193C1

BOLT

- with lock washer

6шт.

9

1959194C1

BOLT

- with lock washer

1шт.

10

1959195C1

BOLT

- with lock washer

1шт.

11

1959196C1

FITTING

ADAPTER - filter

1шт.

12

1959197C1

OIL SEAL

- oil

1шт.

13

1959198C1

FILTER, ENGINE OIL

CARTRIDGE - oil filter

1шт.

14

1959199C1

VALVE

ASSEMBLY - relief, internal component parts not serviced separately, Includes: Ref. 15

1шт.

15

1959201C1

O-RING

- valve

1шт.

16

1959202C1

PLATE

COVER - front gear cover

1шт.

17

1981626C1

GASKET

- front gear cover

1шт.

18

1959204C1

STUD

- cover, 6 x 28 mm

4шт.

19

1959205C1

NUT

- cover stud, 6 mm

4шт.

20

1959206C1

SPRING WASHER

- lock

1шт.
