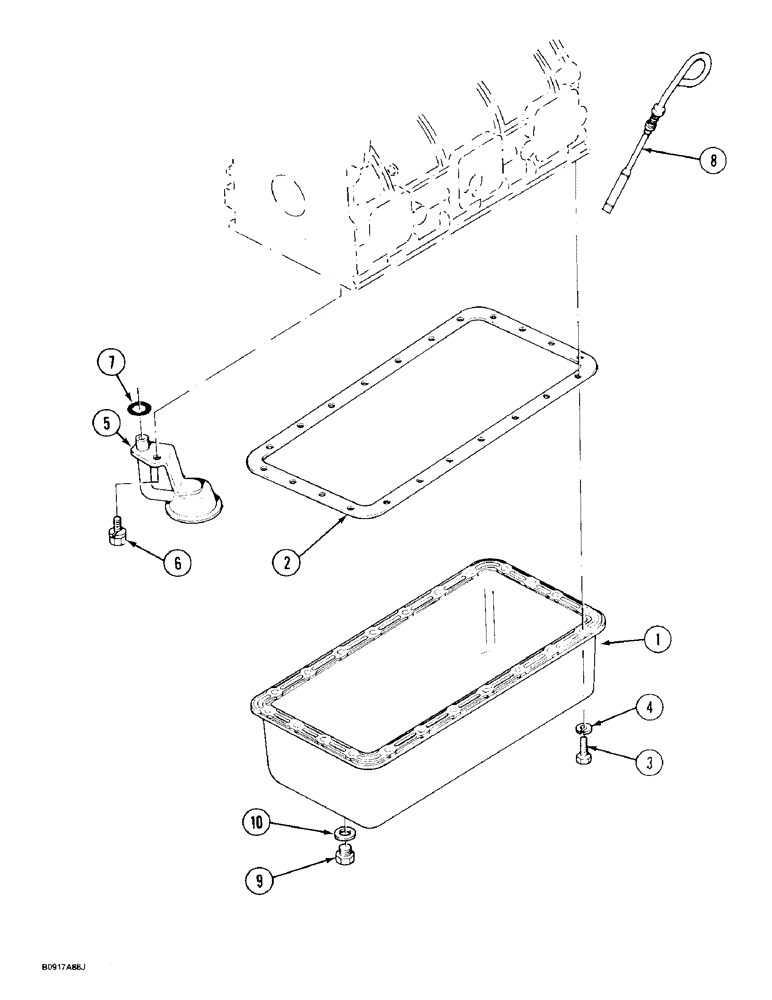

Запчасти Case IH 1825 (2-14) - OIL PAN, DIESEL MODELS (02) - ENGINE

1

1959161C1

SUMP

PAN - oil

1шт.

2

1981622C1

GASKET

- oil pan

1шт.

3

1959147C1

BOLT

- hex, 6 x 19 mm

22шт.

4

1959162C1

LOCK WASHER

- head lock, oil pan

22шт.

5

1959148C1

PIPE

SCREEN - oil

1шт.

6

1959164C1

BOLT

- oil filter

1шт.

7

1959166C1

O-RING

- oil filter

1шт.

8

1959168C1

DIPSTICK

- oil

1шт.

9

1959149C1

PLUG

- drain

1шт.

10

1510933660

GASKET

WASHER - drain plug, 12 x 16 x 1.5 mm, was 1959150C1

1шт.

198614A1

GUIDE

TUBE oil dipstick

1шт.

198615A1

SUPPORT

BRACKET oil dipstick

1шт.

126136A1

CAPTIVE WASHER SCREW

for bracket

2шт.

0481110320

O-RING

SEAL, O-ring

1шт.

The seal ring, per vendor, is approximately 35.5 mm x 30 mm. Could possibly try 30606R1 O-ring or 239-5123 if no stock is available on 0481110320.

1шт.
