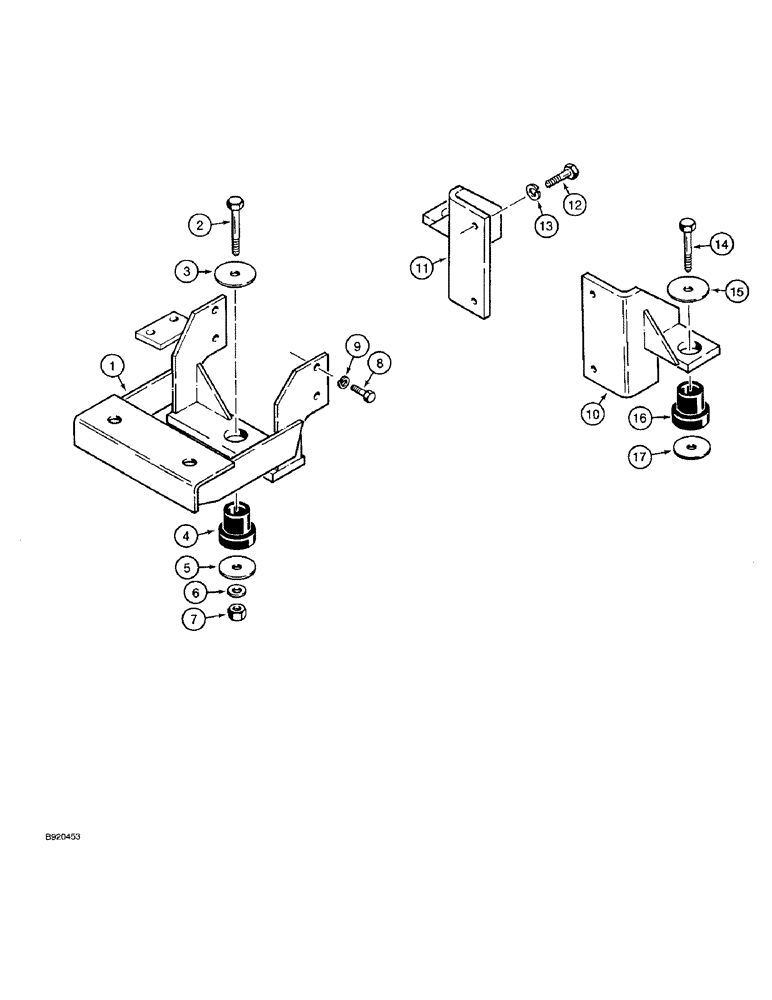

Запчасти Case IH 1825 (2-11A) - DIESEL ENGINE AND MOUNTING PARTS, EUROPEAN MODELS, PRIOR TO P.I.N. JAF0096438 (02) - ENGINE

1959656C1

ENGINE ASSEMBLY

ENGINE - complete, diesel (not shown)

1шт.

1

108570A1

MOUNTING PARTS

SUPPORT - engine mounting, rear

1шт.

2

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

3

495-81239

WASHER,17/32" x 2 1/4" x .180"

- flat, 17/32 x 2-1/4 x 3/16 inch

1шт.

4

D137185

MOUNTING PARTS

INSULATOR - engine mount, rubber

1шт.

5

495-81241

WASHER,0.56" ID x 2" OD x 0.1" Thk

- flat, 9/16 x 2 x 1/8 inch

1шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

7

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

8

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

9

892-11010

LOCK WASHER,M10

4шт.

10

D138185

MOUNTING PARTS

MOUNT - engine, right-hand front

1шт.

11

D138186

MOUNTING PARTS

MOUNT - engine, left-hand front

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

13

492-11038

LOCK WASHER,3/8"

4шт.

14

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

15

495-81239

WASHER,17/32" x 2 1/4" x .180"

- flat, 17/32 x 2-1/4 x 3/16 inch

2шт.

16

D137185

MOUNTING PARTS

INSULATOR - engine mount

2шт.

17

495-81241

WASHER,0.56" ID x 2" OD x 0.1" Thk

- flat, 9/16 x 2 x 1/8 inch

2шт.
