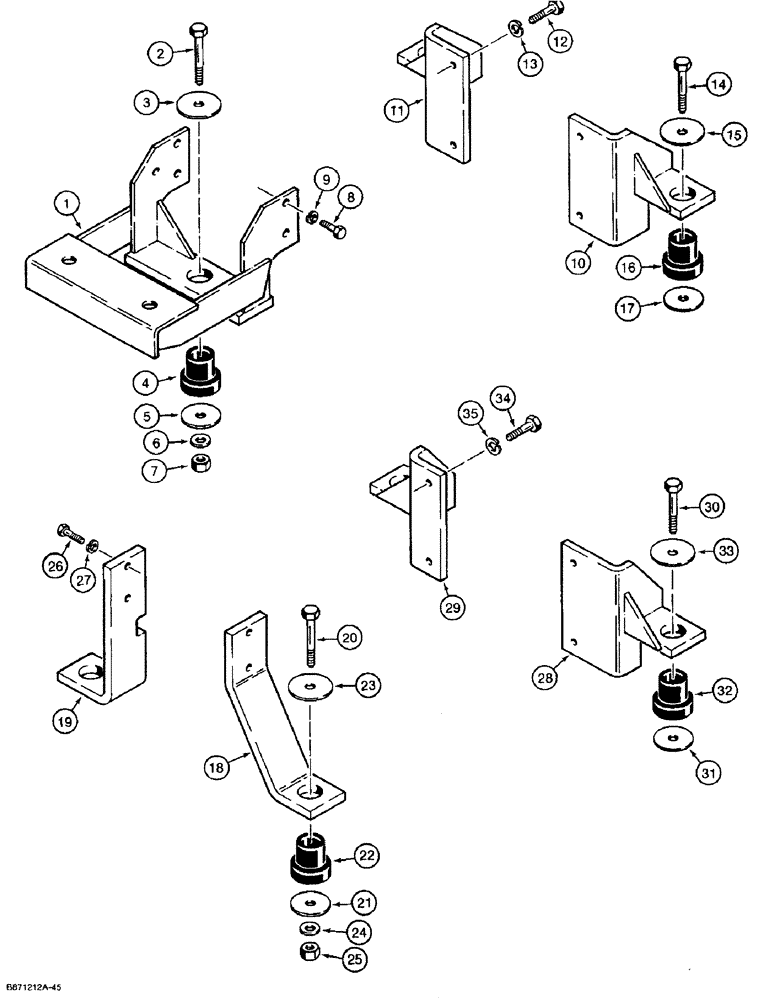

Запчасти Case IH 1825 (2-10) - ENGINE & MOUNTING PARTS, NORTH AMERICAN MODELS, PRIOR TO P.I.N. JAF0096438 (02) - ENGINE

1959656C1

ENGINE ASSEMBLY

ENGINE - complete, diesel models (not shown)

1шт.

1

D137174

SUPPORT

- engine mounting, rear, diesel models

1шт.

2

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, diesel models

1шт.

3

495-81239

WASHER,17/32" x 2 1/4" x .180"

- flat, 17/32 x 2-1/4 x 3/16 inch, diesel models

1шт.

4

D137185

MOUNTING PARTS

INSULATOR - engine mount, rubber, diesel models

1шт.

5

495-81241

WASHER,0.56" ID x 2" OD x 0.1" Thk

- flat, 9/16 x 2 x 1/8 inch, diesel models

1шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch, diesel models

1шт.

7

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, diesel models

1шт.

8

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

Diesel models Hex, M10 x 1.25 x 25, 8.8, Full Thd

4шт.

9

892-11010

LOCK WASHER,M10

Diesel models M10

4шт.

10

D138185

MOUNTING PARTS

MOUNT - engine, right-hand front, diesel models

1шт.

11

D138186

MOUNTING PARTS

MOUNT - engine, left-hand front, diesel models

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Diesel models

4шт.

13

492-11038

LOCK WASHER,3/8"

diesel models 3/8"

4шт.

14

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, diesel models

2шт.

15

495-81239

WASHER,17/32" x 2 1/4" x .180"

- flat, 17/32 x 2-1/4 x 3/16 inch, diesel models

2шт.

16

D137185

MOUNTING PARTS

INSULATOR - engine mount, diesel models

2шт.

17

495-81241

WASHER,0.56" ID x 2" OD x 0.1" Thk

- flat, 9/16 x 2 x 1/8 inch, diesel models

2шт.

A173768

ENGINE ASSEMBLY

ENGINE - complete, gasoline models (not shown)

1шт.

18

D139458

ANGLE

BRACKET - engine mount, right-hand rear, gasoline models

1шт.

19

D139459

ANGLE

BRACKET - engine mount, left-hand rear, gasoline models

1шт.

20

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, gasoline models

2шт.

21

495-81241

WASHER,0.56" ID x 2" OD x 0.1" Thk

- flat, 9/16 x 2 x 1/8 inch, gasoline models

2шт.

22

D137185

MOUNTING PARTS

INSULATOR - engine mount, gasoline models

2шт.

23

495-81239

WASHER,17/32" x 2 1/4" x .180"

- flat, 17/32 x 2-1/4 x 3/16 inch, gasoline models

2шт.

24

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch, gasoline models

2шт.

25

232-4118

NUT,1/2"-13, GC

NUT, LOCK, , Gasoline models 1/2"-13, GC

2шт.

26

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8-1.25 x 25 mm, gasoline models

4шт.

27

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Gasoline models M8

4шт.

28

D138191

MOUNTING PARTS

MOUNT - engine, right-hand front, gasoline models

1шт.

29

D138192

MOUNTING PARTS

MOUNT - engine, left-hand front, gasoline models

1шт.

30

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, gasoline models

2шт.

31

495-81241

WASHER,0.56" ID x 2" OD x 0.1" Thk

- flat, 9/16 x 2 x 1/8 inch, gasoline models

2шт.

32

D137185

MOUNTING PARTS

INSULATOR - engine mount, gasoline models

2шт.

33

495-81239

WASHER,17/32" x 2 1/4" x .180"

- flat, 17/32 x 2-1/4 x 3/16 inch, gasoline models

2шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, gasoline models

4шт.

35

492-11038

LOCK WASHER,3/8"

gasoline models 3/8"

4шт.
