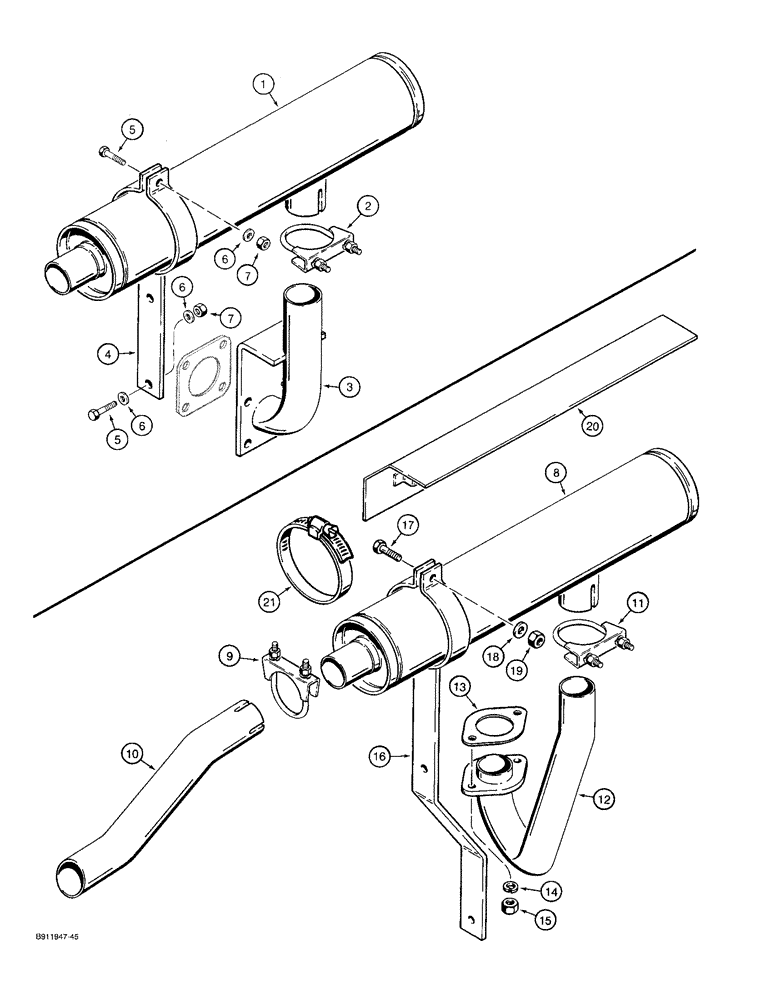

Запчасти Case IH 1825 (2-08) - MUFFLER & EXHAUST SYSTEM, NORTH AMERICAN MODELS, DIESEL, GASOLINE (02) - ENGINE

1

A184704

MUFFLER

- exhaust, diesel models

1шт.

2

H674408

ANCHOR

CLAMP - exhaust pipe, includes hardware, was D61412, diesel models

1шт.

3

D135119

PIPE

- exhaust, from engine to muffler, diesel models

1шт.

4

H674408

ANCHOR

SUPPORT - muffler, diesel models

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, diesel models

2шт.

6

H426775

WASHER

- flat, hardened, diesel models

3шт.

7

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, , Diesel models 5/16"-18, GC

2шт.

8

A184704

MUFFLER

- exhaust, gasoline models

1шт.

9

D61412

CLAMP

- muffler to exhaust extension, includes hardware, gasoline models

1шт.

10

H437461

WHISTLE

EXTENSION - muffler exhaust, gasoline models

1шт.

11

D61412

CLAMP

- exhaust pipe, includes hardware, gasoline models

1шт.

12

D137042

PIPE

- exhaust, from engine to muffler, gasoline models

1шт.

13

106665A1

GASKET

- exhaust pipe (Replaces D137045), gasoline models

1шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Gasoline models M8

2шт.

15

825-1408

NUT,M8, Cl 8

Gasoline models M8, Cl 8

2шт.

16

H674407

ANCHOR

SUPPORT - muffler, gasoline models

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, gasoline models

1шт.

18

H426775

WASHER

- flat, hardened, gasoline models

1шт.

19

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, , Gasoline models 5/16"-18, GC

1шт.

20

H674747

LARGE PLATE

SHIELD - heat, muffler, gasoline models

1шт.

21

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Gasoline models #64, 3.56/4.50 Type F Worm

2шт.
