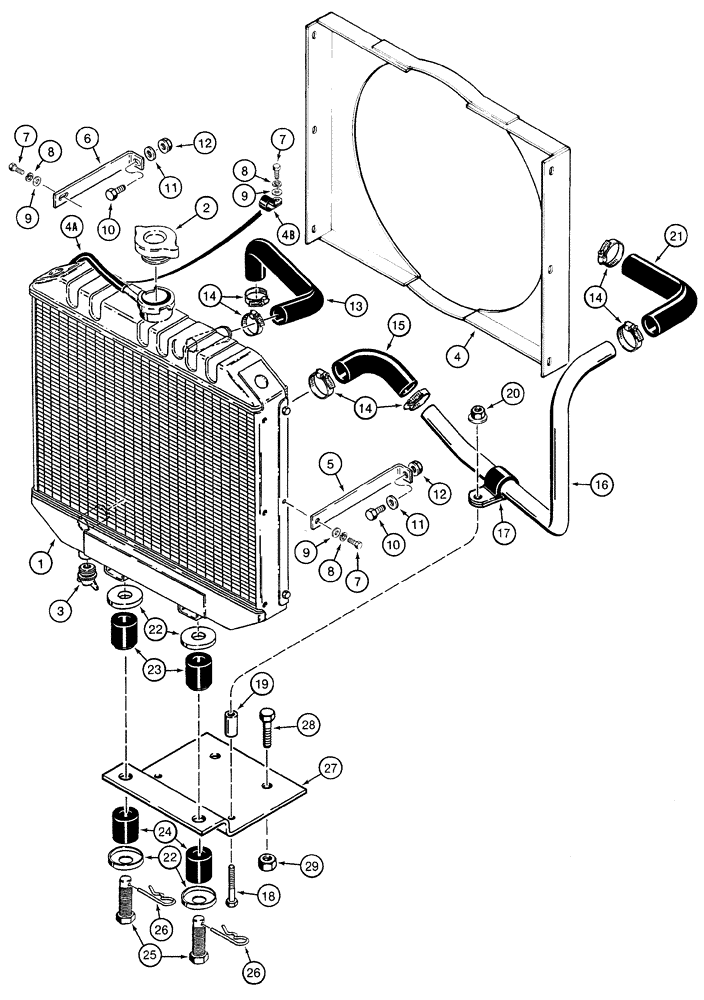

Запчасти Case IH 1825 (2-04) - RADIATOR & MOUNTING PARTS, GASOLINE MODELS, BEFORE P.I.N. JAF0096438 (02) - ENGINE

1

A173836

RADIATOR

ASSEMBLY - engine cooling, Includes: Ref. 2 - 4A

1шт.

2

A184964

FILLER CAP

CAP - radiator

1шт.

3

A184965

COCK, DRAIN

VALVE - drain

1шт.

4

128780A1

SHROUD

- fan, was A184942

1шт.

4a

D94979

FUEL HOSE,7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

HOSE 7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

1шт.

4b

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type 1/2", Insul, 5/16" Bolt

1шт.

5

D137449

SUPPORT

- radiator, right-hand

1шт.

6

H437478

SUPPORT

- radiator, left-hand

1шт.

7

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

9

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

3шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

11

H426775

WASHER

- flat, special, hardened

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

13

D136885

HOSE,26.50 mm ID x 233.00 mm, SAE 20R4

RADIATOR HOSE, , Upper, Formed, Two Bends 26.50 mm ID x 233.00 mm, SAE 20R4

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

6шт.

15

D136886

TUBE

HOSE - formed, 90 degree bend, 26.5 mm ID, lower radiator port, at radiator

1шт.

16

D136887

HOSE

TUBE - radiator, lower, 25.4 mm OD

1шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

18

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

19

D123485

SPACER

- steel tubing, 10.3 ID x 15.88 mm x 32 mm long, to mounting plate

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

21

A173838

RADIATOR HOSE,25.00 mm ID x 126.00 mm, SAE 20R4 CLASS C, PER SAE J20

25.00 mm ID, SAE 20R4 per SAE J20, Formed, 90 Degree Bend, Lower Radiator Port, at Engine

1шт.

22

1959244C1

CUP WASHER

- special

4шт.

23

1959242C1

HITCH DAMPER

INSULATOR - rubber, upper, upper

2шт.

24

1959243C1

HITCH DAMPER

INSULATOR - rubber, lower, lower

2шт.

25

1959241C1

BOLT

- hex, 10-1.25 x 60 mm

2шт.

26

1959245C1

LINCH PIN

PIN - hair, bolt

2шт.

27

D136888

BRACKET

- radiator mounting

1шт.

28

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

S120317X

HOSE

5/16 (8) ID x 300 inch (7620 mm) long

1шт.
