Запчасти Case IH 1825 (9-62) - DECALS - PORTUGUESE, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS

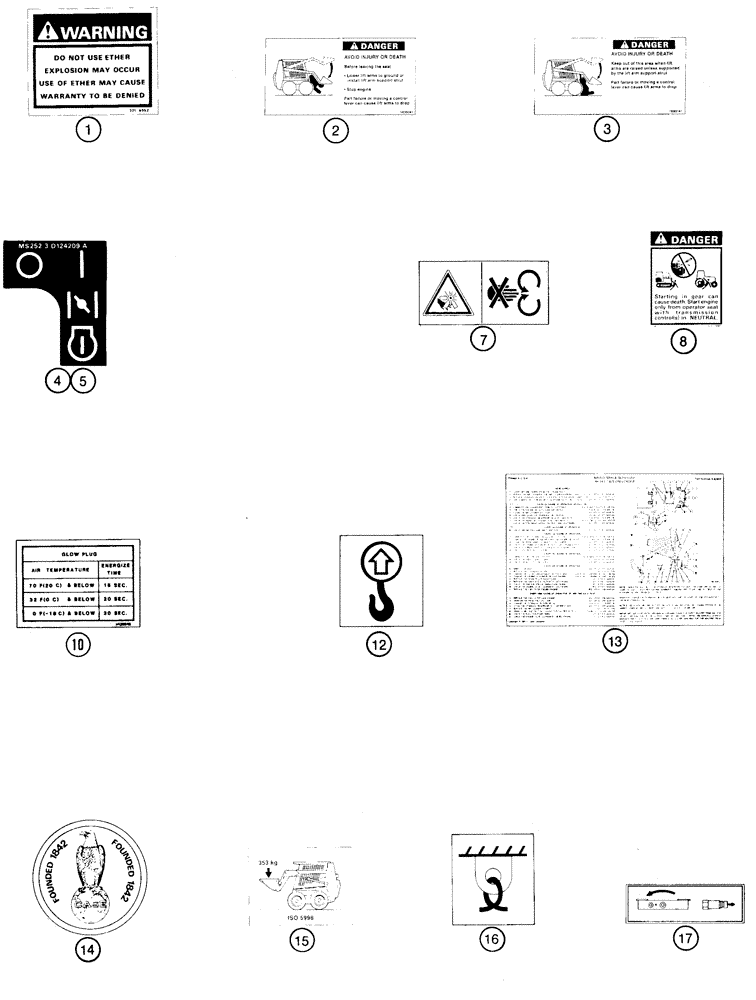

Схема запчастей Case IH 1825 - (9-62) - DECALS - PORTUGUESE, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS
2
1
17
8
3
14
10
4
5
16
7
13
15
12

Артикул

Название

Примечание

Количество

1

175619A1

DECAL

- Warning, do not use ether (Portuguese), diesel models

1шт.

2

175486A1

DECAL

- Danger, before leaving the seat (Portuguese)

1шт.

3

175490A1

DECAL

- Danger, keep out of this are (Portuguese)

1шт.

4

D124209

DECAL

- ignition switch pattern, graphic, brown

1шт.

5

178664A1

DECAL

- ignition switch pattern, graphic, gray

1шт.

7

175504A1

DECAL

- Warning, rotating fan, graphic

1шт.

8

175509A1

WARNING DECAL

- jump start, graphic

1шт.

10

175615A1

DECAL

- glow plug, diesel models only (Portuguese), gray

1шт.

12

139729A1

DECAL

- lift only, graphic, use with lift brackets

4шт.

13

175524A1

DECAL

- maintenance schedule (Portuguese)

1шт.

14

A180055

CAP ASSY.

INSERT - Case Globe and Eagle, if used

1шт.

15

139948A1

DECAL

- operating capacity

1шт.

16

139728A1

DECAL

- tie down

4шт.

17

140026A1

DECAL

- auxiliary hydraulics, if used

1шт.

18

D55310

ADHESIVE

STRIP - non-skid, black, 1 x 10 inch long, not shown

4шт.

Выбрано товаров: 15
