Запчасти Case IH 1825 (9-54) - DECALS - SPANISH, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS

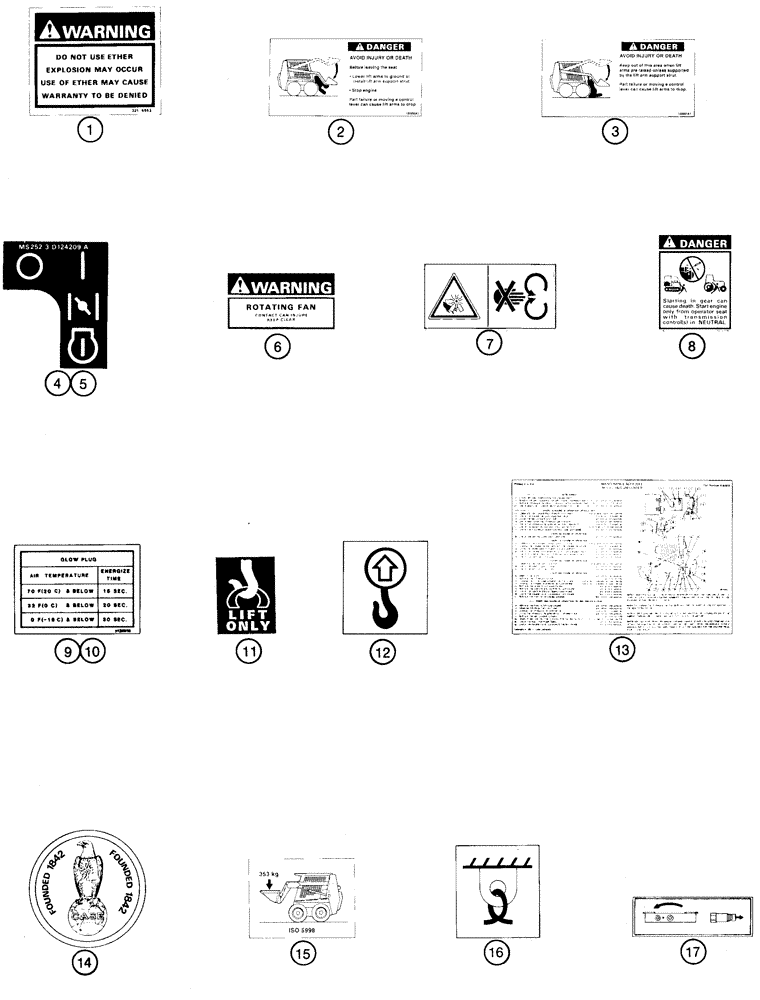

Схема запчастей Case IH 1825 - (9-54) - DECALS - SPANISH, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS
5
12
14
8
2
7
17
4
11
13
16
6
1
10
9
15
3

Артикул

Название

Примечание

Количество

1

321-6963

DECAL

- Warning, do not use ether (Spanish), diesel models

1шт.

2

127532A1

DECAL

- Danger, before leaving the seat (Spanish)

1шт.

3

127533A1

DECAL

- Danger, keep out of this area (Spanish)

1шт.

4

D124209

DECAL

- ignition switch pattern, graphic, brown

1шт.

5

178664A1

DECAL

- ignition switch pattern, graphic, gray

1шт.

6

321-6796

DECAL

- Warning, rotating fan (Spanish)

1шт.

7

175504A1

DECAL

- Warning, rotating fan, graphic

1шт.

8

175509A1

WARNING DECAL

- jump start, graphic

1шт.

9

E20109

DECAL

- glow plug, diesel models only (Spanish), brown

1шт.

10

191039A1

DECAL

- glow plug, diesel models only (Spanish), gray

1шт.

11

321-5429

DECAL

- lift only (Spanish), use with lift brackets

4шт.

12

139729A1

DECAL

- lift only, graphic, use with lift brackets

4шт.

13

175520A1

DECAL

- maintenance schedule (Spanish)

1шт.

14

A180055

CAP ASSY.

INSERT - Case Globe and Eagle, if used

1шт.

15

139948A1

DECAL

- operating capacity

1шт.

16

139728A1

DECAL

- tie down

4шт.

17

140026A1

DECAL

- auxiliary hydraulics, if used

1шт.

18

D55310

ADHESIVE

STRIP - non-skid, black, 1 x 10 inch long, not shown

4шт.

Выбрано товаров: 18
