Запчасти Case IH 1825 (9-46) - DECALS - GERMAN, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS

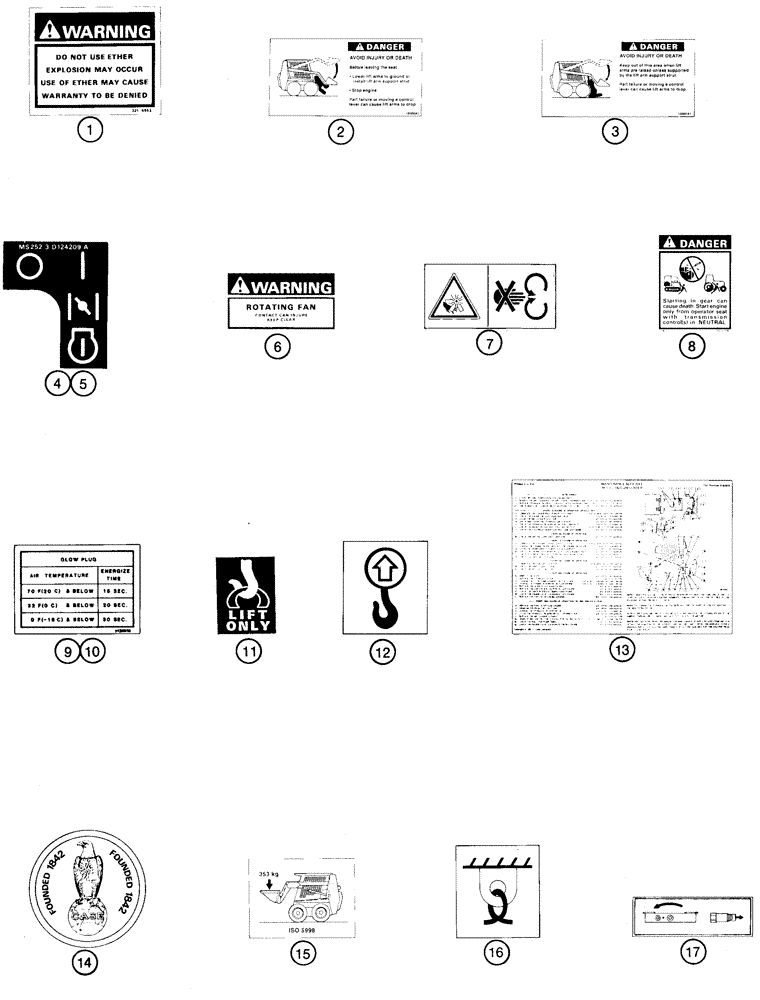

Схема запчастей Case IH 1825 - (9-46) - DECALS - GERMAN, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS
11
16
15
7
6
5
17
2
14
1
4
3
9
10
12
8
13

Артикул

Название

Примечание

Количество

1

321-6962

DECAL

- Warning, do not use ether (German), diesel models

1шт.

2

127527A1

DECAL

- Danger, before leaving the seat (German)

1шт.

3

127529A1

DECAL

- Danger, keep out of this area (German)

1шт.

4

D124209

DECAL

- ignition switch pattern, graphic, brown

1шт.

5

178664A1

DECAL

- ignition switch pattern, graphic, gray

1шт.

6

321-6791

DECAL

- Warning, rotating fan (German)

1шт.

7

175504A1

DECAL

- Warning, rotating fan, graphic

1шт.

8

175509A1

WARNING DECAL

- jump start, graphic

1шт.

9

E20108

DECAL

- glow plug, diesel models only (German), brown

1шт.

10

191037A1

DECAL

- glow plug, diesel models only (German), gray

1шт.

11

321-5428

DECAL

- lift only (German), use with lift brackets

4шт.

12

139729A1

DECAL

- lift only, graphic, use with lift brackets

4шт.

13

175518A1

DECAL

- maintenance schedule (German)

1шт.

14

A180055

CAP ASSY.

INSERT - Case Globe and Eagle, if used

1шт.

15

139948A1

DECAL

- operating capacity

1шт.

16

139728A1

DECAL

- tie down

4шт.

17

140026A1

DECAL

- auxiliary hydraulics, if used

1шт.

18

D55310

ADHESIVE

STRIP - non-skid, black, 1 x 10 inch long, not shown

4шт.

Выбрано товаров: 18
