Запчасти Case IH 1825 (9-40) - DECALS - FRENCH, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS

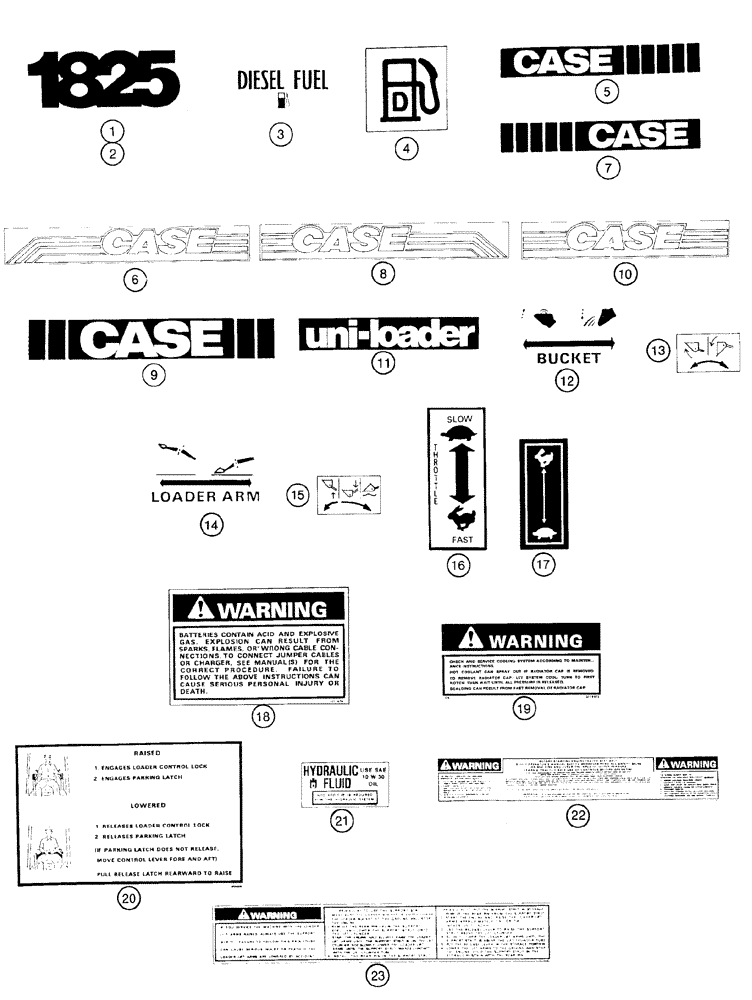

Схема запчастей Case IH 1825 - (9-40) - DECALS - FRENCH, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS
9
12
22
11
1
6
4
7
3
18
19
14
20
21
8
2
15
10
23
16
13
5
17

Артикул

Название

Примечание

Количество

1

D139184

DECAL

- 1825, brown models

2шт.

2

179123A1

DECAL

- 1825, gray models

2шт.

3

106773A1

DECAL

- Gas Oil (diesel fuel) (French)

1шт.

4

139879A1

DECAL

- diesel fuel, graphic

1шт.

5

D138195

DECAL

- Case, with treads, left-hand side, 5 inch (127 mm) high, brown models

1шт.

6

179180A2

DECAL

- Case, with stripes, left-hand side, 5 inch (127 mm) high, gray models

1шт.

7

D138196

DECAL

- Case, with treads, right-hand side, 5 inch (127 mm) high, brown models

1шт.

8

179181A2

DECAL

- Case, with stripes, right-hand side, 5 inch (127 mm) high, gray models

1шт.

9

D124236

DECAL

- Case, with treads, 4 inch (102 mm) high, rear door, brown models

1шт.

10

179177A2

DECAL

- Case, with stripes, 4 inch (102 mm) high, gray models

1шт.

11

D123964

DECAL

- uni-loader, brown

2шт.

12

321-5850

DECAL

- bucket control, if used

1шт.

13

139593A1

DECAL

- bucket control, graphic

1шт.

14

321-5849

DECAL

- loader arm control, if used

1шт.

15

139592A1

DECAL

- loader arm control, graphic

1шт.

16

321-5847

DECAL

- throttle, slow-fast, graphic, black turtle symbol up on white background, if used

1шт.

17

178662A1

DECAL

- throttle, slow-fast, graphic, white rabbit symbol up on black background, if used

1шт.

18

321-6719

DECAL

- Warning, batteries contain acid and explosive gas (French)

1шт.

19

321-6701

DECAL

- Warning, check and service cooling system (French)

1шт.

20

D136506

DECAL

- Raised/Lowered, parking latch and operators restraint instructions (French), used on models with dual seat bars

1шт.

21

175511A1

ADHESIVE

DECAL - hydraulic fluid, use SAE 15W/40 oil (French), HTO additive is required

1шт.

22

321-6620

DECAL

- Warning, before starting engine, fasten seat belt (French)

1шт.

23

321-6792

DECAL

- Warning, if you service the machine with loader lift arms raised (French)

1шт.

Выбрано товаров: 23
