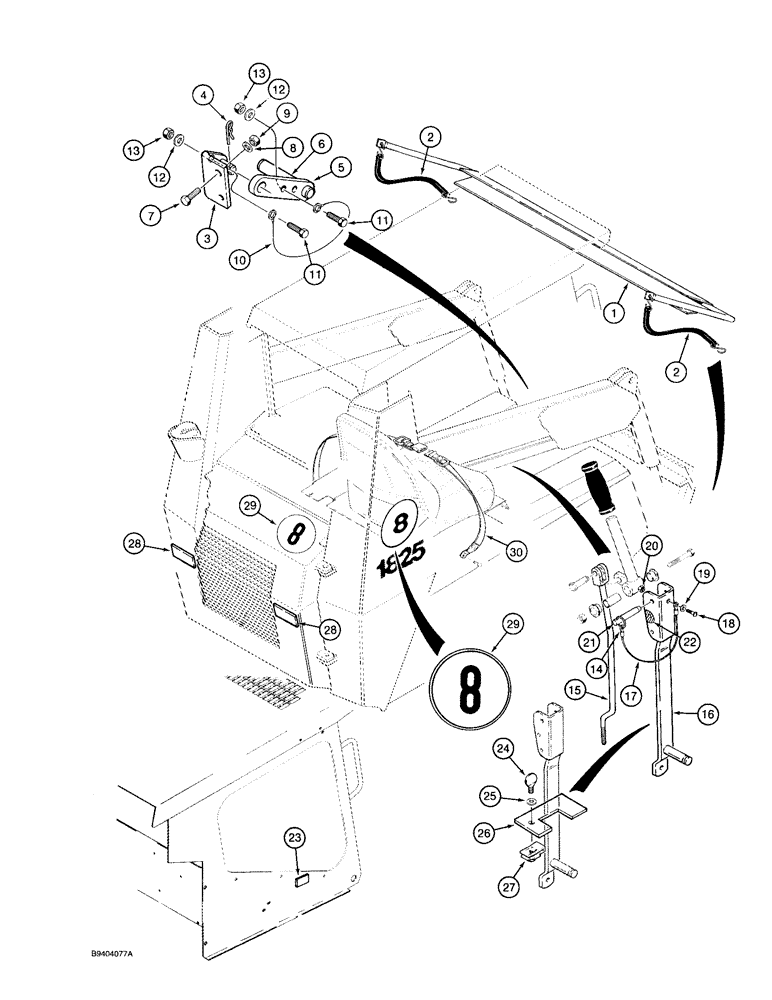

Запчасти Case IH 1825 (9-30) - SPECIAL PARTS FOR GERMANY (TUV APPROVED), P.I.N. JAF0096608 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

118765A1

GUARD ASSY.

GUARD - bucket

1шт.

2

E20151

STRAP

- rubber, tool bag

2шт.

3

111366A1

ANGLE

BRACKET - mounting, bucket locking link

2шт.

4

A30338

PIN

- self-locking, special

2шт.

5

115795A1

LINK

- bucket locking

2шт.

6

118728A1

PIN,22.22mm OD x 187mm L

- tilt cylinder rod

2шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

8

H274894

WASHER

- flat, special

2шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

10

L78786

CABLE RETAINER

CABLE - retainer, locking link

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

14

223-54

TERMINAL CONNECTOR,10 - 12

TERMINAL - eyelet, 10-12 wire x 1/4 inch screw size, to pin

4шт.

15

118307A1

ROD ASSY.

ROD - control

2шт.

16

118309A1

LEVER

- control

2шт.

17

H439278

ELECTRICAL WIRE

CABLE - retainer, strut and door pin lock

2шт.

18

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

2шт.

19

495-31022

WASHER,#10

4шт.

20

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

21

H437134

LINCH PIN,6.3mm OD

PIN - self-locking

2шт.

22

H439133

DECAL

- Grease Fitting Location (German)

2шт.

23

124910A1

DECAL

- loader control lock (German/Italian)

2шт.

24

H65847

THUMB SCREW,5/16" - 18 x 3/4"

- thumb, engine panel

2шт.

25

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

26

119637A1

BAR

- control stop

2шт.

27

H346650

NUT

- U-type, 5/16 inch NC

2шт.

28

121573A1

REFLECTOR,94mm L X 44mm W

- red

1шт.

29

112387A1

DECAL

- travel speed, (8 k.p.h.)

3шт.

30

126560A1

SAFETY BELT

SAFETY BELT, EEC approved, 48 mm wide

1шт.
