Запчасти Case IH 1825 (9-28) - SPECIAL PARTS FOR GERMANY (TBG APPROVED) (09) - CHASSIS/ATTACHMENTS

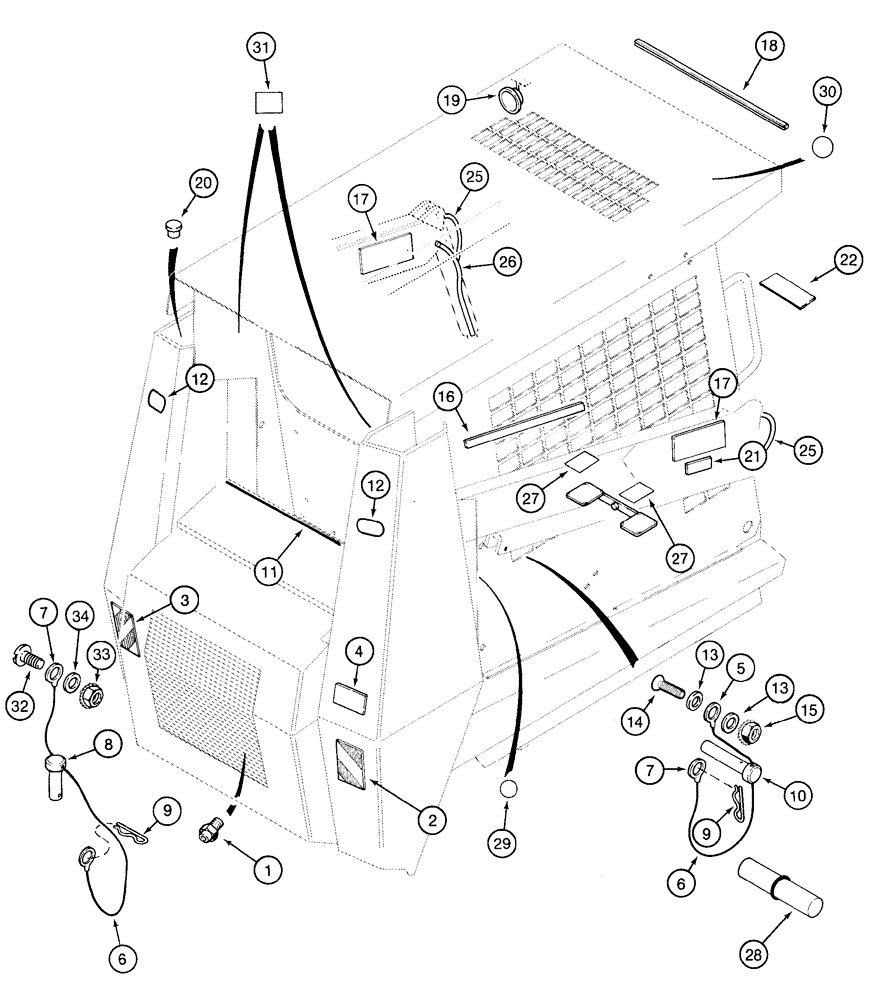

Схема запчастей Case IH 1825 - (9-28) - SPECIAL PARTS FOR GERMANY (TBG APPROVED) (09) - CHASSIS/ATTACHMENTS
13
32
12
30
7
16
18
28
8
31
19
22
17
11
17
4
33
21
6
29
20
3
25
25
12
5
6
13
7
26
9
10
27
1
15
34
9
2
14
27

Артикул

Название

Примечание

Количество

1

E20143

PLUG

- auto oil drain, includes actuator handle

1шт.

2

E20142

DECAL

- reflector, right-hand

1шт.

3

E20141

DECAL

- reflector, left-hand

1шт.

4

321-2299

DECAL

- engine access, engine access

1шт.

5

223-56

TERMINAL CONNECTOR,10 - 12

- eyelet, 10-12 wire x 3/8 inch screw size, to pin

1шт.

6

H439278

ELECTRICAL WIRE

CABLE - retainer, strut and door pin lock

2шт.

7

223-54

TERMINAL CONNECTOR,10 - 12

TERMINAL - eyelet, 10-12 wire x 1/4 inch screw size, to pin

3шт.

8

H439276

PIN,12mm OD x 50mm L

rear door lock

1шт.

9

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

10

102383A1

PIN,9.5mm OD x 63mm L

- support strut, lift arm

1шт.

11

D73120

LINING

TRIM - edge, rear door, cut from F42827 bulk trim, see below

1шт.

12

H439133

DECAL

- Grease Fitting Location (German)

2шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

10шт.

14

473-13112

SCREW,Slotted Flat Hd, 5/16"-18 x 3/4"

- machine, flat head slotted, 5/16 NC x 3/4 inch

1шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

16

102382A1

DECAL

- warning, lift arm support strut

1шт.

17

321-6181

DECAL

- Warning, loader arm (German), loader arm

2шт.

18

E20238

PAD

- head protection

1шт.

19

E99967

REAR VIEW MIRROR

MIRROR - rear view, wide angle

1шт.

20

E82545

CAP

- grease fitting, protective, red

14шт.

21

106868A1

DECAL

- Warning, operator exit

1шт.

22

D55310

ADHESIVE

STRIP - non-skid, black, 1 x 10 inch long

4шт.

25

E20148

FLEXIBLE HOSE

HOSE, 14-9/16 inch, to closed end of bucket cylinders

2шт.

26

E20149

HOSE

17-3/4 inch, to rod end of bucket cylinders

2шт.

27

D55216

PAD,2" x 9"

PAD - anti-skid

2шт.

28

E20152

BAG-TOOL

BAG - tool, store under floor plate

1шт.

29

111767A1

DECAL

- hydraulic cap, red

1шт.

30

321-4046

DECAL

ear noise protection

1шт.

31

124607A1

COVER

- key

2шт.

32

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

1шт.

33

825-1405

NUT,M5, Cl 8

1шт.

34

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 116 inch (2946 mm) long

1шт.

Выбрано товаров: 33
