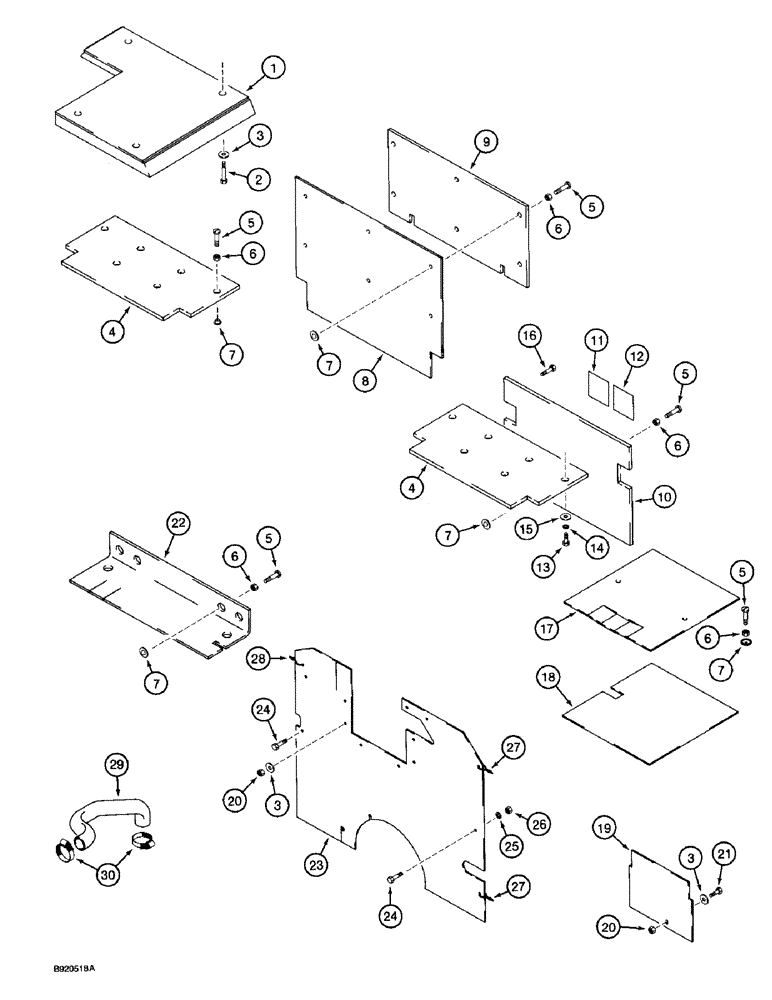

Запчасти Case IH 1825 (9-26) - NOISE KIT - 89DB EEC APPROVED, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS

1

102965A1

INSULATOR

PAD - roof, brown

1шт.

1a

102965A2

INSULATOR

PAD - roof, gray

1шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

3

D136108

WASHER

- special, hardened

11шт.

4

109289A1

NOISE PROTECTION

PAD - seat plate

2шт.

5

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

20шт.

6

825-1405

NUT,M5, Cl 8

20шт.

7

E99641

CAP

- bolt end cover

20шт.

8

109736A1

INSULATOR

PAD - engine firewall, outer

1шт.

9

E99949

PANEL

PAD - engine fire wall, inner

1шт.

10

E20172

INSULATOR

PAD - heel plate

1шт.

11

E20702

DECAL

- operator ear, 89 LPA, brown

1шт.

11a

178666A1

DECAL

- operator ear, 89 LPA, gray, appears same as ref 11

1шт.

12

E20701

DECAL

- bystander, 106 LWA, brown

1шт.

12a

178667A1

DECAL

- bystander, 106 LWA, gray, appears same as ref 12

1шт.

13

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

16

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, auxiliary control valve

2шт.

17

E20167

FLOOR MAT

PAD - floor plate

1шт.

18

E20173

PANEL

PAD - floor plate

1шт.

19

109285A1

CURTAIN

PAD - battery box

1шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

7шт.

21

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

22

E20096

PANEL

PAD - rear door, lower

1шт.

23

109284A2

CURTAIN

PAD - engine, was 109284A1

1шт.

24

413-538

BOLT,Hex, 5/16" - 18 x 2-3/8", Gr 5

- hex, 5/16 NC x 2-3/8 inch

2шт.

25

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

H437006

HOSE

- radiator, upper

1шт.

30

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces 214-1432) #28, 1.31/2.25 Type F Worm

1шт.
