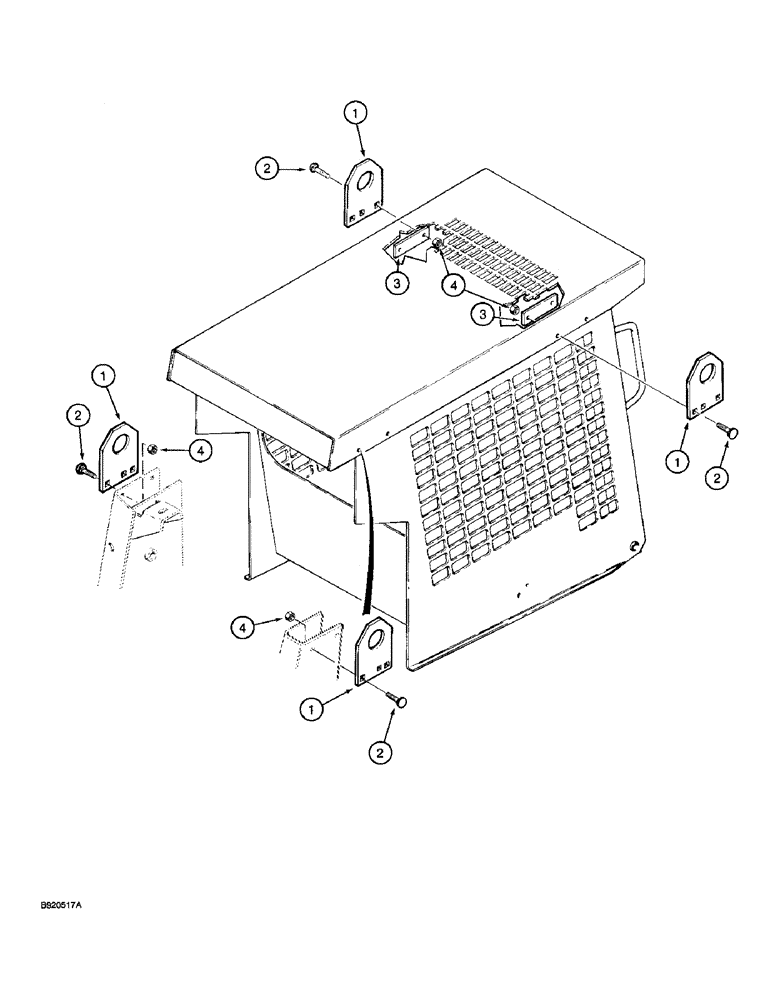

Запчасти Case IH 1825 (9-22) - LIFT BRACKETS (09) - CHASSIS/ATTACHMENTS

1

111777A1

LARGE PLATE

BRACKET - lift (Use with FOPS only) was H439135

4шт.

1

111665A1

LARGE PLATE

BRACKET - lift (Use with ROPS only) was D132975

4шт.

2

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

8шт.

3

D132976

BAR

PLATE - reinforcing

4шт.

4

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

8шт.
