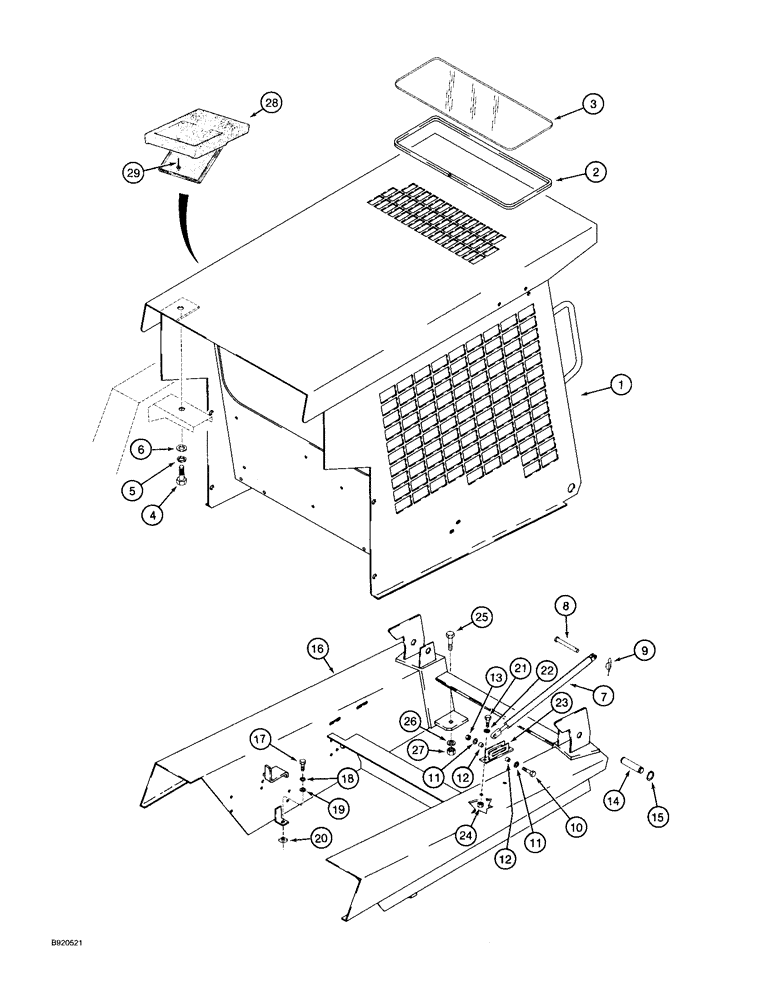

Запчасти Case IH 1825 (9-18) - FOPS/ROPS AND ROPS - PUNCHED (09) - CHASSIS/ATTACHMENTS

1

H674961

FRAME

- FOPS/ROPS, punched (European Models)

1шт.

1

105856A1

CAB

FRAME - ROPS, punched (European Models)

1шт.

1a

104720A1

ISOLATOR

FRAME - ROPS, (North American Models), not shown, see ROPS kits shown below, Start Serial: JAF0096163

1шт.

2

103863A1

SEALING STRIP

SEAL - window, top

1шт.

3

103861A1

WINDOW ASSY

WINDOW - top, as shown without two mounting holes

1шт.

3a

144267A1

WINDOW ASSY

WINDOW - upper, not shown, same as ref 3 except has two 5 mm holes to use with two each of 840-1520 screws, 103777A1 sealing washers and E99641 bolt end covers for, Serial Range: fastening-ROPS

1шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

7

104620A1

SPRING

CYLINDER - spring/gas, used with 104720A1 or 105856A1 ROPS

2шт.

7

103093A1

GAS STRUT,599mm Extended, 462mm Compressed

CYLINDER - spring/gas, used with H674961 FOPS/ROPS

2шт.

8

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

2шт.

9

H436613

COTTER PIN

PIN - cotter, special

2шт.

10

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

12

103563A1

SPACER

10 mm long

4шт.

13

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

14

D120704

PIN,19.05mm OD x 88mm L

- pivot

2шт.

15

100-1175

SNAP RING,#75, Ext

Ring, Snap, , was T25683 #75, Ext

4шт.

16

103864A2

FRAME

- operators compartment

1шт.

#16 is a POD not a ROD as shown on 3270 screen

1шт.

17

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

H426775

WASHER

- flat, special, hardened

2шт.

20

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC

2шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

23

103566A1

SUPPORT

BRACKET - guide

2шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

25

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

26

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

27

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

28

R46464

CASE

BOX - operators manual

1шт.

29

151-522

RIVET,Pop, 3/16" x .575"

- break mandrel, 3/16 x 17/32 inch

3шт.

182956A1

ROPE

KIT - ROPS, brown, punched, includes ref 1A above, 11 decals, and manual storage box, order from wholegoods

1шт.

189618A1

SET OF PARTS

KIT - ROPS, gray, punched, includes ref 1A above, 11 decals, and manual storage box, order from wholegoods

1шт.

108169A1

KIT - FOPS, brown, punched

1шт.

189659A1

KIT

- FOPS, gray, punched

1шт.
