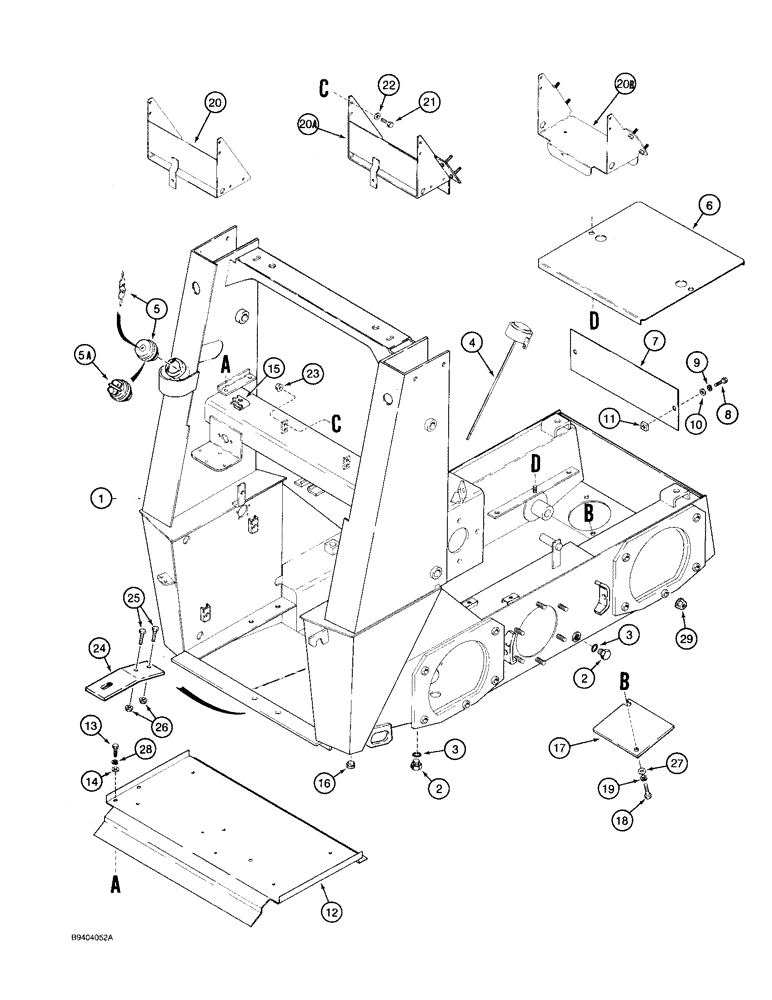

Запчасти Case IH 1825 (9-02) - CHASSIS AND COVERS (09) - CHASSIS/ATTACHMENTS

1

H674004

FRAME

CHASSIS - Uni-Loader, Serial Range: -JAF0096515

1шт.

1

118982A2

CHASSIS

- Uni-Loader, was 118982A1, Start Serial: JAF0096515

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 3 Hex Soc, 3/4"-16 ORB

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

D136181

CAP

- hydraulic oil reservoir, includes dipstick

1шт.

5

108925A1

FILLER CAP

CAP - fuel tank, locking, European Models

1шт.

The dealer can order 108925A1 locking cap for NA even though the book states that it should be for Europe. There is not a locking cap for the hydraulic oil filter.

1шт.

5a

D93757

CAP

- fuel tank, North Averican Models

1шт.

6

D135019

PLATE

- floor

1шт.

7

D135043

PLATE

- access

1шт.

8

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

11

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

12

H437295

HOOD ASSY.

COVER - battery

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

14

H426767

WASHER

- flat, 1/4 inch, hardened

4шт.

15

131-631

SPRING NUT,U, Ret, 1/4"-20

- U-type, 1/4 inch NC

4шт.

16

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- square socket, 3/8 inch PT

2шт.

17

H436914

LARGE PLATE

COVER - access

2шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20

D92394

BATTERY BOX

BOX - battery mounting (North American Models)

1шт.

20a

108735A1

BOX

- battery mounting (European Models) for service, order Ref. 20B

1шт.

20b

122480A1

BOX

- battery mounting (European Models)

1шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

4шт.

24

H437728

SUPPORT

DRAWBAR - optional

1шт.

25

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

26

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

29

D44567

PLUG

NUT - flange, special

20шт.
