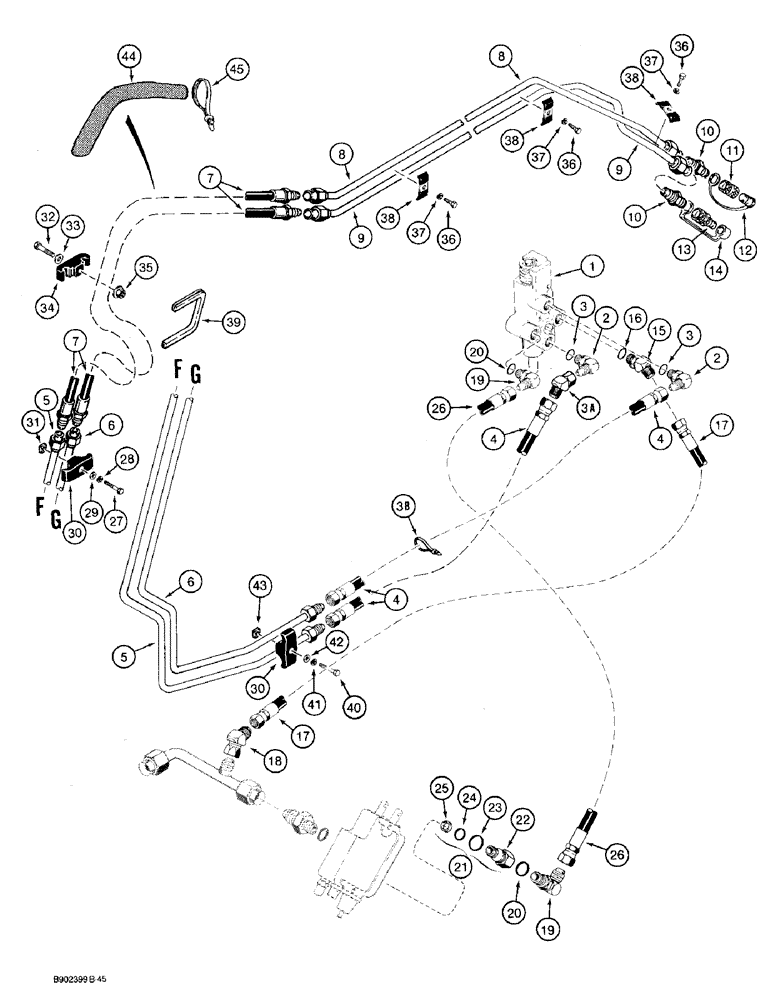

Запчасти Case IH 1825 (8-24) - AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
D64670
VALVE
ASSEMBLY - control, auxiliary, parts list Fig. 8-18
1шт.
2
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 3
2шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
3a
218-5173
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC
- 45 degree, 3/4-16 inch flare x swivel str thread
1шт.
3b
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
4
H674577
HOSE
- 812 mm long, at aux control valve to rear tubes
2шт.
5
H674477
TUBE,12.7 mm OD x 577, 103 mm L
- rear, port "A"
1шт.
6
H674476
TUBE,12.7 mm OD x 523, 103 mm L
- rear, port "B"
1шт.
7
D124674
HOSE,9.53mm ID x 950mm L, SAE 100R2
- 950 mm long, intermediate
2шт.
8
H674481
TUBE,0.5" OD
- front, to quick disconnect
1шт.
9
H674480
TUBE,0.5" OD
- front, to quick disconnect
1шт.
10
218-444
HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF
ADAPTER - straight, 3/4-16 flare x 3/8 inch PT
2шт.
11
D60707
COUPLING, BREAK AWAY
COUPLING - quick disconnect, female
1шт.
12
D62402
PLUG
- dust, at female quick disconnect
1шт.
13
D60708
COUPLING, BREAK AWAY
COUPLING - quick disconnect, male
1шт.
14
H437970
PLUG
CAP - dust, at female quick disconnect
1шт.
15
218-5137
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 45 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref 16
1шт.
16
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
17
A141008
HOSE,0.50" ID x 16.00", SAE 100R2
- Outlet port of loader control valve to outlet port of auxiliary control valve 0.50" ID x 16.00", SAE 100R2
1шт.
18
218-5174
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC
- 45 deg, 7/8-14 inch flare x swivel straight thread
1шт.
19
218-5136
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 20
2шт.
20
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
21
H436154
FITTING,7/8" - 14
SLEEVE ASSEMBLY - power beyond, Includes: Ref. 22 - 25
1шт.
22
NSS
NOT SOLD SEPARAT
SLEEVE - power beyond
1шт.
23
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
24
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
25
A52424
BACK-UP RING
RING - backup, sleeve
1шт.
26
R35829
HOSE
- 21 inch long, inlet port of auxiliary control valve to side port of loader control valve, was D28524
1шт.
27
413-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
- hex, 5/16 NC x 1-1/4 inch
2шт.
29
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
1шт.
30
D120679
CLAMP,Tube, 1/2"
- rear tube
2шт.
31
224-2245
SQUARE NUT,Sq, 5/16"-18, G2
- square, 5/16 inch NC
1шт.
32
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
- hex, 3/8 NC x 2 inch
1шт.
33
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch) 3/8"
1шт.
34
D124301
CLAMP,3/4" ID
- hose
1шт.
35
231-5146
FLANGE NUT,3/8"-16
1шт.
36
413-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
- hex, 5/16 NC x 1/2 inch
3шт.
38
A63323
CLAMP
- tube at loader arms
3шт.
39
D38500
LINING
TRIM - edge, 9-13/16 inch (249 mm) long, upper chassis, cut from F42827 bulk trim, see below
1шт.
40
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch
1шт.
41
492-11038
LOCK WASHER,3/8"
1шт.
42
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch) 3/8"
1шт.
43
84899
SQUARE NUT,Sq, 3/8"-16, G2
- square, 3/8 inch NC
1шт.
44
135159A1
LOOM
SLEEVE - hose, European Models only
1шт.
45
L18331
CABLE TIE,375.9mm L, Nylon, Black
STRAP - nylon, retaining, used with Ref. 45
1шт.
F42827
TRIM,2946.4mm L
TRIM - edge, bulk, 116 inch (2946 mm) long
1шт.
Выбрано товаров: 48
