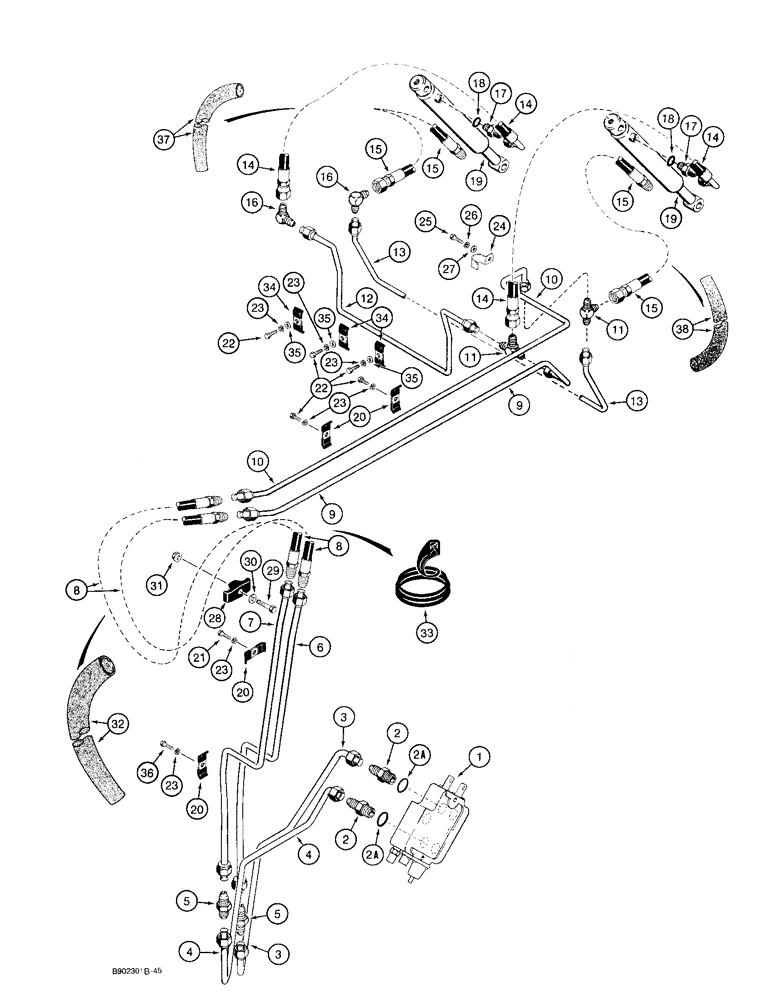

Запчасти Case IH 1825 (8-22) - LOADER BUCKET TILT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, loader, for correct assembly and components see page 8-7

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 2A

2шт.

2a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

D122505

PIPE

TUBE - at control valve, port A

1шт.

4

D122507

RIGID TUBE

TUBE - at control valve, port B

1шт.

5

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare

2шт.

6

D136940

PIPE

TUBE - intermediate, to closed end of bucket tilt cylinders

1шт.

7

D136938

RIGID TUBE

TUBE - intermediate, to rod end of bucket tilt cylinders

1шт.

8

D122103

HOSE

- 37-3/8 inch (950 mm) long, at loader arm

2шт.

9

D138787

PIPE

TUBE - to closed end of bucket tilt cylinders

1шт.

10

D138789

PIPE

TUBE - to rod end of bucket tilt cylinders

1шт.

11

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

12

D138793

PIPE

TUBE - crossover, to closed end of bucket tilt cylinder

1шт.

13

D138791

PIPE

TUBE - crossover, to rod end of bucket tilt cylinder

1шт.

14

D138813

HOSE,9.53mm ID x 370mm L, SAE 100R1

- 370 mm long, to closed end of bucket tilt cylinders

2шт.

15

D138814

HOSE

- 450 mm long, to rod end of bucket tilt cylinders

2шт.

16

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degree, 9/16-18 inch flare

2шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 18

2шт.

19

D136128

CYLINDER

ASSEMBLY - bucket tilt, parts list Fig. 8-30, for service order 104517A1, Serial Range: -JAF0096313

2шт.

19a

104517A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket tilt, parts list Fig. 8-32 JAF0096313 to

2шт.

20

R17319

CLAMP

- tube, was H434900

4шт.

21

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

22

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

5шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

24

D140709

CLAMP

- crossover tube, was 49778

1шт.

25

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

28

D124301

CLAMP,3/4" ID

- hose

1шт.

29

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

31

231-5146

FLANGE NUT,3/8"-16

1шт.

32

H437219

TUBE

SLEEVE - hose, North American Models only

1шт.

32

135159A1

LOOM

SLEVE - hose, European Models only, not shown

1шт.

32a

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, retaining, used with 135159A1 sleeve only

1шт.

33

D38500

LINING

TRIM - edge, 9-13/16 inch (249 mm) long, hoses at loader arm, cut from F42827 bulk trim, see below

1шт.

34

H45468

CLAMP

- crossover tubes

3шт.

35

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

36

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

37

H434724

LOOM

SLEEVE - hose, 390 mm long, closed end of bucket cylinder European machines P.I.N. JAF0140357 And After, was 128775A1

2шт.

38

H434724

LOOM

SLEEVE - hose, 290 mm long, rod end of bucket cylinder European machines P.I.N. JAF0140357 And After, was 135157A1

2шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 116 inch (2946 mm) long

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
