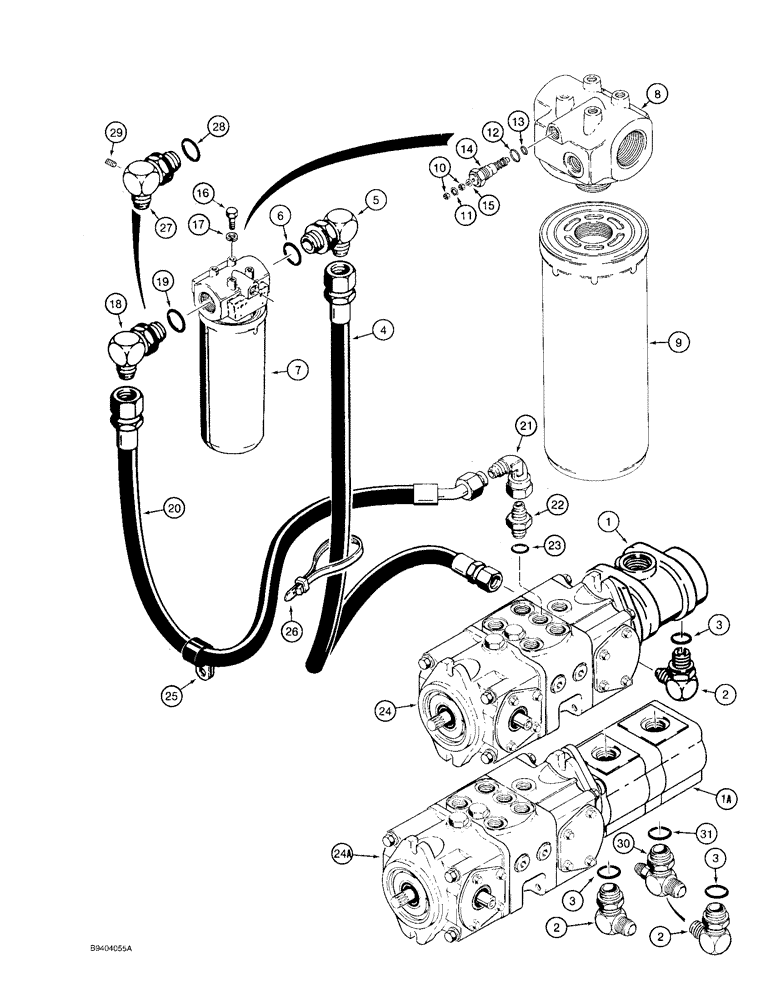

Запчасти Case IH 1825 (8-02) - HYDRAULIC OIL FILTER CIRCUIT, TANDEM PUMP, EQUIPMENT PUMP, AND HYDRAULIC OIL FILTER (08) - HYDRAULICS

1

D136150

PUMP

ASSEMBLY - hydraulic, equipment, parts list Fig. 8-04, Serial Range: -JAF0096590

1шт.

1a

120882A1

PUMP

ASSEMBLY - hydraulic, equipment, parts list Fig. 8-06, Start Serial: JAF0096590

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 3

1-2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D91258

HOSE

- 1150 mm long, hydraulic equipment pump to oil filter

1шт.

5

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring, Includes: Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

7

D121629

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic oil, Includes: Ref. 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

HEAD - filter, bypass valve components are not serviced separately

1шт.

9

D122562

FILTER, ELEMENT

ELEMENT - filter

1шт.

N13268

PRESSURE SWITCH

INDICATOR ASSEMBLY - restriction, electrical, Includes: Ref. 10 - 15

1шт.

10

129-667

NUT,#10-32, LH

Chamferred #10-32, LH

2шт.

11

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

13

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

14

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, electric

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - identification, red/white color

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

D131329

FITTING

ELBOW - 90 degree, special, no longer required, order Ref. 27 elbow and Ref. 29 plug for service, Includes: Ref. 19

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

20

D135950

HOSE

- 1100 mm long, hydraulic oil filter to tandem pump

1шт.

21

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel flare

1шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

H673523

PUMP

ASSEMBLY - tandem, parts list Fig. 6-04, For all European Units Prior to P.I.N. JAF0140357 and all North American Units

1шт.

24a

142808A1

PUMP

ASSEMBLY - tandem, parts list pages 6-5 and 6-7, For European Units with P.I.N. JAF0140357 And After

1шт.

25

51200320

CLAMP

- hose, use existing mounting hardware, if used

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

R54917

FITTING

ELBOW - 90 degree, special, was H438518, Includes: Ref. 28

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

29

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

2шт.

30

139530A1

TEE

- special (European machines only with P.I.N. JAF00140357 and after, Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
