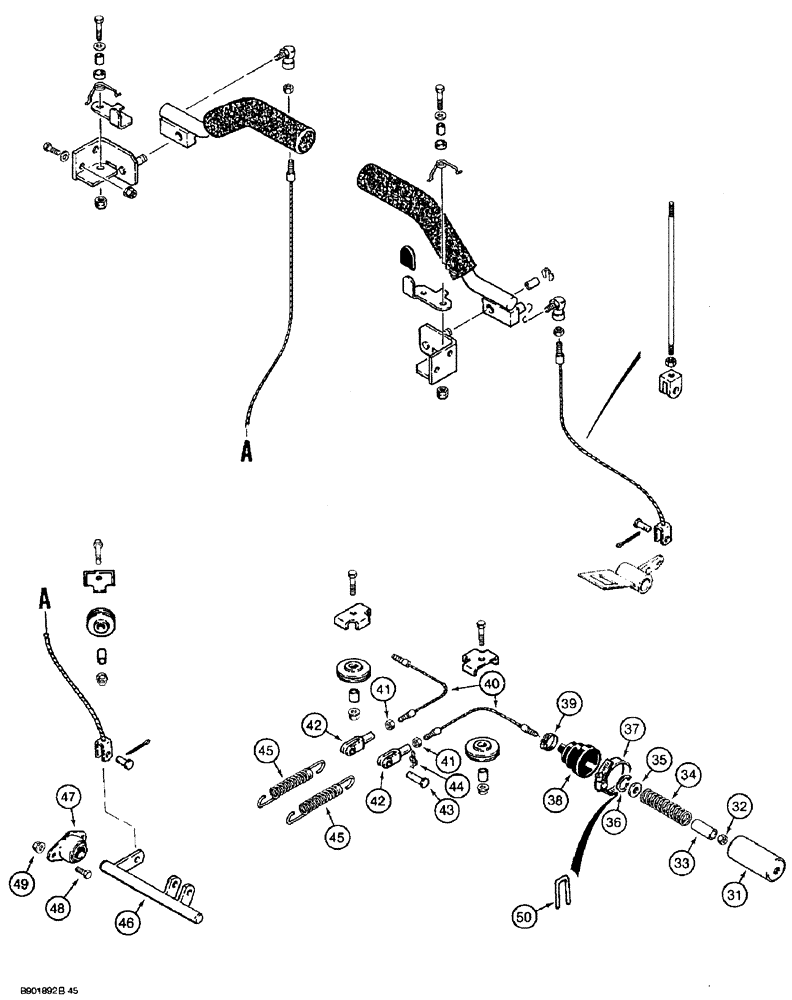

Запчасти Case IH 1825 (7-04) - PARKING LATCH AND SEAT BARS (CONTD) (07) - BRAKES

31

D64228

PIN,25.45mm OD x 53.34mm L

- lower cable

2шт.

32

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

2шт.

33

H435266

SPACER

- lower cable spring

2шт.

34

D91040

SPRING

- lower cable

2шт.

35

495-81108

WASHER,.281" x 1" x .109"

- flat, 9/32 x 1 x 1/8 inch

2шт.

36

100-21100

SNAP RING,1.00", Int, #100

Ring, Snap, , was A37550 1.00", Int, #100, Serial Range: -JAF0075005

2шт.

37

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

2шт.

38

D70018

BOOT

- rubber, seal

2шт.

39

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

40

H438470

CABLE,347mm L

- at center pulleys, lower (replaces D137768)

2шт.

41

425-114

NUT,1/4"-28, G5

2шт.

42

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS, ADJUSTABLE, 1/4"-28

2шт.

43

427-4077

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 x 43/64 inch

2шт.

44

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER - clevis pin

2шт.

45

D127347

SPRING

- shaft

2шт.

46

H674546

SHAFT

- parking brake

1шт.

47

D139039

BEARING ASSY,19mm ID

BEARING - cross shaft mounting

2шт.

48

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

49

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

4шт.

50

H438614

CLIP

- retaining, Start Serial: JAF0075005

2шт.
