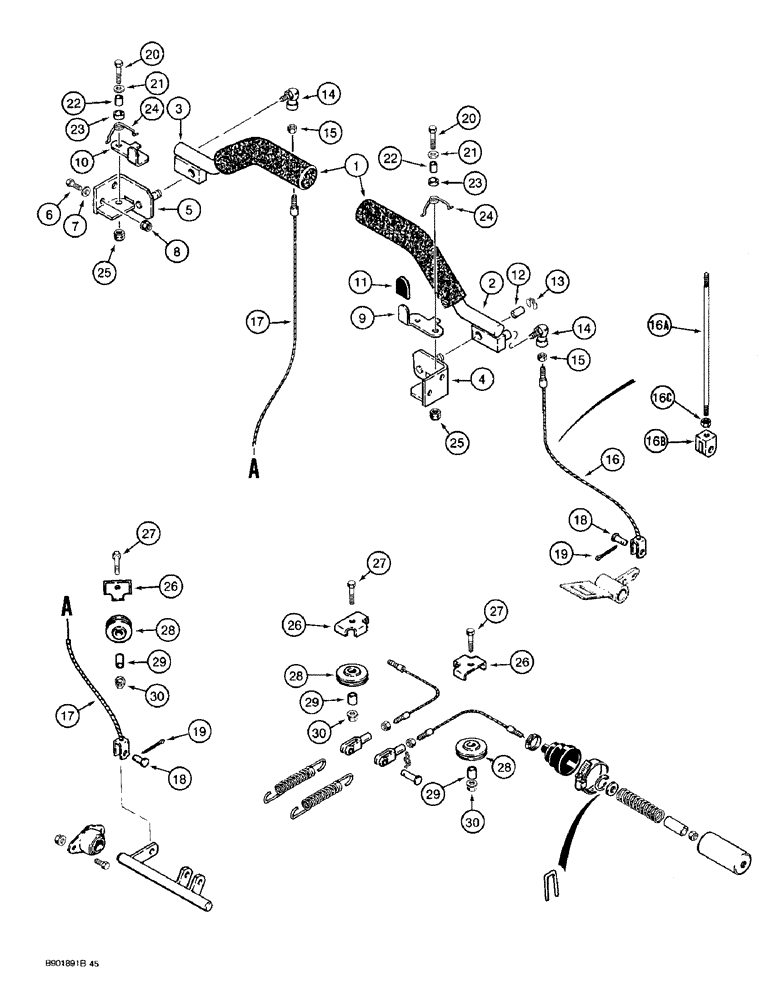

Запчасти Case IH 1825 (7-02) - PARKING LATCH AND SEAT BARS (07) - BRAKES

1

H436484

GRIP

COVER - seat bars

2шт.

2

H674177

BAR

- seat, right-hand

1шт.

3

H674176

BAR

- seat, left-hand

1шт.

4

H435879

BRACKET

- right-hand mounting

1шт.

5

H435880

BRACKET

- left-hand mounting

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

8

131-931

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange, self-locking, 5/16 inch NC

4шт.

9

D131228

LATCH

- right-hand

1шт.

10

D131229

LATCH

- left-hand

1шт.

11

D134924

HANDLE

GRIP - vinyl, latch

2шт.

12

H435837

BUSHING,12.7mm ID x 14.45mm OD x 19.05mm L

- seat bars

2шт.

13

D143415

SNAP RING,0.50” ID, Klipring

RING - retaining

2шт.

14

H169920

BALL JOINT

JOINT - ball, 1/4 inch NF

2шт.

15

425-114

NUT,1/4"-28, G5

2шт.

16

H438468

CABLE

- right-hand, lock (replaces E99996) (no longer available) for service, order Ref. 16A, 16B, and 16C, Serial Range: -JAF0096515

1шт.

16a

120237A1

ROD

- right-hand, lock JAF0096515 to

1шт.

16b

213-115

ADJUSTABLE CLEVIS,5/16" - 24

YOKE - rod, used with Ref. 16A

1шт.

16c

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF, Used with Ref. 16A

1шт.

17

H438504

CABLE,670mm L

- left-hand, park (replaces E20614)

1шт.

18

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

2шт.

19

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

22

H270777

SPACER

- at latch

2шт.

23

D44352

BUSHING

- at latch

2шт.

24

D134464

SPRING

- latch

2шт.

25

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

26

D124466

RETAINER

- cable

3шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

28

D124465

PULLEY,54mm OD

- cable

3шт.

29

D95743

SPACER

- cable pulley, was D95559

3шт.

30

231-5146

FLANGE NUT,3/8"-16

3шт.
