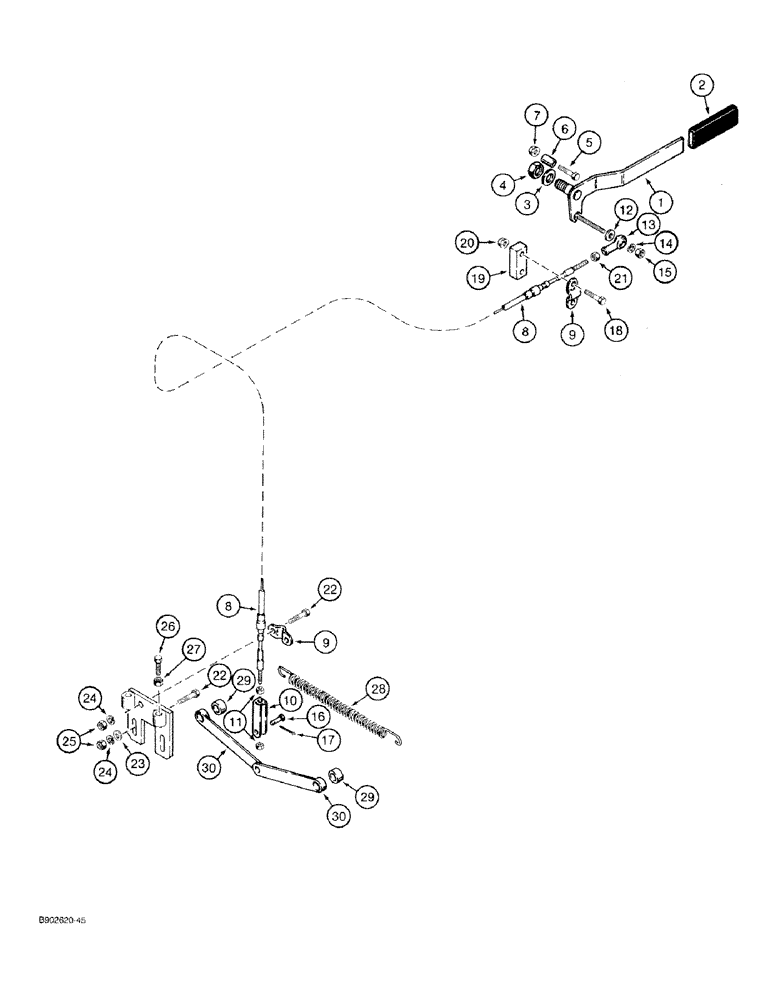

Запчасти Case IH 1818 (6-24) - BELT TENSION CONTROLS (06) - POWER TRAIN

1

D134270

HANDLE

belt clutch

1шт.

2

D128417

TRANSMISSION SLEEVE

GRIP handle

1шт.

3

195-545

WASHER,3/4", SAE

flat, 13/16 x 1-15/32 x 1/8 inch

1шт.

4

131-935

FLANGE NUT,Flg, 3/4"-10, G8

hex, self locking, 3/4 inch NC

1шт.

5

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

6

D88214

SPACER

handle

1шт.

7

231-5146

FLANGE NUT,3/8"-16

1шт.

D139326

CABLE

ASSEMBLY control, Includes: Ref. 8-11

1шт.

8

NSS

NOT SOLD SEPARAT

CABLE control

1шт.

9

D121608

CLAMP

cable

2шт.

10

D78423

CLEVIS

cable

1шт.

11

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16"), was P/N R46103

1шт.

13

A32398

BALL JOINT

JOINT ball, rod end, was P/N S108030

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN clevis, hardened, 5/16 x 15/16 inch

1шт.

17

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

18

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

19

D77920

PLATE

spacer

1шт.

20

231-5146

FLANGE NUT,3/8"-16

2шт.

21

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

4шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

2шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

425-106

NUT,3/8"-16, Cl 5

4шт.

26

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

27

425-106

NUT,3/8"-16, Cl 5

2шт.

28

D134736

SPRING

tension

1шт.

29

T28521

SPACER

link assembly, was P/N D78234

2шт.

30

H674089

ROD

LINK control

2шт.
