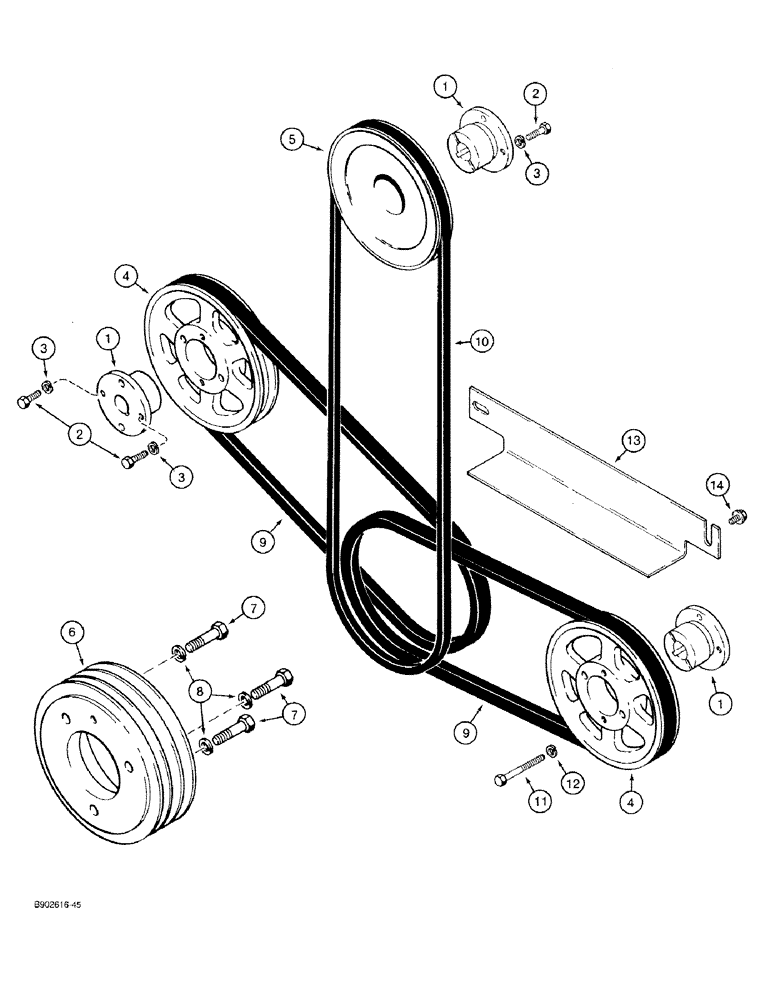

Запчасти Case IH 1818 (6-20) - SHEAVES AND DRIVE BELTS, DIESEL MODELS (06) - POWER TRAIN

D120028

BUSHING

ASSEMBLY, sheave, Includes: Ref. 1-3

3шт.

1

NSS

NOT SOLD SEPARAT

BUSHING sheave

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

D121239

SHEAVE

variable displacement pumps

2шт.

5

H437091

PULLEY

SHEAVE hydraulic equipment pump

1шт.

6

H437089

SHEAVE

engine

1шт.

7

514-730

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

8

892-11010

LOCK WASHER,M10

3шт.

9

H438262

V-BELT,12.70 mm W x 844.30 mm L

Engine to Variable displacement Pumps 12.70 mm W x 844.30 mm L

2шт.

10

S202900

BELT,1270.00 mm L

V-BELT , Engine to hydraulic equipment pump 1270.00 mm L

1шт.

11

113-79

BOLT

BOLT hex, 1/4 NC x 1-1/2 inch

2шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

D122384

ANGLE

belt keeper

1шт.

14

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

self locking Hex Flg, 5/16"-18 x 1/2", Serr

2шт.
