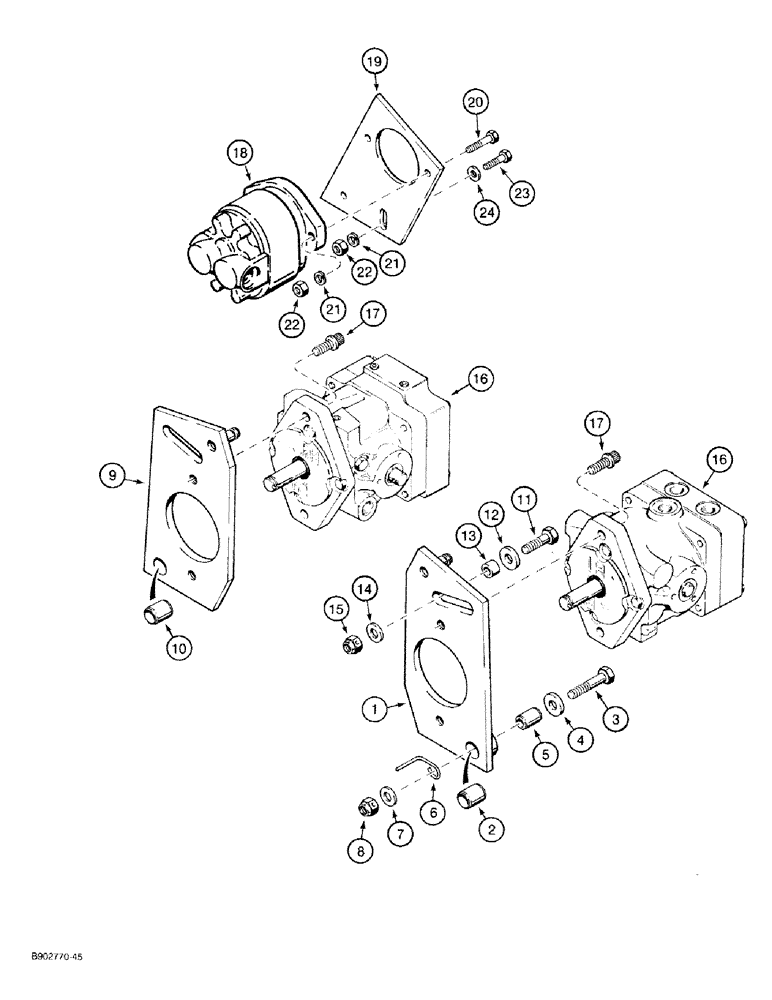

Запчасти Case IH 1818 (6-02) - PUMP MOUNTING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
D122390
PLATE
variable displacement pump mounting, right hand, Includes: Ref. 2
1шт.
2
D78700
BUSHING
mounting plate
1шт.
3
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
hex, 1/2 NC x 2-1/2 inch
2шт.
4
D73296
WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk
special, hardened
2шт.
5
D78701
BUSHING
SPACER plate, lower
2шт.
6
D122463
SUPPORT
GUIDE belt
2шт.
7
195-533
WASHER,1/2", SAE
- flat, 17/32 x 1-1/16 x 3/32 inch
2шт.
8
232-4118
NUT,1/2"-13, GC
NUT, LOCK, 1/2"-13, GC
2шт.
9
D122389
PLATE
variable displacement pump mounting, left hand, Includes: Ref. 10
1шт.
10
D78700
BUSHING
mounting plate
1шт.
11
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
2шт.
12
495-81025
WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk
flat, 17/32 x 1-1/4 x 5/32 inch
2шт.
13
H437263
SPACER
plate, upper
2шт.
14
195-533
WASHER,1/2", SAE
- flat, 17/32 x 1-1/16 x 3/32 inch
2шт.
15
232-4118
NUT,1/2"-13, GC
NUT, LOCK, 1/2"-13, GC
2шт.
16
D75993
PUMP
ASSEMBLY variable displacement, see Figure 6-4, diesel models only
2шт.
16
D136764
PUMP
ASSEMBLY variable displacement, see Figure 6-8, gasoline models only
2шт.
16
87297996
REMAN-HYD PUMP
Remanufactured HYDRAULIC PUMP
2шт.
16
87297997
CORE-HYDRAULIC PUMP
Return No, HYDRAULIC PUMP
2шт.
17
166-85
12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8
BOLT 12 point, 1/2 NC x 1 inch, grade 8
4шт.
18
D134544
PUMP
ASSEMBLY hydraulic equipment, see Figure 8-2, diesel models only
1шт.
18
D136386
PUMP
ASSEMBLY hydraulic equipment, see Figure 8-4, gasoline models only
1шт.
19
H438270
SUPPORT
PLATE hydraulic equipment pump mounting
1шт.
20
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
hex, 3/8 NC x 1-1/2 inch
2шт.
21
492-11038
LOCK WASHER,3/8"
4шт.
22
425-106
NUT,3/8"-16, Cl 5
4шт.
23
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
hex, 3/8 NC x 1-1/4 inch
2шт.
24
496-21041
WASHER,13/32" x 13/16" x .089", HDN
flat, hardened, 13/32 x 13/16 x 3/32"
2шт.
Выбрано товаров: 28
