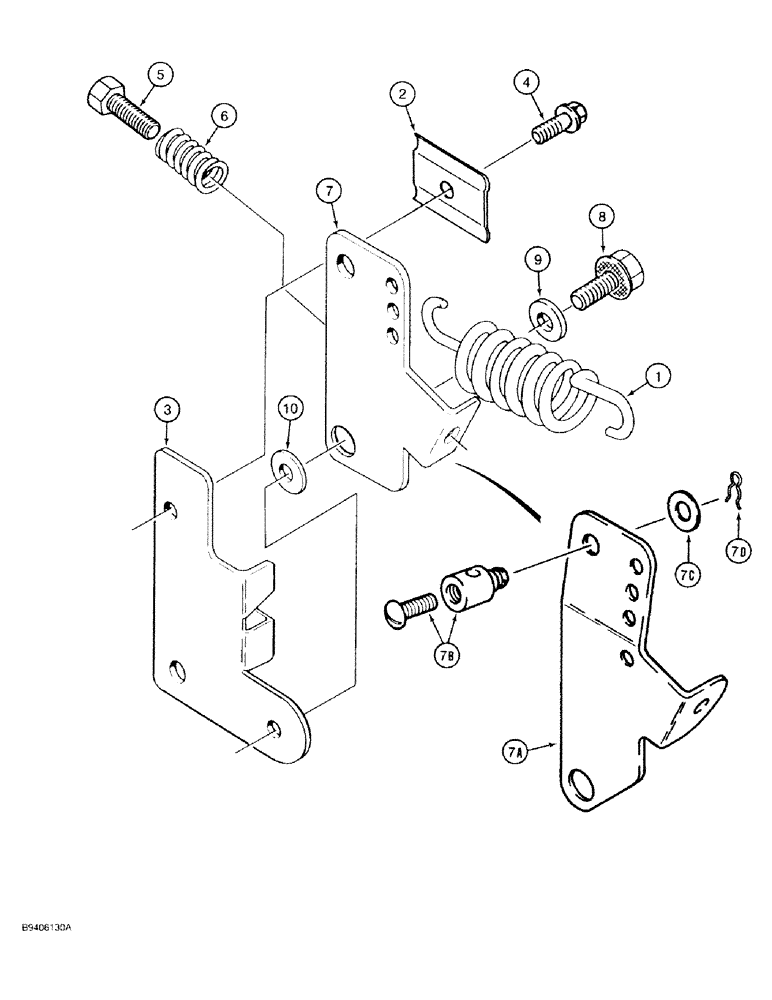

Запчасти Case IH 1818 (3-28) - GOVERNOR LINKAGE, GASOLINE MODELS (03) - FUEL SYSTEM

1

N9611

TENSION SPRING

SPRING return, governor

1шт.

2

N7433

CLAMP

cable

1шт.

3

N7434

BRACKET

cable, governor mounting

1шт.

4

1959078C1

CAPTIVE WASHER SCREW

SCREW washer head, slotted, No. 10

1шт.

5

1959094C1

SCREW

hex head, special

1шт.

6

74249C1

COMPRESSION SPRING

SPRING governor idler setting

1шт.

7

N7435

ARM

governor control, Serial Range: -JAF0095713

1шт.

7a

C20369

ARM

1шт.

7b

NSS

NOT SOLD SEPARAT

SWIVEL

1шт.

Swivel does not include the bolt, order P/N 614-4008 bolt separately.

1шт.

8

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

was P/N 161100C1 Hex Flg, 1/4"-20 x 1/2", Serr

2шт.

9

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch

2шт.

10

N9610

BUSHING

governor control arm

1шт.

7a

143047A1

ARM

governor idle setting JAF0095713 to

1шт.

Part of Throttle Kit P/N 128701A1, also see Figure 3-5A.

1шт.

7b

128703A1

BALL JOINT

SWIVEL cable

1шт.

Part of Throttle Kit P/N 128701A1, also see Figure 3-5A.

1шт.

7c

1959087C1

WASHER

7/32 x 3/8 inch x 18 gauge

1шт.

Part of Throttle Kit P/N 128701A1, also see Figure 3-5A.

1шт.

7d

136-2

PIN, SPLIT (COTTER)

PIN retaining

1шт.

Part of Throttle Kit P/N 128701A1, also see Figure 3-5A.

1шт.
