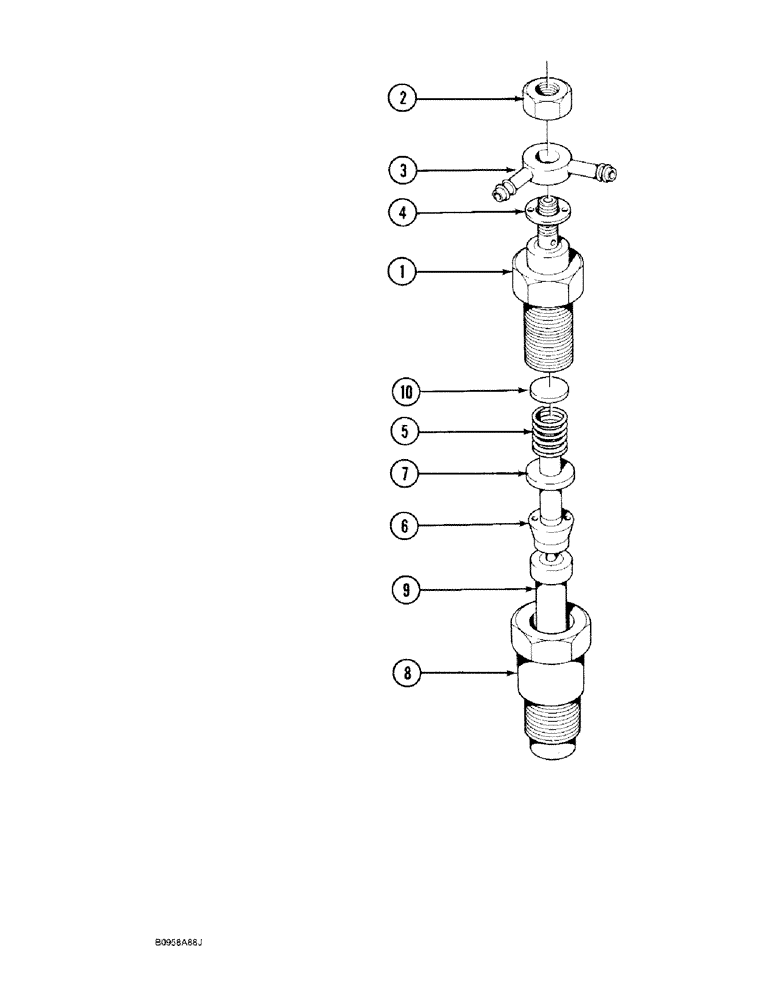

Запчасти Case IH 1818 (3-16) - NOZZLE ASSEMBLY, DIESEL MODELS (03) - FUEL SYSTEM

1959384C1

NOZZLE CAP

NOZZLE ASSEMBLY fuel injection, Includes: Ref. 1-10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY fuel injection nozzle, order P/N 1959384C1 nozzle assembly

1шт.

2

1959553C1

NUT

hex, fuel injection nozzle

1шт.

3

1959554C1

JOINT

FITTING barb, special

1шт.

4

1959555C1

WASHER

special

1шт.

5

1959556C1

SPRING

nozzle pressure

1шт.

6

1959557C1

SPACER

STOP nozzle

1шт.

7

1959558C1

ROD

push, nozzle

1шт.

8

1959559C1

NUT

cap, nozzle tie

1шт.

9

1959560C1

NOZZLE INJECTION

TIP nozzle

1шт.

503201R

1818 CASE UNI-LOADER (AFTER S/N JAF0069386), Reman for New P/N 1959560C1

REMAN-FUEL INJECTOR

1шт.

503201C

Return Number

CORE-FUEL INJECTOR

1шт.

10

1959561C1

WASHER

adjusting, standard

1шт.

10

1959562C1

WASHER

adjusting, 1.0 mm thick

1шт.

10

1959563C1

WASHER

adjusting, 1.05 mm thick

1шт.

10

1959564C1

WASHER

adjusting, 1.10 mm thick

1шт.

10

1959565C1

WASHER

adjusting, 1.15 mm thick

1шт.

10

1959566C1

WASHER

adjusting, 1.20 mm thick

1шт.

10

1959567C1

WASHER

adjusting, 1.25 mm thick

1шт.

10

1959568C1

WASHER

adjusting, 1.30 mm thick

1шт.

10

1959569C1

WASHER

adjusting, 1.35 mm thick

1шт.

10

1959570C1

WASHER

adjusting, 1.40 mm thick

1шт.

10

1959571C1

WASHER

adjusting, 1.45 mm thick

1шт.

10

1959572C1

WASHER

adjusting, 1.50 mm thick

1шт.

10

1959573C1

WASHER

adjusting, 1.55 mm thick

1шт.

10

1959574C1

WASHER

adjusting, 1.60 mm thick

1шт.

10

1959575C1

WASHER

adjusting, 1.65 mm thick

1шт.

10

1959576C1

WASHER

adjusting, 1.70 mm thick

1шт.

10

1959577C1

WASHER

adjusting, 1.75 mm thick

1шт.

10

1959578C1

WASHER

adjusting, 1.80 mm thick

1шт.

10

1959579C1

WASHER

adjusting, 1.85 mm thick

1шт.

10

1959580C1

WASHER

adjusting, 1.90 mm thick

1шт.

10

1959581C1

WASHER

adjusting, 1.95 mm thick

1шт.
