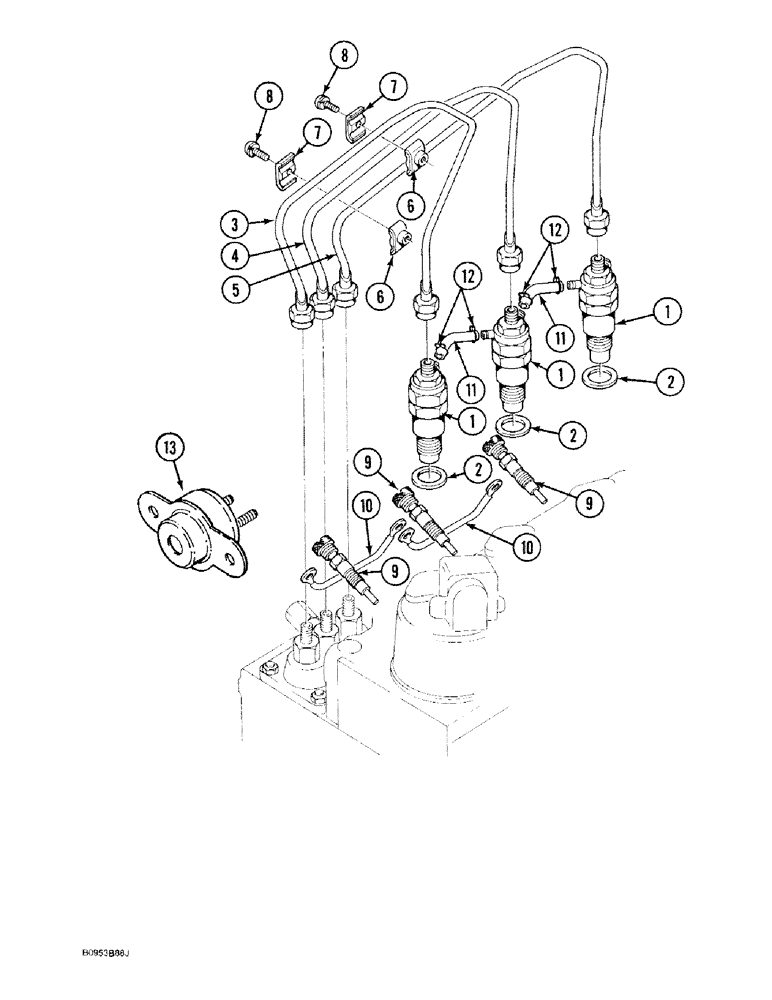

Запчасти Case IH 1818 (3-06) - FUEL INJECTION SYSTEM, DIESEL MODELS (03) - FUEL SYSTEM

1

1959384C1

NOZZLE CAP

NOZZLE ASSEMBLY fuel, see Figure 3-16

3шт.

2

1959385C1

WASHER

GASKET fuel injector

3шт.

3

1959386C1

PIPE

TUBE fuel injector, No. 1 cylinder

1шт.

4

1959387C1

FUEL TUBE

TUBE fuel injector, No. 2 cylinder

1шт.

5

1959388C1

PIPE

TUBE fuel injector, No. 3 cylinder

1шт.

6

1959393C1

HOSE CLIP

CLAMP cylinder tube

2шт.

7

1959394C1

HOSE CLIP

CLAMP cylinder tube

2шт.

8

1959395C1

SCREW

special

2шт.

9

1959396C1

GLOW PLUG

PLUG glow

3шт.

10

1959397C1

ELECTRICAL WIRE

WIRE glow plug

2шт.

11

1959399C1

PIPE

TUBE ASSEMBLY overflow, Includes: Ref. 12

2шт.

12

299486R1

HOSE CLAMP,#7, 7/16", Spring

CLAMP overflow tube

4шт.

13

1959598C1

RESISTOR

INDICATOR glow plug

1шт.
