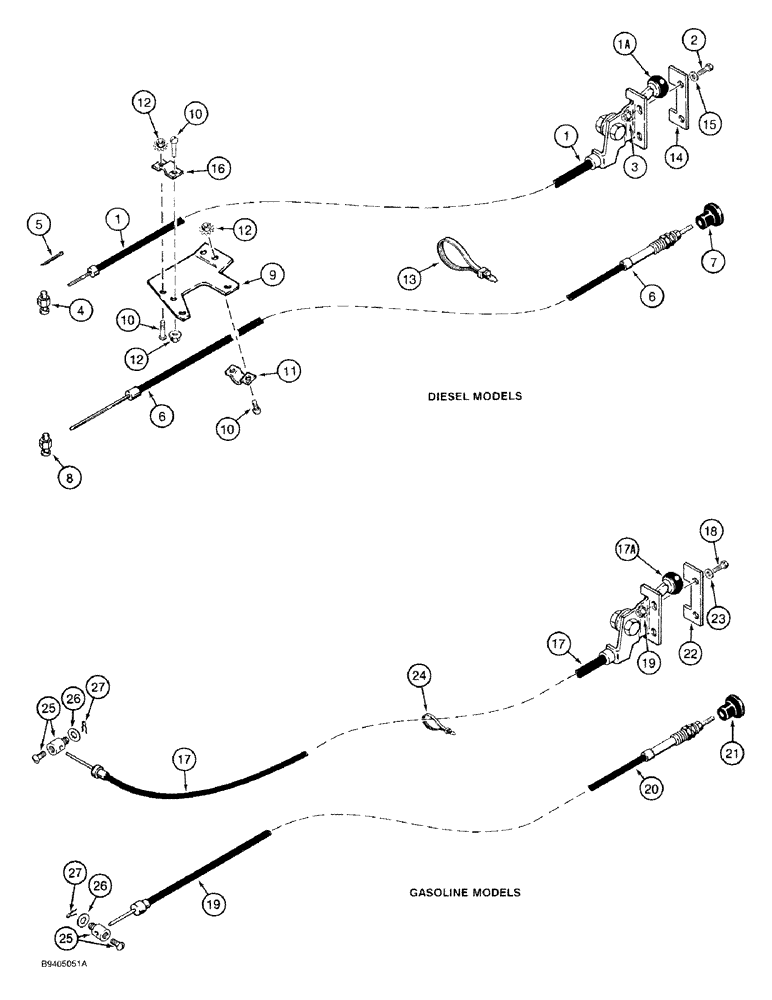

Запчасти Case IH 1818 (3-05A) - ENGINE CONTROLS, P.I.N. JAF0095713 AND AFTER (03) - FUEL SYSTEM

1

125091A1

CABLE

throttle control, individual components are not serviced separately, Includes: Ref. 1A, diesel models

1шт.

1a

H244434

KNOB

throttle control, diesel models

1шт.

2

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

machine, hex head, No. 10 NC x 5/8 inch, diesel models

2шт.

3

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT hex, with external tooth lock washer, No. 10 NC, diesel models

2шт.

4

D92852

PIVOT

RETAINER throttle control cable, diesel models

1шт.

5

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , Diesel models 3/32" x 1/2"

1шт.

6

104039A1

CABLE ASSY.

CABLE fuel shut off, diesel models

1шт.

7

D91273

KNOB

fuel shut off cable, diesel models

1шт.

8

L32208

CLAMP

RETAINER fuel shut off cable, diesel models

1шт.

9

125089A1

LARGE PLATE

PLATE cables, diesel models

1шт.

10

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch, diesel models

4шт.

11

D81500

CLAMP

cables to plate, diesel models

1шт.

12

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT hex, with external tooth lock washer, No. 10 NC, diesel models

4шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch, diesel models

1шт.

14

121831A1

LARGE PLATE

BRACKET throttle cable, diesel models

1шт.

15

495-31022

WASHER,#10

Diesel models #10

2шт.

16

351100C1

CLAMP

throttle cable, diesel models

1шт.

17

125091A1

CABLE

throttle control, individual components are not serviced separately, Includes: Ref. 17A, gasoline models

1шт.

Part of Throttle Kit, P/N 128701A1, see Figure 3-28.

1шт.

17a

H244434

KNOB

throttle control, gasoline models

1шт.

18

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

machine, hex, plated, No. 10 NC x 5/8 inch, gasoline models

2шт.

19

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT hex, with external tooth lock washer, No. 10 NC, gasoline models

2шт.

20

104040A1

CABLE

choke control, gasoline models

1шт.

21

D91274

KNOB

choke control cable, gasoline models

1шт.

22

121831A1

LARGE PLATE

BRACKET throttle cable, was P/N 127180A1, gasoline models

1шт.

Part of Throttle Kit, P/N 128701A1, see Figure 3-28.

1шт.

23

495-31022

WASHER,#10

Gasoline models #10

2шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch, gasoline models

1шт.

25

128703A1

BALL JOINT

SWIVEL cable, gasoline models

2шт.

Ref. 25 Swivel does not include the bolt. You will have to order 614-4008 separately.

1шт.

Part of Throttle Kit, P/N 128701A1, see Figure 3-28.

1шт.

26

1959087C1

WASHER

7/32 x 3/8" x 18 gauge, gasoline models

2шт.

Part of Throttle Kit, P/N 128701A1, see Figure 3-28.

1шт.

27

136-2

PIN, SPLIT (COTTER)

PIN retaining, gasoline models

2шт.

Part of Throttle Kit, P/N 128701A1, see Figure 3-28.

1шт.
