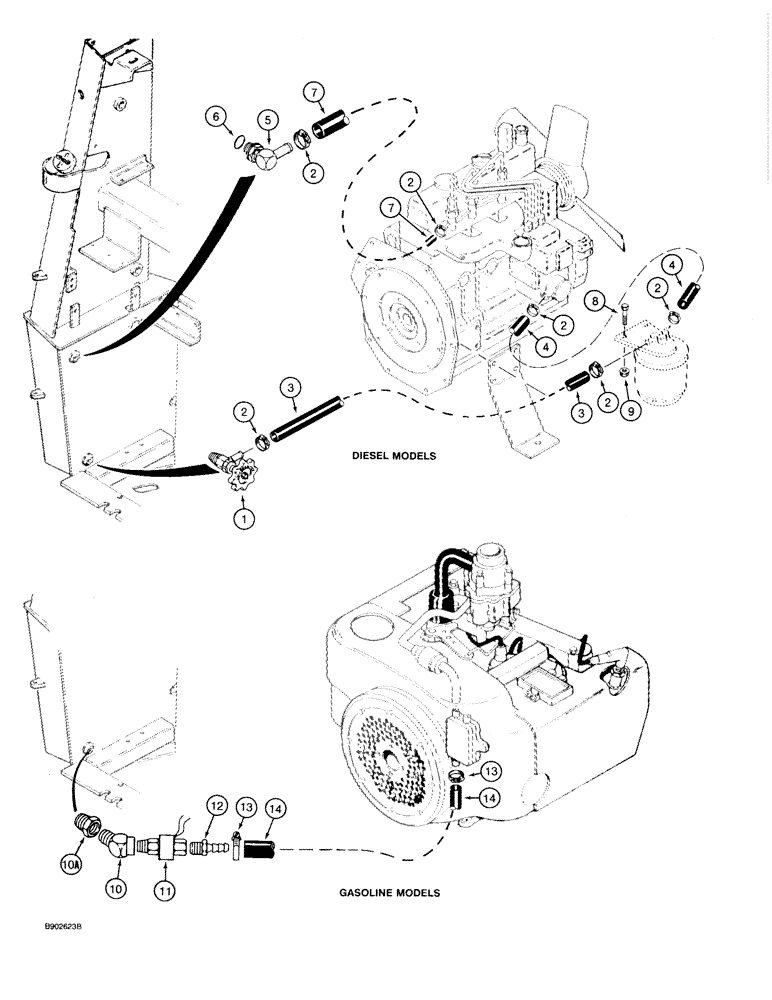

Запчасти Case IH 1818 (3-02) - FUEL LINES TO ENGINE (03) - FUEL SYSTEM

1

A154051

COCK, DRAIN

VALVE fuel shutoff, diesel models, was P/N H434805

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable, Diesel models #4, 0.25/0.62 Type M Worm

6шт.

3

D136266

HOSE,9.5 mm ID x 450.00 mm, SAE 30R7

Reservoir to Fuel Filter, Cut from P/N 1338159C1 Bulk Hose, See Below, Diesel Models 9.5 mm ID x 450.00 mm, SAE 30R7

1шт.

4

D136265

HOSE,9.5 mm ID x 350.00 mm, SAE 30R7

Fuel Filter to Engine, Cut from P/N 1338159C1 Bulk Hose, See Below, Diesel Models 9.5 mm ID x 350.00 mm, SAE 30R7

1шт.

5

217-369

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/2" - 20 Male ORB

ELBOW, 90 deg, 1/4 hose ID x 1/2-20 inch adj. O-ring boss, Includes: Ref. 6, diesel models

1шт.

7

E20175

FUEL HOSE

HOSE fuel return, 1/4 inch (6 mm) x 1/2 inch (13 mm) x 19 inch (480 mm), cut from P/N 1266772C1 bulk hose, see below, diesel models

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, diesel models

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC, diesel models

2шт.

10

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

45°, 1/4"-18 Female x 1/4"-18 Male, Gasoline models

1шт.

10a

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

pipe, 3/8 male x 1/4 inch female, gasoline models

1шт.

11

D139832

SOLENOID

fuel shutoff, gasoline models

1шт.

12

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

ADAPTER straight, 1/4 barb end x 1/8 inch PT, Gasoline models

1шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable, Gasoline models #4, 0.25/0.62 Type M Worm

2шт.

14

D64267

FUEL HOSE,0.25" ID x 31.00", SAE 30R7

Cut From P/N A21561 Bulk Hose, See Below, Gasoline Models Only 0.25" ID x 31.00", SAE 30R7

1шт.

1338159C1

HOSE

bulk hose, 3/8 inch (10 mm) x 5/8 inch (16 mm) x 100 ft (16480 mm), gasoline models

1шт.

1266772C1

HOSE

bulk hose, 1/4 inch (6 mm) x 1/2 inch (13 mm) x 40 inch (1016 mm), gasoline models

1шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk, Gasoline models

1шт.

6

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Diesel models

1шт.
