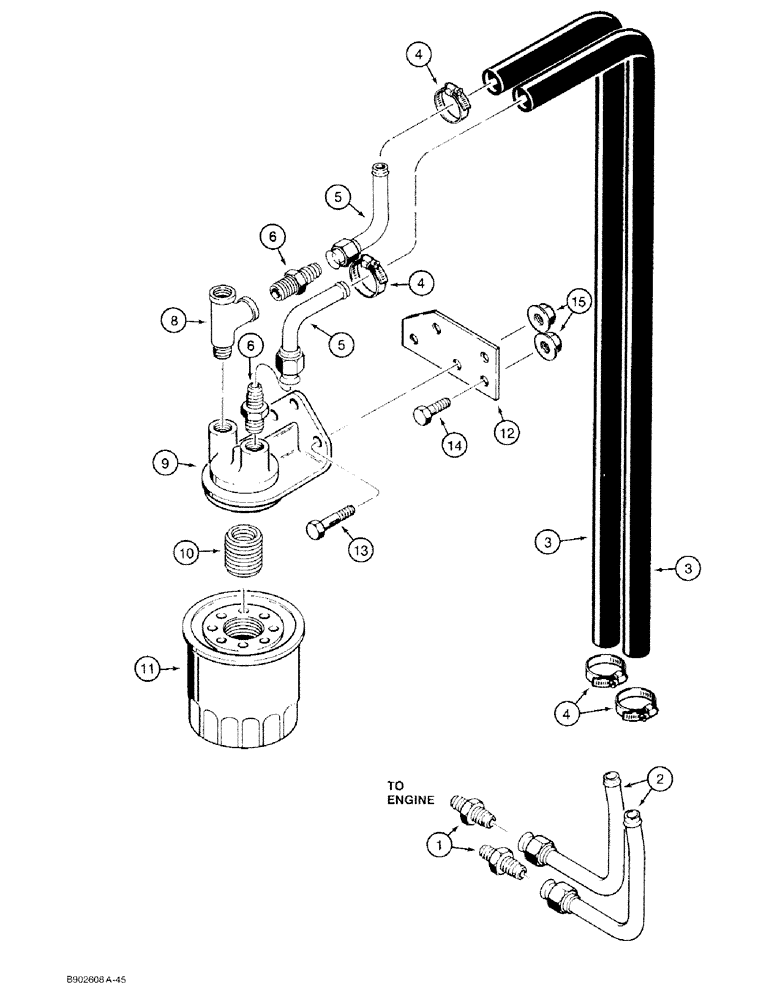

Запчасти Case IH 1818 (2-62) - ENGINE OIL FILTER AND LINES, GASOLINE MODELS ONLY (02) - ENGINE

1

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER straight, 3/4-16 flare x 1/4 inch PT

2шт.

2

D139864

PIPE

TUBE from engine

2шт.

3

L77718

HOSE

engine to filter, cut from from P/N S118466 bulk hose, 1/2 inch, 13 mm x 24 inch, 610 mm, see below

2шт.

4

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

4шт.

5

D93660

TUBE,0.5" OD x 2.4, 2.37" L

hose to filter adapter

2шт.

6

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER straight, 3/4-16 flare x 1/2 inch PT

2шт.

8

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

1/2 inch female PT branch x female PT x PT

1шт.

9

D120904

FITTING

HEAD filter, Includes: Ref. 10

1шт.

10

D120903

FITTING

NIPPLE filter attaching

1шт.

11

H436531

FILTER ASSY

FILTER engine oil

1шт.

12

D139436

PLATE

mounting

1шт.

13

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

3шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

5шт.

S118466

HOSE,0.50" ID x 300.00"

0.50" ID x 300.00"

1шт.
