Запчасти Case IH 1818 (2-56) - REMOTE AIR CLEANER AND ADAPTER, GASOLINE MODELS (02) - ENGINE

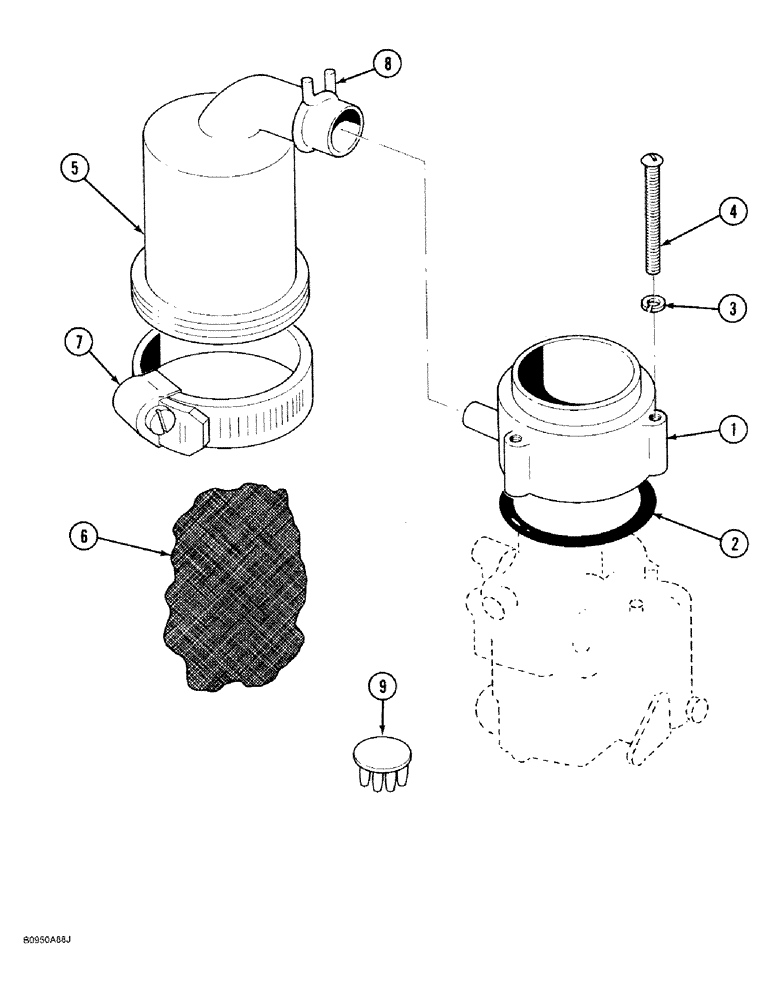

Схема запчастей Case IH 1818 - (2-56) - REMOTE AIR CLEANER AND ADAPTER, GASOLINE MODELS (02) - ENGINE
7
2
9
5
6
1
4
8
3

Артикул

Название

Примечание

Количество

1

N7445

RING

ADAPTER air cleaner, Serial Range: hose-carburetor

1шт.

2

N7444

O-RING

SEAL adapter

1шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

4

174-216

SCREW,Sl Rnd Hd, #10 - 32 x 1 1/8"

machine, round head

3шт.

5

N7447

TUBE,2.12" L

breather

1шт.

6

N7448

TUBE,1" DIA x 4" L

FILTER breather tube

1шт.

7

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Breather tube base #20, 0.81/1.75 Type F Worm

1шт.

8

214-1712

HOSE CLAMP,17.53mm - 31.75mm

CLAMP breather tube to adapter, was P/N N7446

1шт.

9

1959082C1

PLUG

button, blower housing air hole

1шт.

232803A1

BRACKET

for P/N 1998814C2 engine

1шт.

232804A1

GROMMET

rubber, for P/N 1998814C2 engine

1шт.

Выбрано товаров: 11
