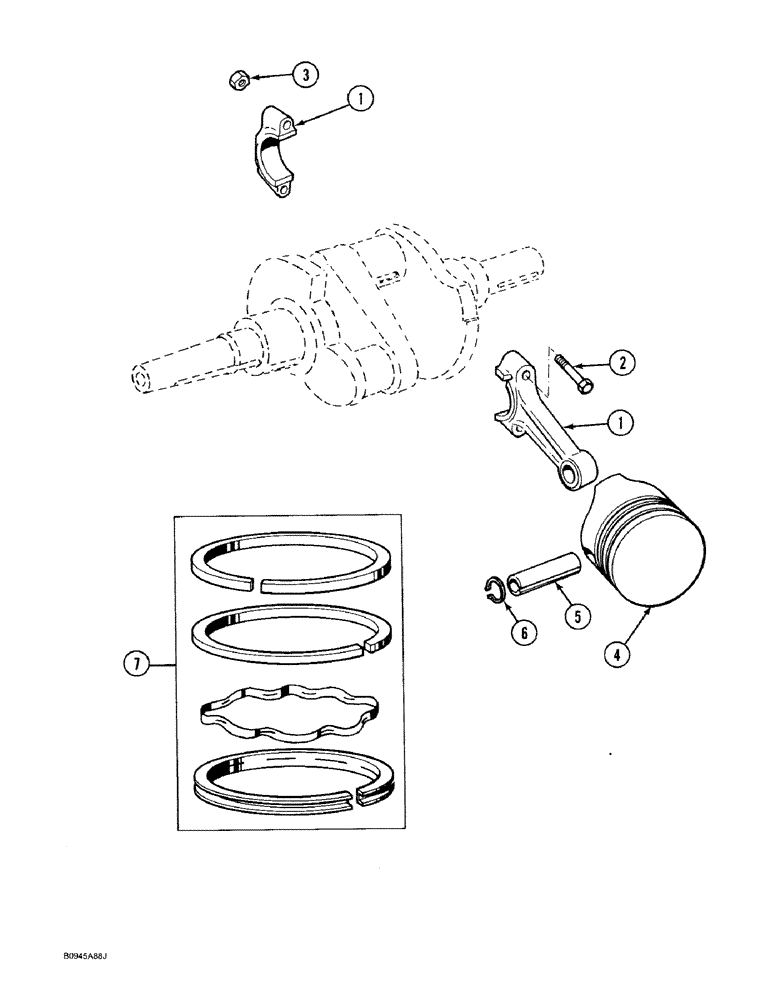

Запчасти Case IH 1818 (2-46) - PISTON AND CONNECTING ROD, GASOLINE MODELS (02) - ENGINE

77072C91

ROD, CONNECTING

ROD ASSEMBLY connecting, standard

2шт.

77073C91

ROD, CONNECTING

ROD ASSEMBLY connecting, .010 inch undersize

2шт.

77074C91

ROD, CONNECTING

ROD ASSEMBLY connecting, .020 inch undersize

2шт.

77075C91

ROD, CONNECTING

ROD ASSEMBLY connecting, .030 inch undersize, Includes: Ref. 1-3

2шт.

1

NSS

NOT SOLD SEPARAT

ROD order correct rod assembly above

1шт.

2

1959021C1

CAPSCREW,1.88" L

BOLT connecting rod, special

4шт.

3

1959022C1

NUT

hex, crown lock, 5/16 inch

4шт.

N9634

PISTON ASSY.

PISTON ASSEMBLY standard size

2шт.

Old Style ,This item has compression ring groove width of .080 inch, 2.0 mm, and oil ring groove width of .189 inch, 4.8 mm.

1шт.

115841A1

PISTON ASSY.

PISTON ASSEMBLY standard size

2шт.

New Style, This item has compression ring groove width of .067 inch, 1.6 mm, and oil ring groove width of .1198 inch, 3.2 mm.

1шт.

N9635

PISTON ASSY.

PISTON ASSEMBLY, .005 inch, 0.13 mm, oversize

2шт.

Old Style ,This item has compression ring groove width of .080 inch, 2.0 mm, and oil ring groove width of .189 inch, 4.8 mm.

1шт.

115058A1

PISTON ASSY.

PISTON ASSEMBLY, .005 inch, 0.13 mm, oversize

2шт.

New Style, This item has compression ring groove width of .067 inch, 1.6 mm, and oil ring groove width of .1198 inch, 3.2 mm.

1шт.

N9650

PISTON ASSY.

PISTON ASSEMBLY, .010 inch, 0.26 mm, oversize

2шт.

Old Style ,This item has compression ring groove width of .080 inch, 2.0 mm, and oil ring groove width of .189 inch, 4.8 mm.

1шт.

115059A1

PISTON ASSY.

PISTON ASSEMBLY, .010 inch, 0.26 mm, oversize

2шт.

New Style, This item has compression ring groove width of .067 inch, 1.6 mm, and oil ring groove width of .1198 inch, 3.2 mm.

1шт.

N9651

PISTON ASSY.

PISTON ASSEMBLY, .020 inch, 0.50 mm, oversize

2шт.

Old Style ,This item has compression ring groove width of .080 inch, 2.0 mm, and oil ring groove width of .189 inch, 4.8 mm.

1шт.

115061A1

PISTON ASSY.

PISTON ASSEMBLY, .020 inch, 0.50 mm, oversize

2шт.

New Style, This item has compression ring groove width of .067 inch, 1.6 mm, and oil ring groove width of .1198 inch, 3.2 mm.

1шт.

N9652

PISTON ASSY.

PISTON ASSEMBLY, .030 inch, 0.76 mm, oversize

2шт.

Old Style ,This item has compression ring groove width of .080 inch, 2.0 mm, and oil ring groove width of .189 inch, 4.8 mm.

1шт.

115063A1

PISTON ASSY.

PISTON ASSEMBLY, .030 inch, 0.76 mm, oversize

2шт.

New Style, This item has compression ring groove width of .067 inch, 1.6 mm, and oil ring groove width of .1198 inch, 3.2 mm.

1шт.

N9653

PISTON ASSY.

PISTON ASSEMBLY, .040 inch, 1.02 mm, oversize, no longer available when stock is exhausted and no new style replacement available, Includes: Ref. 4-7

2шт.

Old Style ,This item has compression ring groove width of .080 inch, 2.0 mm, and oil ring groove width of .189 inch, 4.8 mm.

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON order correct assembly above

1шт.

5

N9555

PISTON PIN

2шт.

6

N9556

RING, SNAP

RING piston pin retaining

4шт.

7

N9636

PISTON RING SET

RING piston, set, standard size

2шт.

Old Style ,This item has compression ring groove width of .080 inch, 2.0 mm, and oil ring groove width of .189 inch, 4.8 mm.

1шт.

7

115836A1

PISTON RING SET

RING piston, set, standard size

2шт.

New Style, This item has compression ring groove width of .067 inch, 1.6 mm, and oil ring groove width of .1198 inch, 3.2 mm.

1шт.

7

N9637

PISTON RING SET

RING piston, set, .005 inch, 0.13 mm, oversize

2шт.

Old Style ,This item has compression ring groove width of .080 inch, 2.0 mm, and oil ring groove width of .189 inch, 4.8 mm.

1шт.

7

115837A1

PISTON RING SET

RING piston, set, .005 inch, 0.13 mm, oversize

2шт.

New Style, This item has compression ring groove width of .067 inch, 1.6 mm, and oil ring groove width of .1198 inch, 3.2 mm.

1шт.

7

N9638

PISTON RING SET

RING piston, set, .010 inch, 0.26 mm, oversize

2шт.

Old Style ,This item has compression ring groove width of .080 inch, 2.0 mm, and oil ring groove width of .189 inch, 4.8 mm.

1шт.

7

115838A1

PISTON RING SET

RING piston, set, .010 inch, 0.26 mm, oversize

2шт.

New Style, This item has compression ring groove width of .067 inch, 1.6 mm, and oil ring groove width of .1198 inch, 3.2 mm.

1шт.

7

N9639

PISTON RING SET

RING piston, set, .020 inch, 0.50 mm, oversize

2шт.

Old Style ,This item has compression ring groove width of .080 inch, 2.0 mm, and oil ring groove width of .189 inch, 4.8 mm.

1шт.

7

115839A1

PISTON RING SET

RING piston, set, .020 inch, 0.50 mm, oversize

2шт.

New Style, This item has compression ring groove width of .067 inch, 1.6 mm, and oil ring groove width of .1198 inch, 3.2 mm.

1шт.

7

N9640

PISTON RING SET

RING piston, set, .030 inch, 0.76 mm, oversize

2шт.

Old Style ,This item has compression ring groove width of .080 inch, 2.0 mm, and oil ring groove width of .189 inch, 4.8 mm.

1шт.

7

115840A1

PISTON RING SET

RING piston, set, .030 inch, 0.76 mm, oversize

2шт.

New Style, This item has compression ring groove width of .067 inch, 1.6 mm, and oil ring groove width of .1198 inch, 3.2 mm.

1шт.

7

N9641

PISTON RING SET

RING piston, set, .040 inch 1.02 mm, oversize, no longer available when stock is exhausted and no new style replacement available

2шт.

Old Style ,This item has compression ring groove width of .080 inch, 2.0 mm, and oil ring groove width of .189 inch, 4.8 mm.

1шт.
