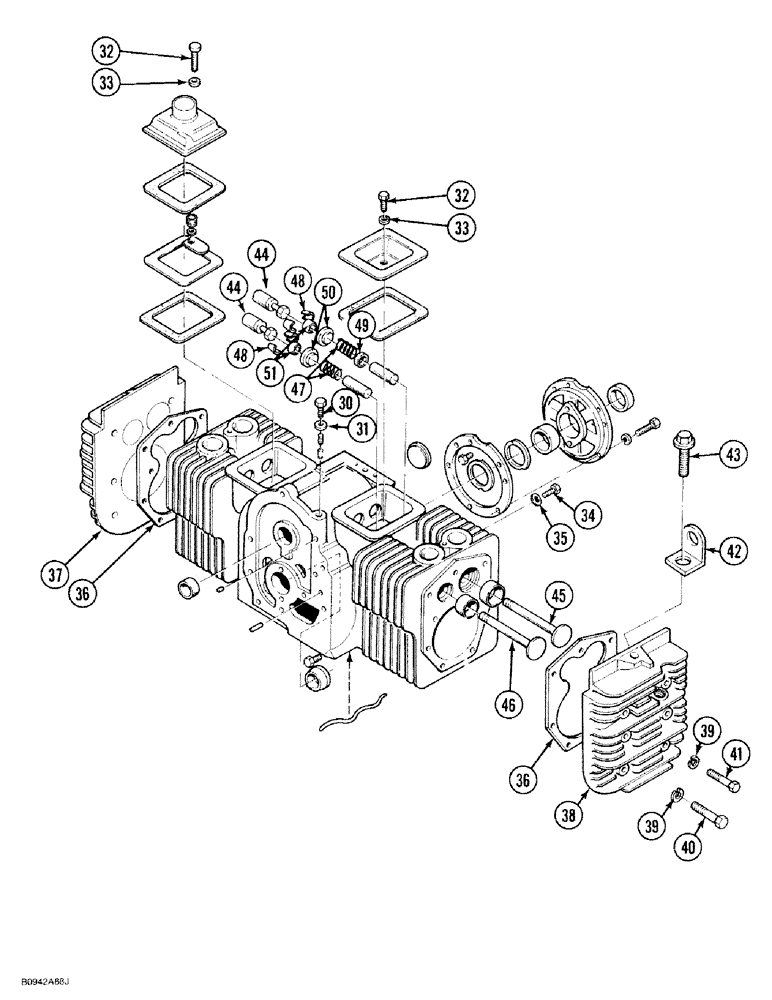

Запчасти Case IH 1818 (2-40) - CYLINDER BLOCK, GASOLINE MODELS (02) - ENGINE

30

414-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

hex, 3/8 NF x 7/8 inch

1шт.

31

N9614

WASHER

copper, 29/64 x 9/16 x 1/16 inch

1шт.

32

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

hex, 1/4 NC x 1-3/4 inch

2шт.

33

N9560

WASHER

copper, 17/64 x 7/16 x 1/32

2шт.

34

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

Replaced by 232798A1 Stud

1шт.

35

N9614

WASHER

copper, 29/64 x 9/16 x 1/16 inch

2шт.

Replaced by 232798A1 Stud

1шт.

36

N7478

GASKET

exhaust manifold, Replaces: P/N 1959119C1

2шт.

37

1959012C1

HEAD (CYLINDER)

HEAD cylinder, left hand

1шт.

38

1959013C1

HEAD (CYLINDER)

HEAD cylinder, right hand

1шт.

39

N9561

WASHER

special, cylinder head bolts

18шт.

40

1959015C1

CAPSCREW,Hex, 5/16" x 2 3/8", Gr 8

BOLT hex, special, 2-3/8 inch long

10шт.

41

1959016C1

CAPSCREW,Hex, 5/16" x 2", Gr 8

BOLT hex, special, 2 inch long

8шт.

42

1959018C1

BRACKET

lifting

2шт.

43

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

2шт.

44

N9573

TAPPET

valve, standard size

4шт.

44

N9613

TAPPET

valve, 0.002 inch, 0.06 mm, oversize

4шт.

44

N9574

TAPPET

valve, 0.005 inch, 0.13 mm, oversize

4шт.

45

1959007C1

VALVE,ENGINE,INLET,S

VALVE intake

2шт.

46

1959008C1

VALVE, ENG EXHAUST,

VALVE exhaust

2шт.

47

1959009C1

SPRING

valve

4шт.

48

1959010C1

VALVE POPPET

KEEPER valve

8шт.

49

1959011C1

SEAL

valve stem, intake

2шт.

50

1959014C1

SPRING CUP

RETAINER valve spring

4шт.

51

1959017C1

BUSHING

CAP valve

4шт.

52

1959019C1

GASKET KIT

KIT gasket, engine complete, not shown

1шт.

52

1959020C1

GASKET KIT

KIT gasket, valve grind, carbon removal, not shown

1шт.
