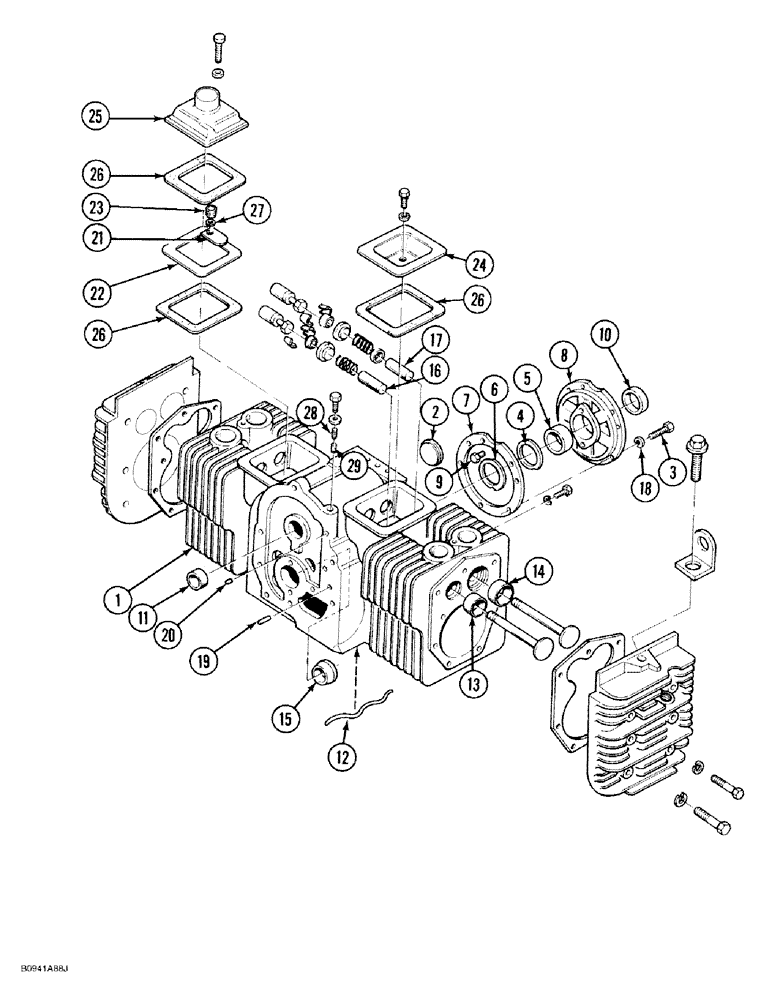

Запчасти Case IH 1818 (2-38) - CYLINDER BLOCK, GASOLINE MODELS (02) - ENGINE

1959000C1

ENGINE ASSEMBLY

BLOCK ASSEMBLY cylinder, order P/N 1959112C3, Includes: Ref. 1-20

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK cylinder, order P/N 1959000C1 block assembly

1шт.

2

41-26

PLUG

expansion, 1-5/8 inch

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

5шт.

4

N9564

WASHER

SHIM main bearing

1шт.

5

N9619

CRANKSHAFT BEARING

BEARING main, plate end, standard size

1шт.

5

N9620

CRANKSHAFT BEARING

BEARING main, plate end, 0.002 inch, 0.06 mm, undersize

1шт.

5

N9621

CRANKSHAFT BEARING

BEARING main, plate end, 0.010 inch, 0.26 mm, undersize

1шт.

5

N9622

CRANKSHAFT BEARING

BEARING main, plate end, 0.020 inch, 0.50 mm, undersize

1шт.

5

N9623

CRANKSHAFT BEARING

BEARING main, plate end, 0.030 inch, 0.76 mm, undersize

1шт.

6

N9566

WASHER

thrust

2шт.

7

232796A1

GASKET

plate to block, Replaces: P/N 1349064C1

1шт.

8

N9568

LARGE PLATE

PLATE crankshaft bearing

1шт.

9

N9571

SCREW,#8 x 11/32"

drive, bearing stop

4шт.

10

N9570

OIL SEAL

oil, crankshaft, rear

1шт.

11

N9569

CAMSHAFT BEARING,1.50" OD x 0.31"

BEARING camshaft

2шт.

12

232797A1

PIPE

LINE oil transfer, cylinder block, Replaces: P/N N9643

1шт.

13

N7392

SEAT, VALVE

INSERT exhaust valve seat, standard size

2шт.

13

N7393

BUSHING

INSERT exhaust valve seat, 0.002 inch, 0.06 mm, oversize

2шт.

13

N7394

BUSHING

INSERT exhaust valve seat, 0.005 inch, 0.13 mm, oversize

2шт.

13

N7395

BUSHING

INSERT exhaust vave seat, 0.010 inch, 0.26 mm, oversize

2шт.

13

N7396

BUSHING

INSERT exhaust valve seat, 0.025 inch, 0.64 mm, oversize

2шт.

14

N9576

SEAT, VALVE

INSERT intake valve seat, standard size

2шт.

14

N9577

BUSHING

INSERT intake valve seat, 0.002 inch, 0.06 mm, oversize

2шт.

14

N9578

SEAT, VALVE

INSERT intake valve seat, 0.005 inch, 0.13 mm, oversize

2шт.

14

N9579

BUSHING

INSERT intake valve seat, 0.010 inch, 0.26 mm, oversize

2шт.

14

N9580

BUSHING

INSERT intake valve seat, 0.025 inch, 0.64 mm, oversize

2шт.

15

N9584

CRANKSHAFT BEARING

BEARING main, flywheel end, standard size

1шт.

15

N9585

CRANKSHAFT BEARING

BEARING main, flywheel end, 0.002 inch, 0.06 mm, undersize

1шт.

15

N9586

CRANKSHAFT BEARING

BEARING main, flywheel end, 0.010 inch, 0.26 mm, undersize

1шт.

15

N9587

CRANKSHAFT BEARING

BEARING main, flywheel end, 0.020 inch, 0.50 mm, undersize

1шт.

15

N9588

CRANKSHAFT BEARING

BEARING main, flywheel end, 0.030 inch, 0.76 mm, undersize

1шт.

16

1959004C1

GUIDE

valve, exhaust

2шт.

17

1959006C1

GUIDE

valve, intake

2шт.

18

492-11038

LOCK WASHER,3/8"

5шт.

19

N7398

PIN

gear cover, alignment

2шт.

20

N7405

PLUG

core hole

1шт.

21

N9558

VALVE POPPET

VALVE breather

1шт.

22

N9559

SHEET

BAFFLE left hand valve cover

1шт.

23

N9557

SPRING

breather valve

1шт.

24

N9562

COVER

valve, right hand

1шт.

25

232813A1

COVER

valve, left hand, Replaces: P/N N9644

1шт.

26

N9563

GASKET

valve cover

3шт.

27

195-517

WASHER,1/4"

flat, 17/64 inch

1шт.

28

N9598

SPRING

bypass valve

1шт.

29

N9599

PIN

POPPET bypass valve

1шт.

1998814C2

ENGINE ASSEMBLY

ENGINE complete, gasoline, Replaces: P/N A173767 and P/N 1998814C1

1шт.

1959112C3

SKELETON ENGINE

ENGINE short, was P/N 1959112C1

1шт.
