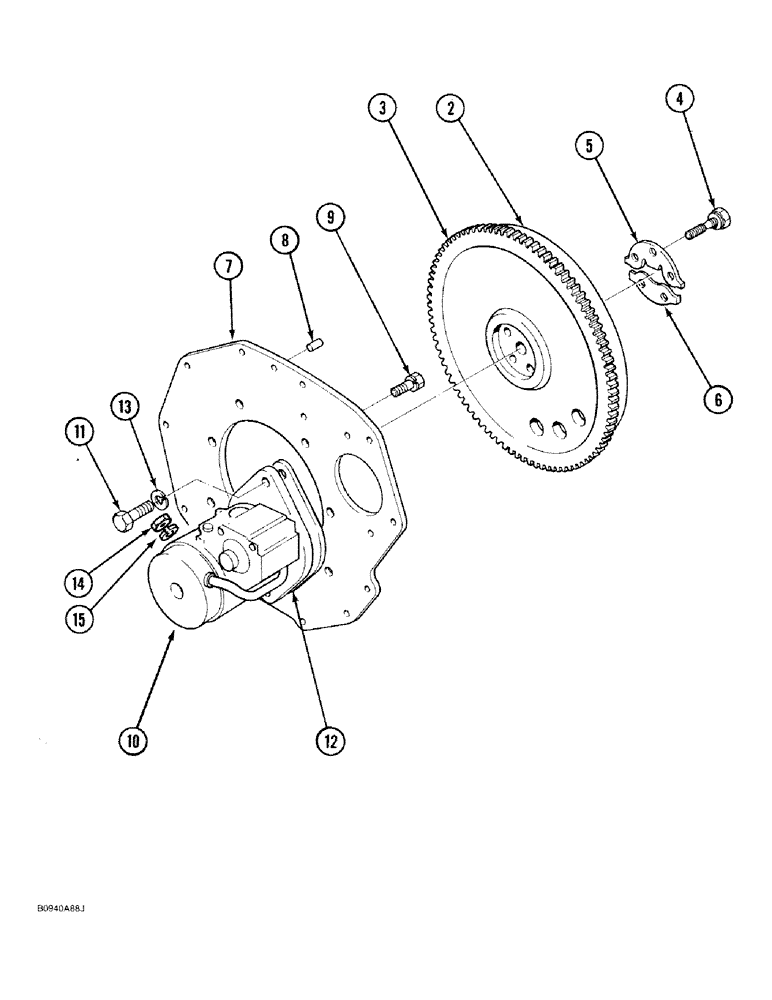

Запчасти Case IH 1818 (2-36) - FLYWHEEL AND STARTER MOTOR, DIESEL MODELS (02) - ENGINE

1959368C1

FLYWHEEL

ASSEMBLY, crankshaft, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

FLYWHEEL order P/N 1959368C1 flywheel assembly

1шт.

3

1959370C1

GEAR

ring

1шт.

4

1959373C1

BOLT

flywheel, 10 x 29.5 mm

5шт.

5

1959375C1

WASHER

PLATE flywheel, three bolt hole pattern

1шт.

6

1959376C1

WASHER

PLATE flywheel, two bolt hole pattern

1шт.

7

1959378C1

PLATE

flywheel cover

1шт.

8

1959130C1

PIN

straight

1шт.

9

1959379C1

BOLT

BOLT flywheel cover plate, 10 x 25 mm

8шт.

10

1959380C1

STARTING MOTOR

STARTER ASSEMBLY engine, parts list Figure 4-6

1шт.

11

1959381C1

BOLT

starter motor

2шт.

12

1959383C1

GASKET

starter

1шт.

13

1959171C1

SPRING WASHER

lock

2шт.

14

1959269C1

NUT

10 mm

1шт.

15

1959171C1

SPRING WASHER

lock

1шт.
