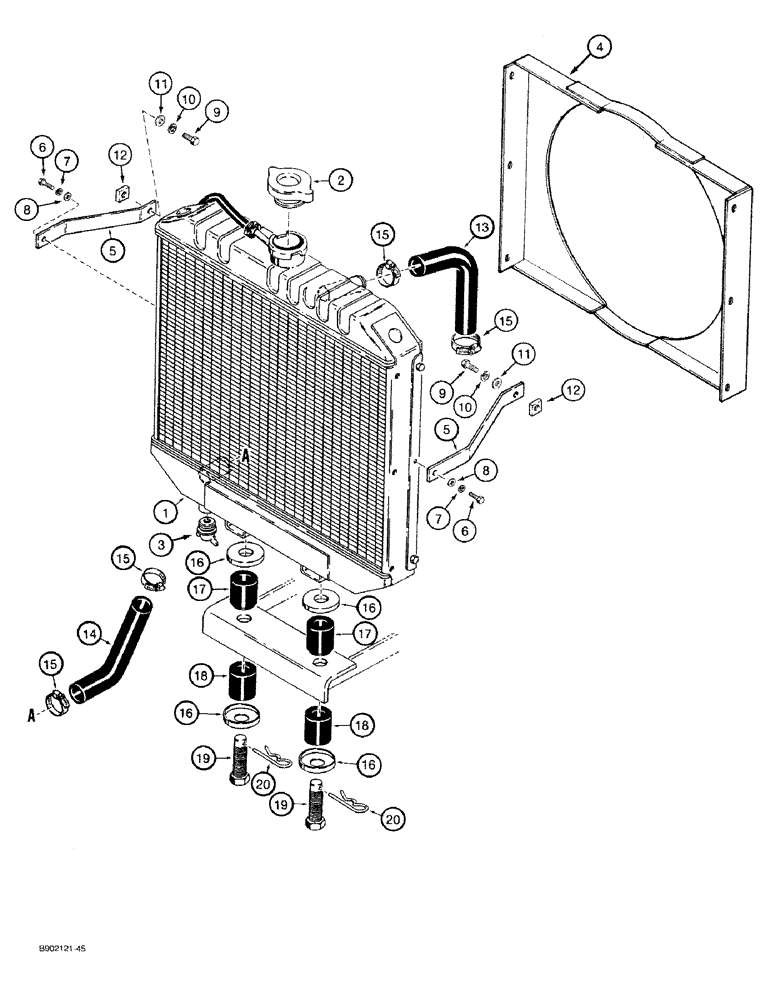

Запчасти Case IH 1818 (2-02) - RADIATOR, DIESEL MODELS (02) - ENGINE

1

A173836

RADIATOR

ASSEMBLY engine cooling, Includes: Ref. 2-4

1шт.

Part of radiator kit P/N H674538

1шт.

2

A184964

FILLER CAP

CAP radiator

1шт.

3

A184965

COCK, DRAIN

VALVE drain

1шт.

4

128780A1

SHROUD

fan, was P/N A184942

1шт.

5

H437481

SUPPORT

BRACE radiator support

2шт.

6

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

H426767

WASHER

flat, hardened, 1/4 inch

2шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

H426775

WASHER

flat, hardened

2шт.

12

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC

2шт.

13

A173838

RADIATOR HOSE,25.00 mm ID x 126.00 mm, SAE 20R4 CLASS C, PER SAE J20

25.00 mm ID, SAE 20R4 per SAE J20, Upper

1шт.

14

A173839

PIPE

HOSE lower, radiator

1шт.

Part of radiator kit P/N H674538

1шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

4шт.

16

1959244C1

CUP WASHER

special

4шт.

Part of radiator kit P/N H674538

1шт.

17

1959242C1

HITCH DAMPER

INSULATOR rubber, upper

2шт.

Part of radiator kit P/N H674538

1шт.

18

1959243C1

HITCH DAMPER

INSULATOR rubber, lower

2шт.

Part of radiator kit P/N H674538

1шт.

19

1959241C1

BOLT

special, radiator mounting

2шт.

Part of radiator kit P/N H674538

1шт.

20

1959245C1

LINCH PIN

PIN hair, bolt

2шт.

Part of radiator kit P/N H674538

1шт.

H674538

SET

KIT radiator, Includes: Ref. 1, 14 & 16-20

1шт.
